    Fishing Rod Automatic Liquid Water Sand Blasting Machine

    Dongguan Humen Meijun Sandblasting Equipment Store specializes in the production of professional sandblasting machine equipment in the industry, automatic liquid water for fishing rods surface treatment

    Such as matte treatment, film removal and wax removal, matting treatment, passivation treatment, frosted treatment, surface strengthening, stress treatment, etc.

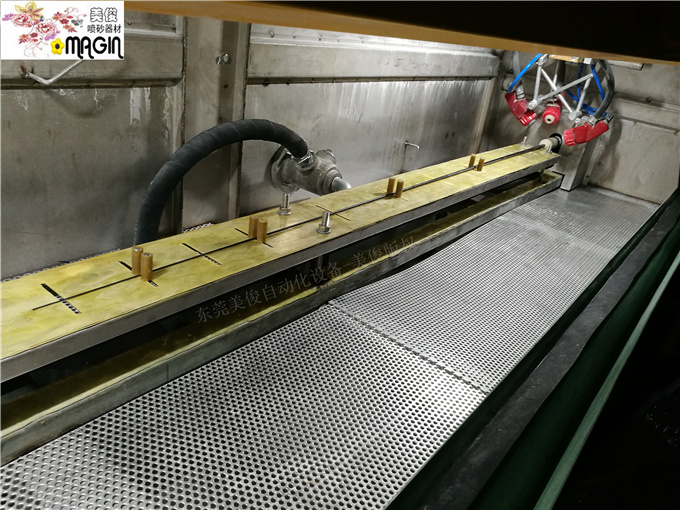

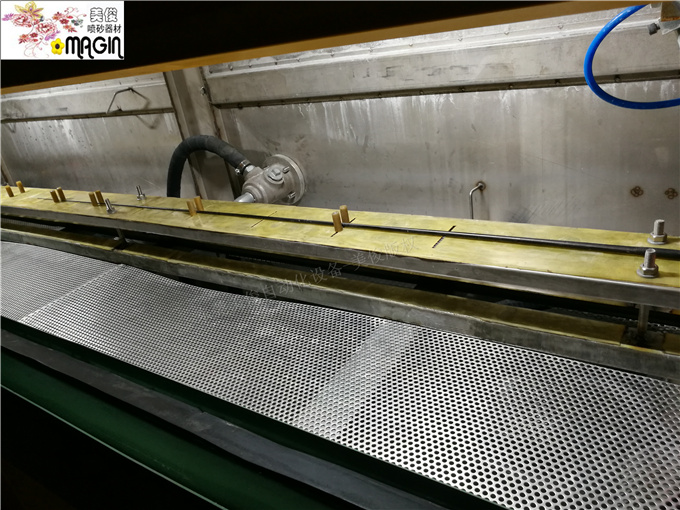

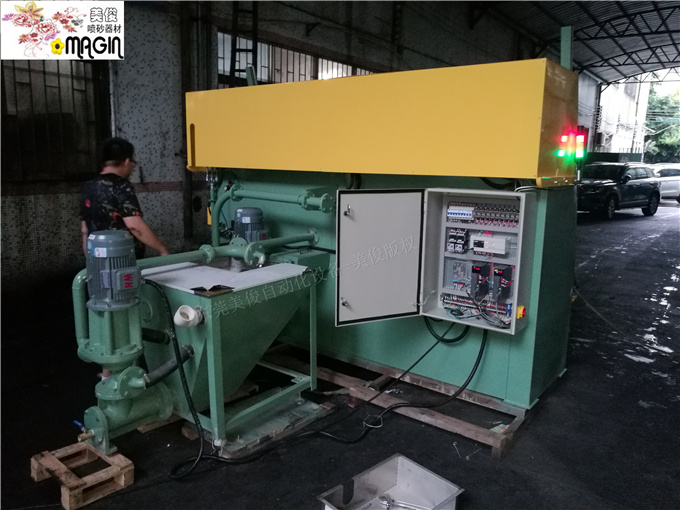

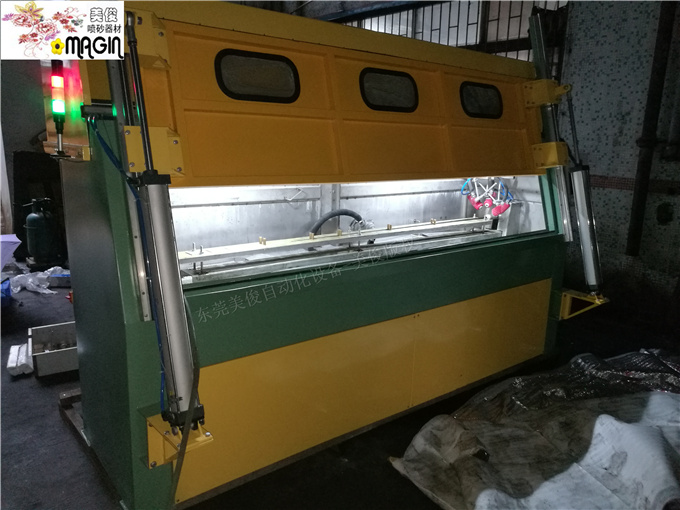

    The fishing rod automatic liquid water sandblasting body is made of whole body 304 stainless steel, 4kw water sandblasting pump hybrid power system, ≤0.8kg compressed air, and cooperates with PLC programmer to control the automatic reciprocating sandblasting of the fishing rod. The precise water sandblasting is delicate and efficient.

    Fishing rod water sandblasting machine features:

    1. The total length of the fishing rod can be sprayed to 3.5 meters.

    2. The length and width of sandblasting can be set.

    3. The number of sandblasting can be set.

    4. The whole root can be sandblasted, and it can also be sandblasted in sections.

    5. The speed of sandblasting stroke can be adjusted by frequency.

    6. The fishing rod can rotate forward and reverse for sandblasting, the speed of rotary sandblasting can be adjusted, and the sandblasting pressure can be controlled.

    7. 400-2000# mesh fine powder abrasive can be selected for sandblasting.

    8. Optional 1-6 sandblasting guns

    9. 1-3 fishing rods can be used for sandblasting at the same time

    Application of liquid automatic water sandblasting machine: surface treatment of glass fiber reinforced plastic, carbon fiber products, jewelry, glasses, stainless steel, clocks and watches, computer shells, mobile phone shells, camera shells, handicrafts, furniture, glass lenses, carbon ceramic products, steel plates and electronic panel products Surface treatment. (Deburring, surface fogging, matte texture, scratch cleaning, dirt cleaning, rust removal and renovation, film removal and wax removal, stress relief).

    Water sandblasting machine, liquid sandblasting machine, dust-free sandblasting machine, wet sandblasting machine, automatic water sandblasting machine, environmental protection sandblasting machine, water sandblasting machine.

    Main technical parameters of liquid automatic water sandblasting machine:

    1. External dimensions of the host (non-standard can be customized): length 1800-5000mm, width 1500-4000mm, height 1600-2500mm

    2. Cabin size: length 1000-3500mm, width 800-2000mm, height 1000-1500mm

    3. Transmission width size: set according to the machine

    4. Transmission speed: 150-2000 (mm) frequency converter adjustment control

    5. Number of spray guns: 1-12 (B-type spray gun) Nozzle diameter: 6-12mm

    6. Sandblasting moving method: horizontal moving method

    7. Machine noise: ≤65dB

    8. Operating temperature range: 0°~45°

    9. Weight: 1-80(kg)

    10. Compressed air source: 4-7.5bar(kg/m2) Flow: 8-12m3/min

    11. Conveying motor: 380V 750W 50HZ, feeding motor: 7.5kw, stirring motor: 4kw

    12. Total power: 12.5KW (excluding air compressor power) Power supply: 380V 50HZ three-phase five-wire system

    13. Air compressor power: 22kw50P, plus air storage tank, which can support 1-6 sandblasting guns
