For friends who want to find the model of mold sandblasting machine or want to buy hardware mold sandblasting machine equipment, it is a good choice to come to Dongguan Meijun Sandblasting Machinery Equipment Manufacturing Factory. Reliable quality, large/medium/small mold sandblasting machines are all available. We can provide sandblasting machinery for you to sample for free, sandblasting the effect of hardware molds and do not charge any fees. You are welcome to call our company for consultation and business negotiations!

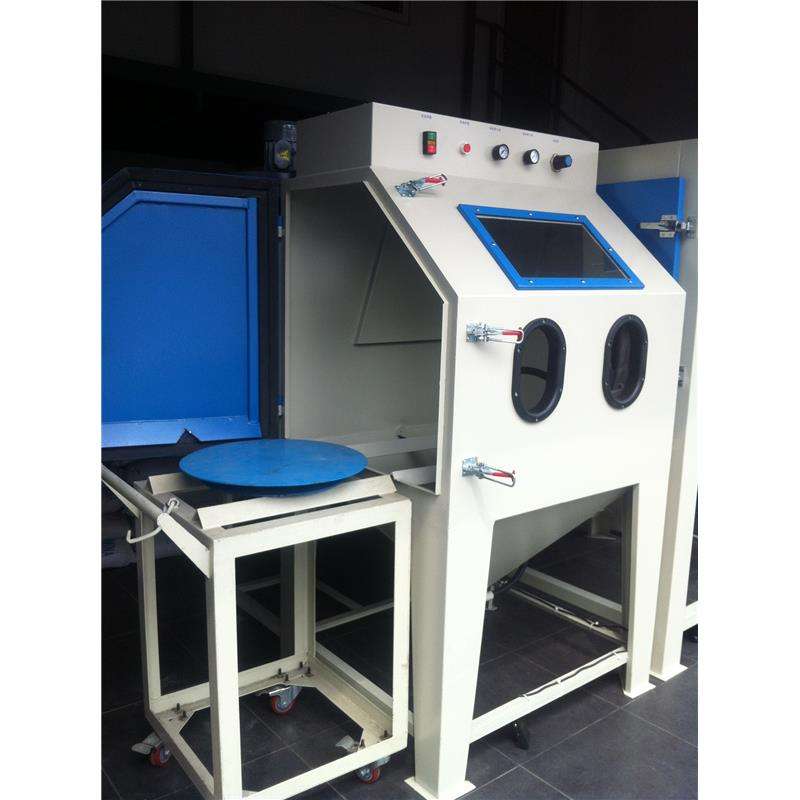

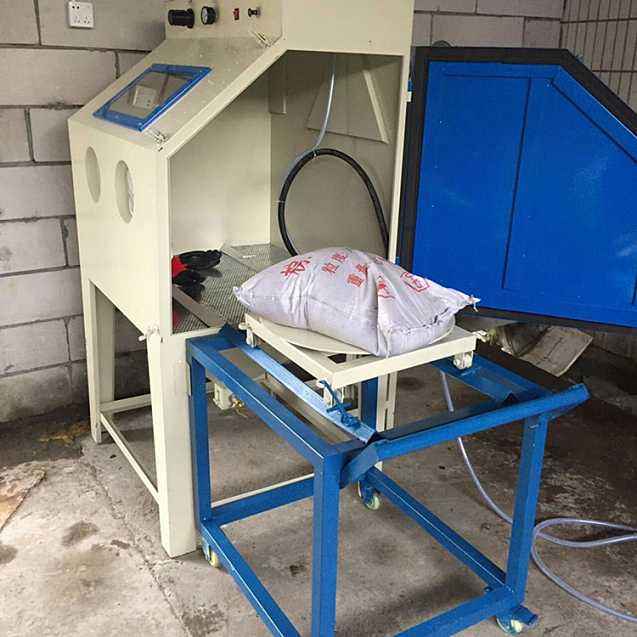

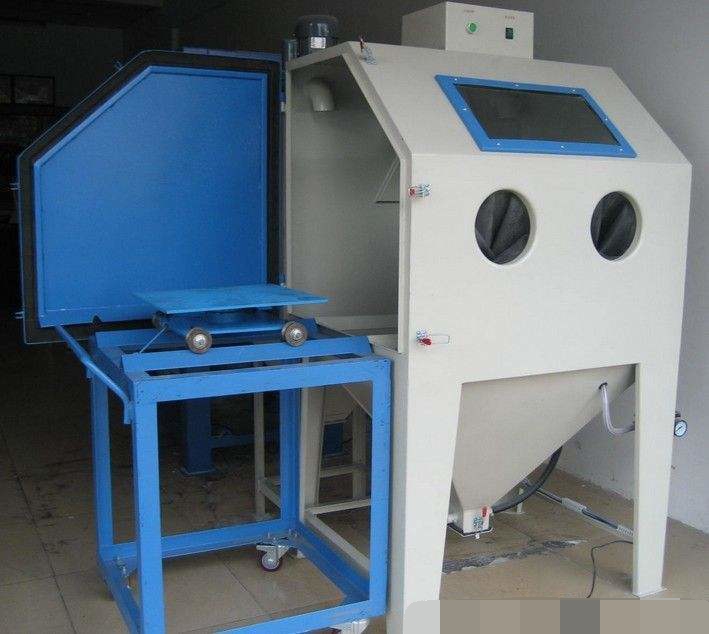

Features of this mold blasting machine:
1. This type of machine is a special machine designed for molds or large, heavy and special-shaped workpieces.
2. Install the movable trolley and turntable. During operation, you only need to put the workpiece on the trolley turntable, and then push it into the machine to perform sandblasting operations. It is very simple and labor-saving, and the trolley can be pushed and walked in the workshop.
3. Meijun can customize the turntable to rotate 360 degrees according to the size, weight and shape of the workpiece provided by the customer, and an electric speed-adjustable turntable can be installed to speed up the processing speed and control the blasting quality more easily. The cylinder can be used to open the door to facilitate the entry and exit of the workpiece.
4. The window is made of tempered glass, with a layer of ordinary glass on the inside, which is very convenient and quick to replace, and the line of sight is very clear.
Mould blasting machine parameters:
MJ-1010F Cart with Turntable Mould Sandblasting Machinery
Quantity: 1
Equipment dimensions: length 1200mm width 1200mm height 1750mm
Equipment studio size: length 1000mm width 1000mm height 800mm
Dimensions of the dust collector: length 800mm width 800mm height 1680mm
Dust removal method: pulse dust removal, airflow control.
Dust removal fan: 0.55KW 220V 50HZ
Manual turntable (1): Ø600mm
Separator size: 850 high * 300 diameter
Lighting: 2 20w fluorescent lamps
Number of guns: 1 (aluminum alloy with boron carbide nozzle)
Shell: 2.5mm cold rolled steel plate welded
Perspective window: 1 frame
Sand Bucket: 1
Foot switch: 1
Workbench openings: 2, a total of 1 pair of gloves
Door: side door 760mm high*800mm wide
The air pressure is greater than: 5-7bar (kg/cm2) (the air compressor is about 1 cubic meter of the demand side equipment)
Working turntable effective weight: 150kg
Total power: about 0.85KW
Total weight: about 1.5 tons
Mould blasting machine application scope:
Used for cleaning mold sandblasting, mold base sandblasting, plastic mold sandblasting, hardware mold sandblasting, forging mold sandblasting, stamping mold sandblasting, corrosion mold sandblasting, sunburst, mold surface repair sandblasting, vacuum mold blasting Sand, plastic mold sandblasting. Remove the mold oxide skin, remove the knife grain sandblasting after CNCA processing on the surface of aluminum product moulds, and make the surface of the injected product directly copy the sand pattern on the mould after sandblasting of the injection mould, so that you do not need to sandblast your plastic products.
Die blasting machine is full-featured and multi-purpose:
1. Carving and spraying processing of tiles, tiles, ceramics and stone tablets.
2. The rough surface of metal mold guide tool guide sleeve, mold pin, template workpiece, rust removal, oil removal, scale removal, burr removal, can also be used for spraying, electroplating pretreatment process, in order to improve the adhesion of the coating (plating) layer surface. Focus and all surface treatments.
3. It is more suitable for sandblasting of large, large and heavy workpieces: such as sandblasting of various medical molds, computer shell molds, plastic molds, automobile molds, gravity pressure molds and other large workpieces.
