Engraving sandblasting machine| Stone automatic engraving sandblasting machine|Tile engraving sandblasting machine|Curtain wall engraving sandblasting machine|Glass engraving sandblasting machine
The principle of sandblasting engraving is to use nozzle openings centered on 3-10 mm in diameter The ejected high-pressure air drives the corundum
(including brown corundum, white corundum, steel grit, etc. with water chestnut) abrasives impact the surface of stone or glass at high speed, so that
hollow out the sprayed object to achieve the purpose of carving.
Operation process of sandblasting carving:
Use computer typesetting CAD, photoshop and other plane processing software to engrave the patterns and texts that need to be engraved. , LOGO and other content through
Computer engraving and cutting machine is engraved on self-adhesive paper (sandblasting protective film), just like roadside advertising shops advertise words, Just wide
Instruction shop is to ask for characters, remove the unnecessary parts and leave the characters, while sandblasting engraving is just the opposite, it is to engrave Content's
Affix the protective film to the surface of the object to be engraved, remove the words you want to engrave, and control the sandblasting gun to blast engraving on the hollowed-out part .
When the high-pressure air drives the emery to hit this part, the effect is like tens of thousands of -96 chisels with large grit. hit this part,
Hit hard, remove the part that needs to be engraved, and form text or patterns, On the contrary, it will be protected by film where to get up,
Because the film is soft, it bounces out when it hits soft , the objects under the protective film are intact .
The depth of the engraving is determined according to the processing requirements, and the length of the gun's stay determines the depth of the engraving. If you want to carve deeply, you need it
Spray more in the deep engraving, that's all , this technique is not difficult , usually a normal person can do it in a few minutes without any
Basically, the engraved content is the same as the one in the computer, neat and beautiful, not deformed or out of shape.
Low engraving cost, generally about 12-20 yuan for one square of engraving materials, including protective film, electricity, emery.
The engraving speed is fast, such as engraving a 3 cm large 2 mm deep character, it takes time Just a few seconds. This is incomparable to traditional manual and other CNC tool engraving.
Sandblasting stone engraving machine currently has high pressure mobile open type, high pressure circulation recovery type, siphon type fixed box type, suction mobile circulation type
There are several models of recycling type, users should choose according to their own needs and processing requirements.
1) Large output, flat-type engraving should choose a flat automatic conveying sandblasting machine span>

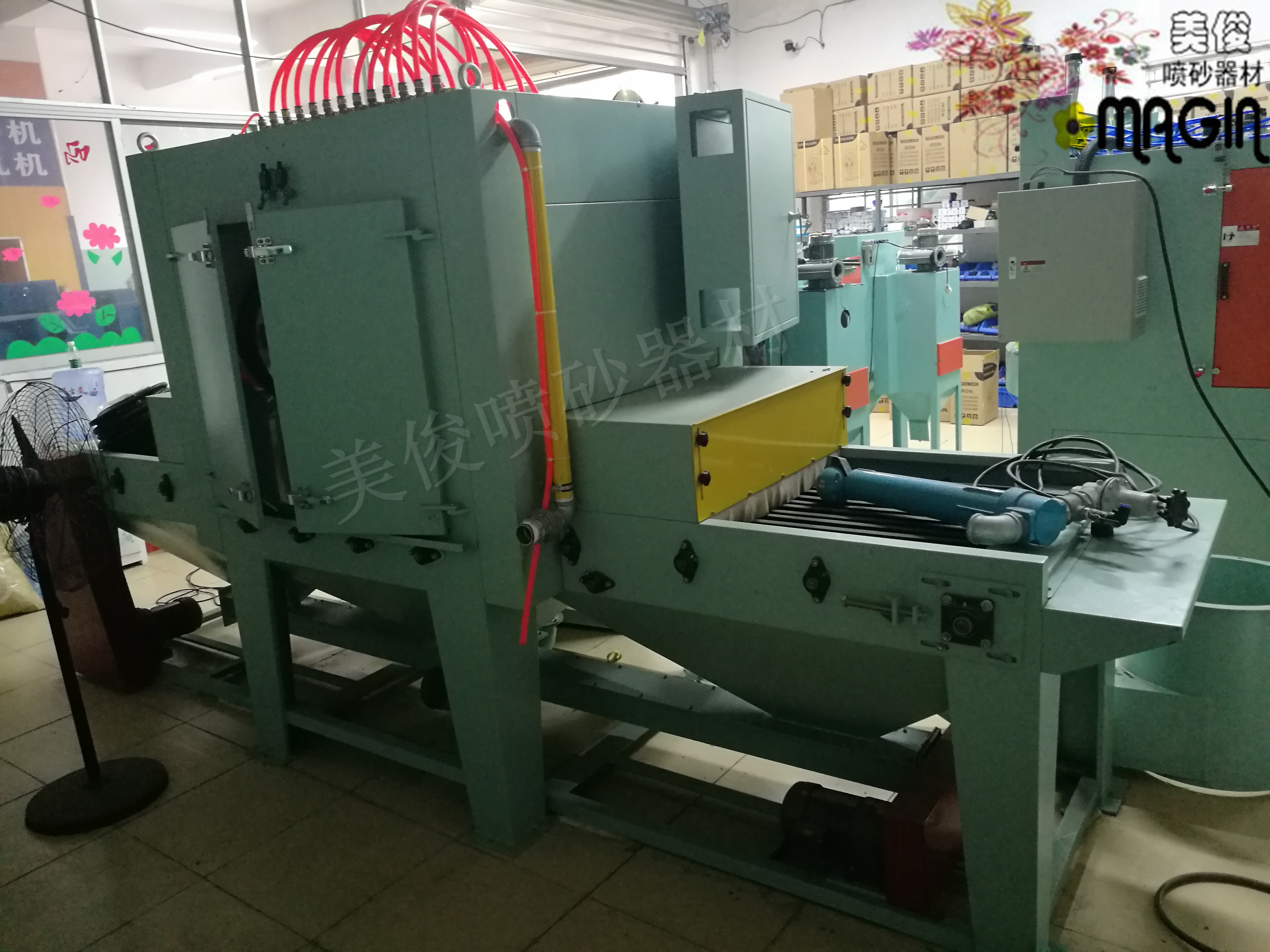

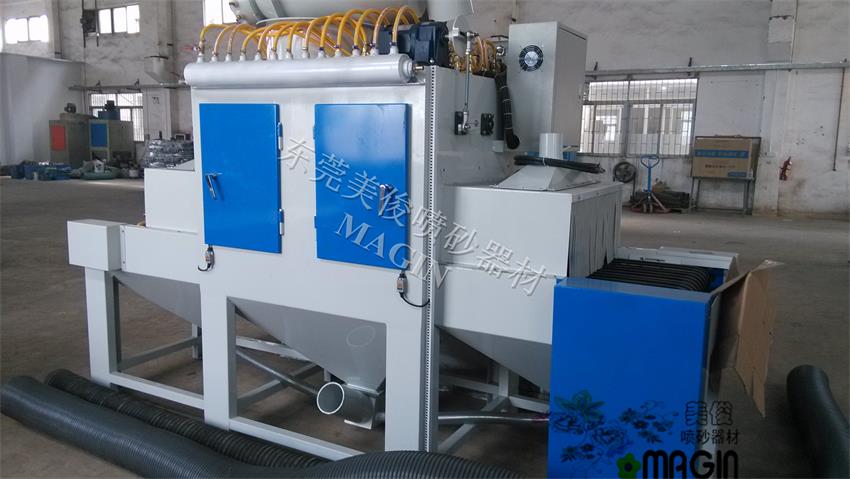

Flat Conveyor Sandblasting Machine(Linear Sandblasting Machine):
Suitable for flat type/large area/ sandblasting of objects requiring high yield .
Especially suitable for sandblasting of glass, steel, stainless steel, aluminum, and aluminum parts
Inverter controller, sandblasting speed adjustable,moving speed per minute< span>3-5m(based on product cleanliness).6-12Sand blasting gun,
Each gun can be turned on individually.
Conveyor type automatic sandblasting machine |
Type 800-2000 |
68000-150000 |
(Minicomputer can be customized according to product size) |
Collection dust machine |
Power: 5HP or 7.5HP, exhaust air volume 75 cubic meters/min or exhaust air volume 90 cubic meters/min |
||
Voltage: Three-phase 380V AC, total power 5.1KW or 6.8KW |
|||
sandblasting gun |
6-12 (each gun can be switched on and off separately) adjustable swing |
||
lighting |
2 60W explosion-proof lights |
||
transfer speed |
0-5m/min Adjustable Frequency control and speed regulation Need to ensure sandblasting permeability |
For your company's aluminum plate can be sprayed 0-8 sheets/min |
|
Occupy ground area area |
2700(L)*1000(W)*2950(H)mm (this size is for 1200 type machine) |
Size can be modified Can be customized for small or mainframe |
|
Available valid empty space |
1100(L)*1000(W)* 1000(H)mm (this size is for 1200 model) |
||
Air compressor power |
50HP or more |
2) Irregular bodies or small output, requiring economical and efficient pressure-type mobile sandblasting machines (open type), such as the 400-type press produced by our company
Force engraving sandblasting machine, using 5-6 cm high wear-resistant boron carbide nozzle and inner diameter 13-19mm cord winding cloth grain surface high-pressure wear-resistant sandblasting machine, according to the operation
The environment requires the assembly of pneumatic control type or electric control type, which is easy to use and economical. Welcome to consult!
