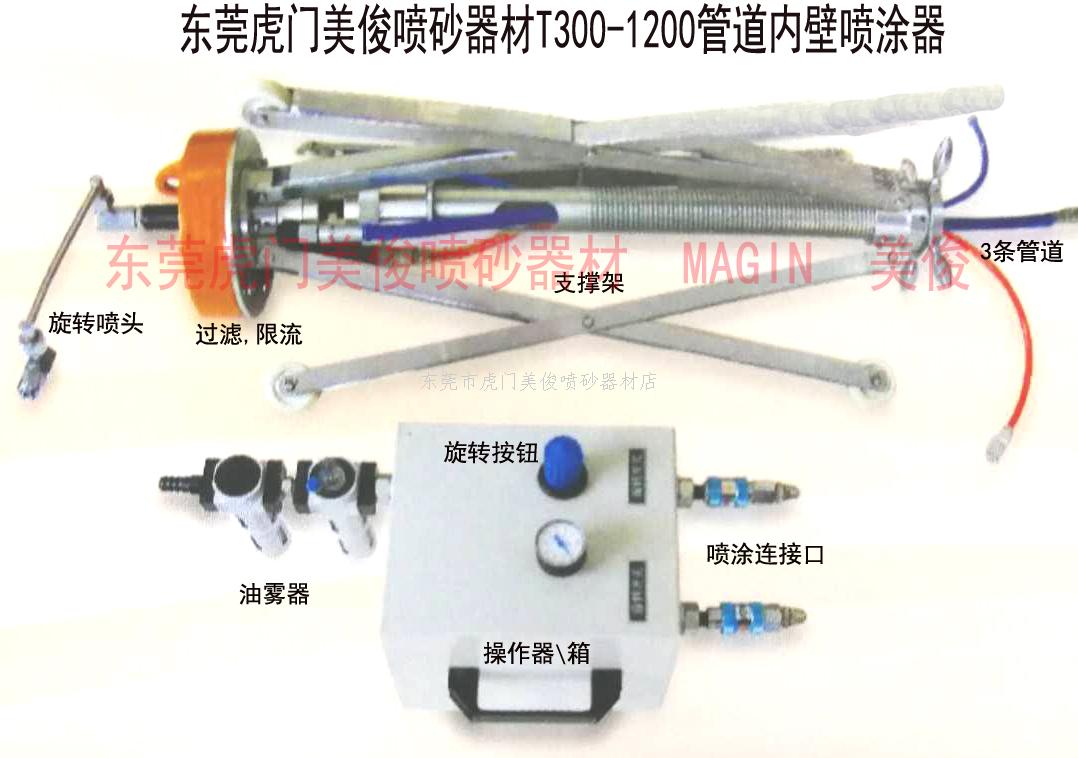

    【Origin Pic】

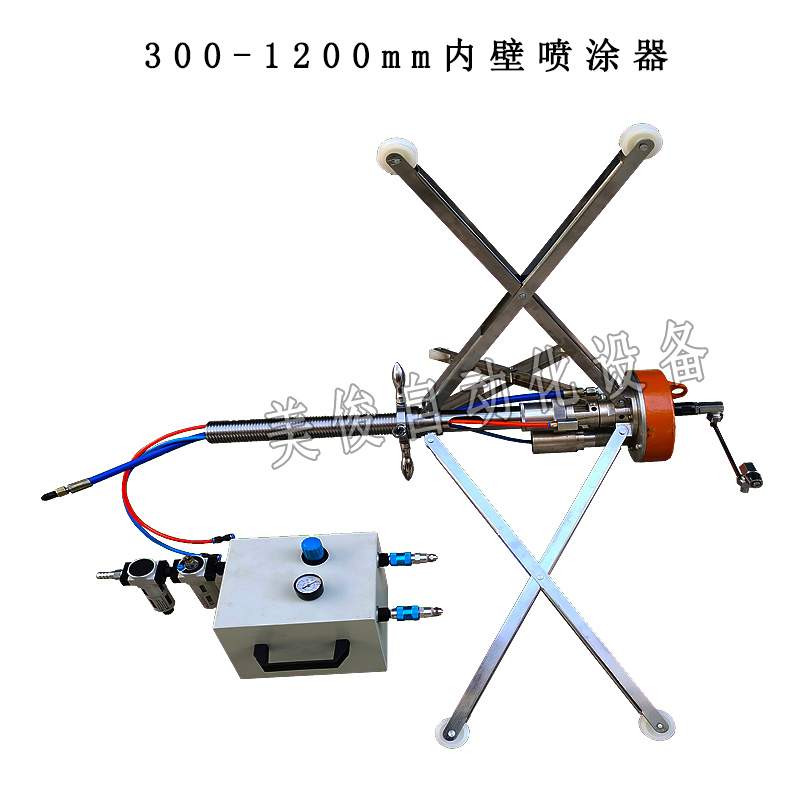

    Magin T300-1200mm Pipe Inner Wall Sprayer Spray Gun

    300-1200MM pipe inner wall sprayer spray gun, pipe inner wall sprayer, pipe inner wall spray gun, inner wall spray gun



    MAGIN T300-1200MM  type pipe inner wall spray device

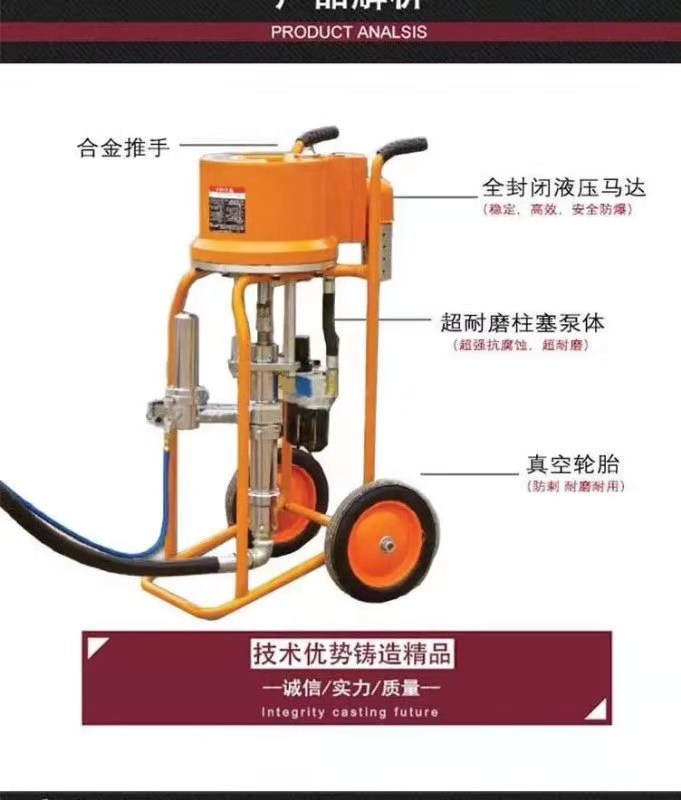

    MAGIN T300-1200MM typeThe pipe inner wall sprayer can be used in conjunction with the airless sprayer produced by our factory to spray the inner diameter Ф300-Ф1200mm of various pipes.

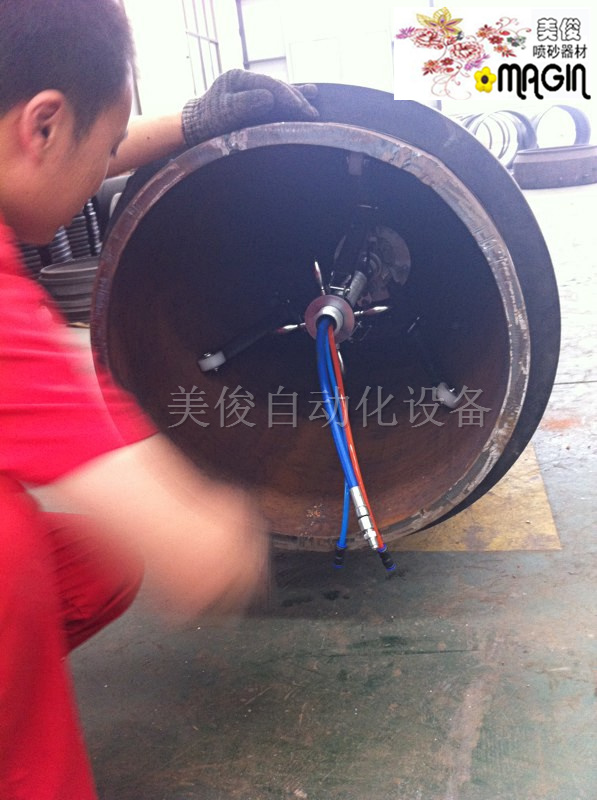

    it It uses the high-pressure paint delivered by the airless sprayer, and then rotates and moves along the inner wall of the pipeline through the inner wall sprayer to complete the spraying of the inner wall of the pipeline.

    MAGIN T300-1200MM TypePipe inner wall sprayerThe shape of the spray paint is fan-shaped, so it has strong adaptability and can be sprayed with viscosity Very high for most paints.

    MAGIN T300-1200MM TypePipe Inner Wall SprayerAdapt to Spray Inner DiameterФ300 -Ф1200mm.


    MAGIN 300-1200MM -type pipe inner wall spray device with our airless spray machine together could be used in spraying a variety of channels of which inside diameter is Ф300 - Ф1200mm. high-pressure paints which transfers from the airless spray coating machine and then goes through pipe inner wall spray device, rotates and moves forward ,and at last finish the pipe coating successfully.

    MAGIN 300-1200MM-type spray paint is fan-shaped, so adaptable to the majority of the high viscosity of paint spraying.

    NKP-3 type are adapt to a variety of channels with diameter Ф300 - Ф1200mm.


    ●Outline:



    Pipe inner wall sprayer, inner wall spray gun, pipe painting equipmentPipe inner wall sprayer, 300-1200mm pipe interior spray equipment, spray gun, rotary spray gunPipe inner wall spray gun, high pressure airless sprayer, inner wall sprayer, rotary spray gun


    Technical parameters

    Model

    MAGIN 300-1200MM

    Inner hole range of spray pipe Spray pipe bore range (mm)

    Ф300-1200

    Inlet pressure (MPa)

    0.4-0.6

    Nozzle rotation speed (r / min)

    10-100

    Body lengthTotal length (mm)

    950

    Body weightTotal weight (kg)

    18

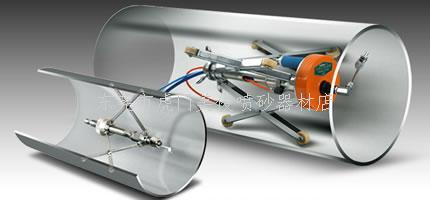

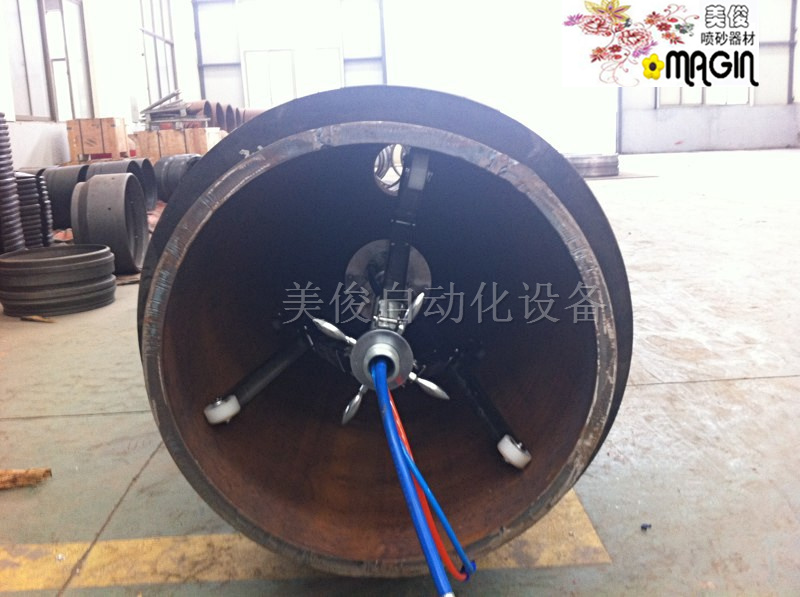

    【Use diagram】

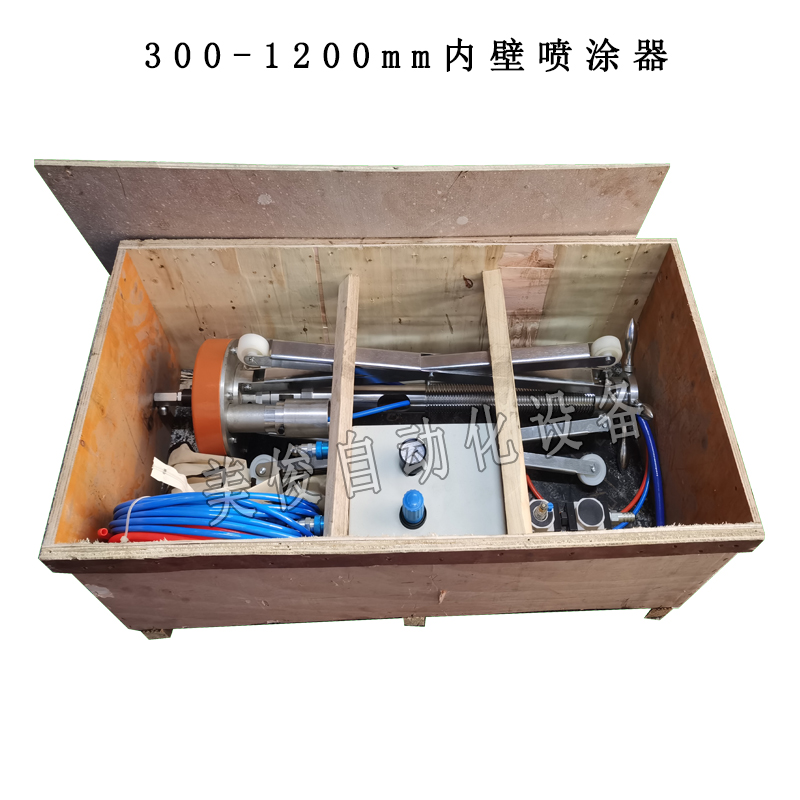

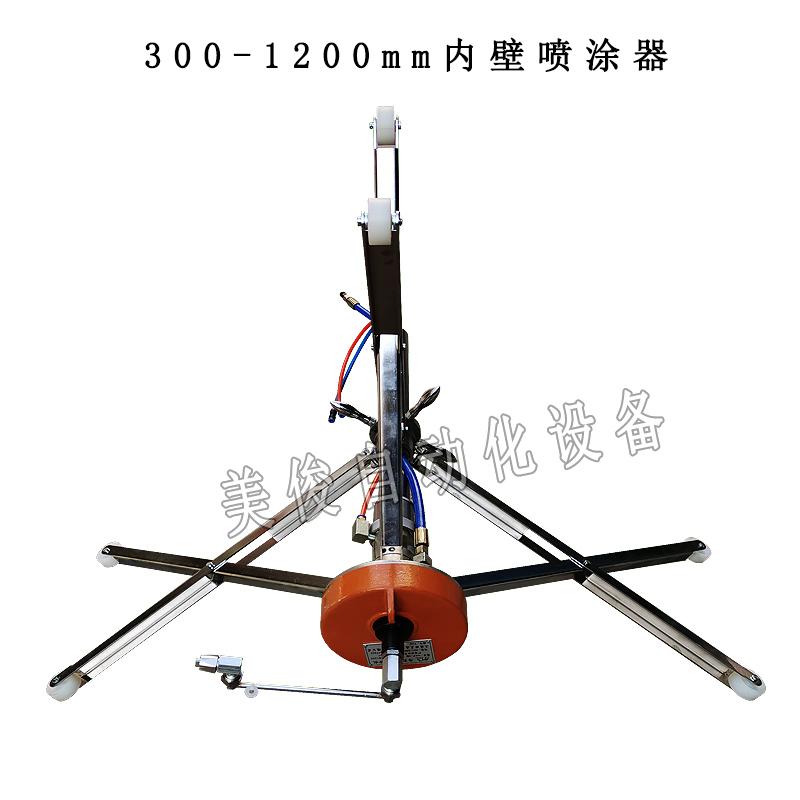

    Pipe inner wall sprayer, pipe inner wall spray gun, pipe inner wall spray gun
