Dongguan Meijun Sandblasting Equipment - Function and Features of Mechanical Recycling Sandblasting Room :

Mechanical recycling sandblasting room is relatively low cost in sandblasting room A sandblasting room is generally suitable for customers with low investment cost and easy operation and configuration.

Mechanical recycling sandblasting room requires customers to dig 2.5-4 meters of ground on site The horizontal and vertical augers are installed in the kang and floor kang to recover the sand. All the sand is collected by the auger to the elevator, and then the elevator lifts the sand to the silo, and then controls the sand blasting machine. The system is reused after dropping the sand into the blasting machine. The mechanical recovery sandblasting room is also equipped with a dust removal system, which sucks the dust generated during the sandblasting process into the dust removal box through the suction duct, filters it through the filter element, and finally discharges it into the atmosphere.

The mechanical sandblasting room adopts high pressure open The sandblasting machine adopts the upper head mode, the top is connected to the storage bin, and the equipment control is also configured by an electronic control system. The worker can start the sandblasting through the remote control.

The mechanical sandblasting room is generally not expensive and suitable for sandblasting. Less demanding, cost-saving customer base. The sandblasting room is mainly for sandblasting of large workpieces of customers. Many customers produce mechanical equipment, large welding parts, pressure vessels, valves and other products. The products are heavy in tonnage and large in size. Because of environmental protection requirements, they cannot be directly sprayed outdoors. Sand, so you need to use a professional sandblasting room.

The mechanical sandblasting room consists of sandblasting host, sandblasting chamber, auger recovery system, sand lifting system, storage bin, dust removal box, control system, etc. The biggest difference between sandblasting rooms is that the sand recycling is different.

Meijun Sandblasting room recycling method:

1. Belt conveyor + bucket elevator + separator 2. Scraper + belt + bucket elevator + separator 3. Screw conveyor + bucket elevator + separator

System Features:

1. The system uses mechanical power to recover abrasives, abrasives for sandblasting can be selected arbitrarily, abrasives are recycled, and the processing efficiency is high;

2. The machine adopts secondary dust removal, and its total dust removal efficiency can reach more than 99.99%;

3. This machine is equipped with a system air volume adjustable device to balance the recycled sand material from entering the filter element dust collector, reducing the sand material loss and achieving the best dust removal effect;

4. The main electrical components are imported products, with stable performance, safety and reliability, long-term use and simple maintenance;

5. On the upper part of the front roof of the sandblasting room, there is a "sound and light alarm system". In the sandblasting room, it is equipped with an emergency stop call button;

6. The electronic control of each system adopts interlock control. When one of the systems fails, the related systems will stop working and the spray gun will stop spraying.

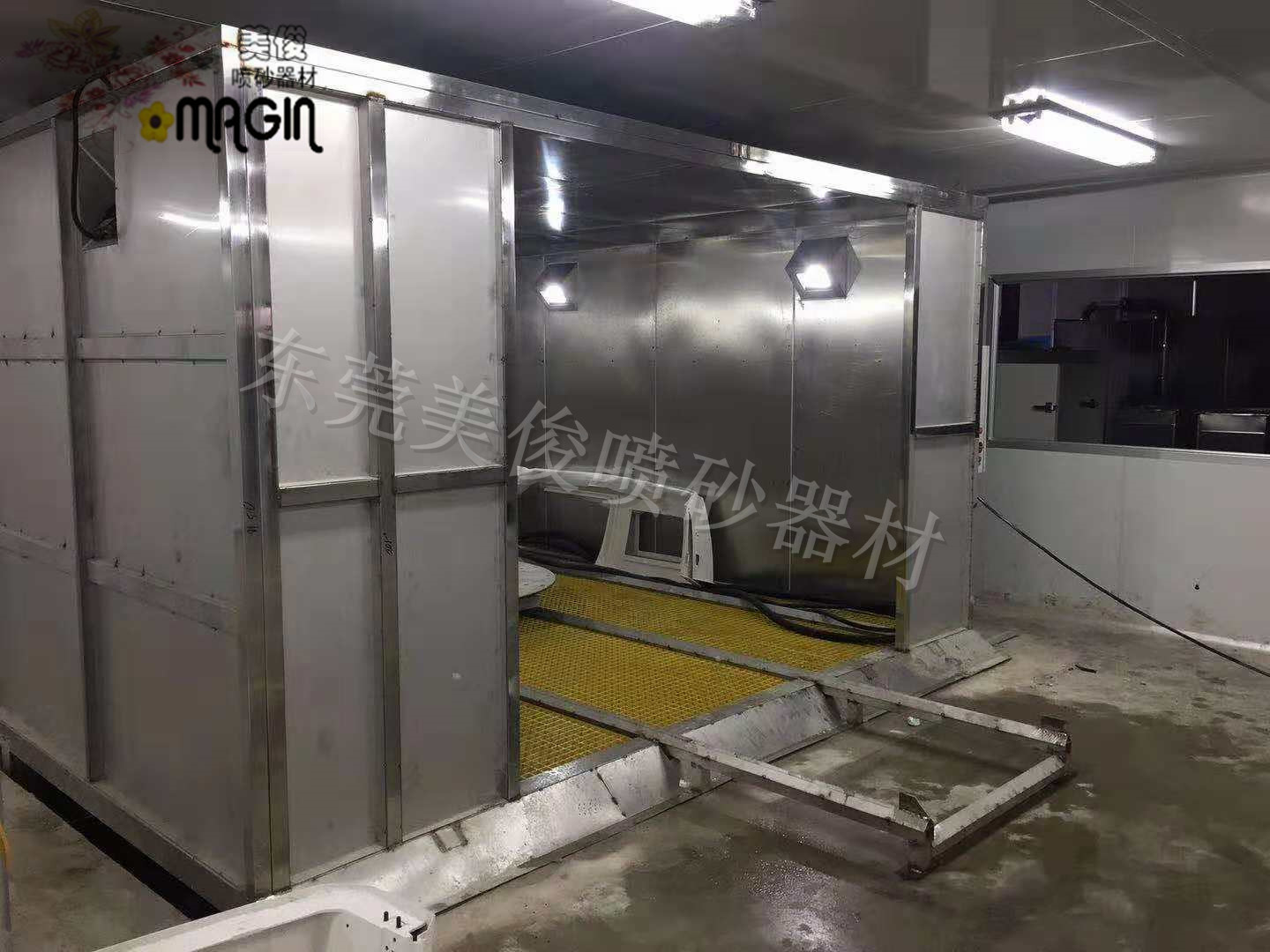

Blast Room

Fully automatic mechanical conveying recovery type sand blasting room/shot blasting room system

A complete set of sand blasting room/shot blasting room system includes sandblasting/shot room body, air source system, sand blasting/shot system, abrasive recovery and separation system, ventilation and dust removal system, workpiece conveying System, labor protection system, lighting system and electrical automation control system; sand blasting room/shot blasting room is mainly used for construction machinery, bridge steel structure, heavy machinery, containers, rolling stock, aerospace, petroleum and petrochemical, electric power, weapons Surface sand blasting and shot peening in other industries. The company adopts advanced modular design, factory prefabrication, and on-site assembly; the structure is reasonable and beautiful, and the design and manufacturing cycle can be controlled within 1 to 3 months.

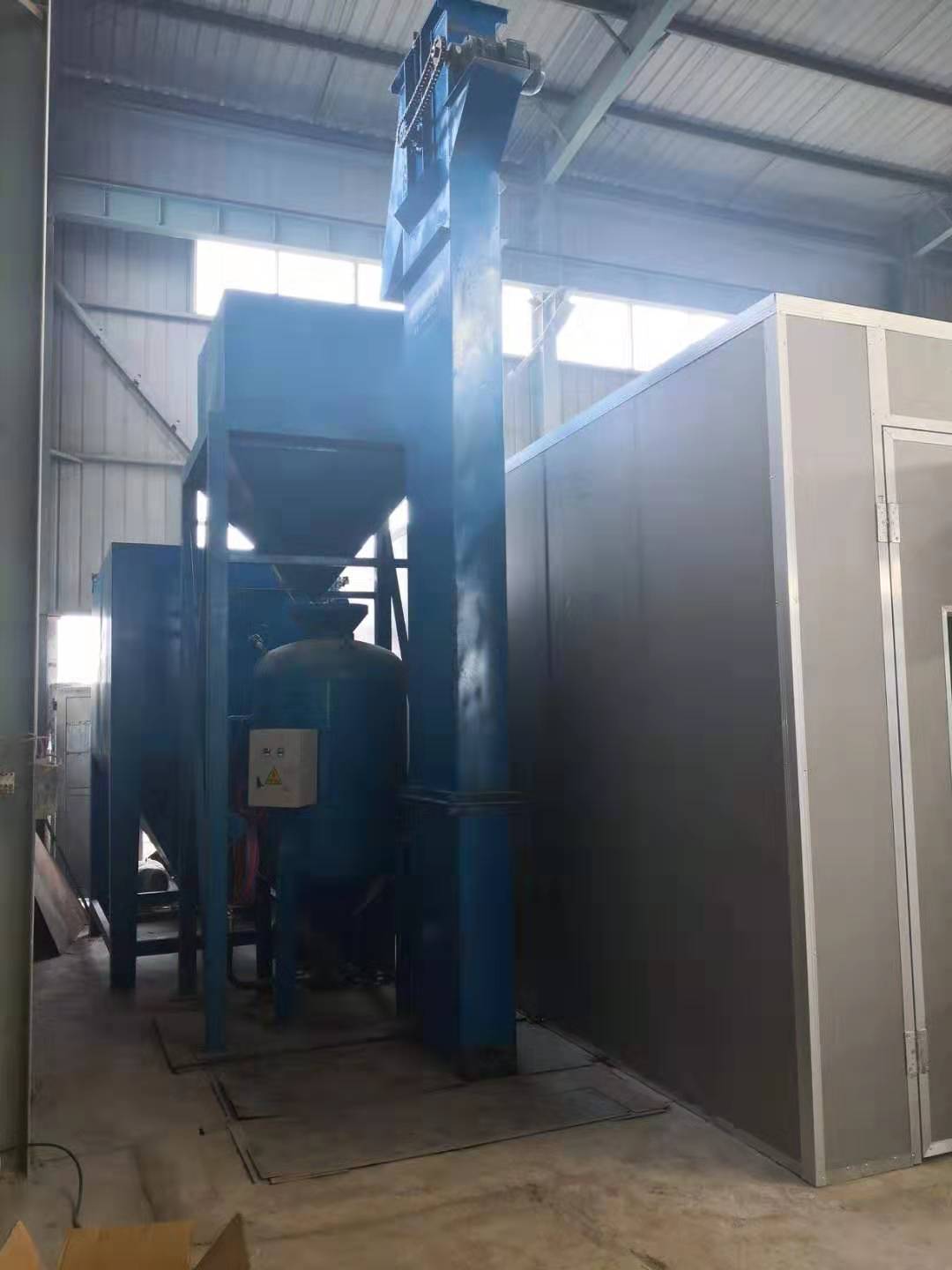

Blast Room

The fully automatic mechanical conveying and recycling sandblasting room/shot blasting room adopts the method of mechanical
conveying and recycling of abrasives, which has changed the method of pneumatic conveying and recycling that has been used in the
1980s and 1990s. The method of mechanical conveying and recycling is more efficient, more environmentally friendly, and has a lower cost of use. It is 20 times more efficient than the same type of pneumatic conveying recovery method and saves 80% of energy.

Sand blasting room/shot peening room process: workpiece feeding → sand blasting / shot → recycling → screening → dust removal → workpiece output, the process can be automatically controlled.
