The working principle of Dongguan Meijun retractable spray booth:

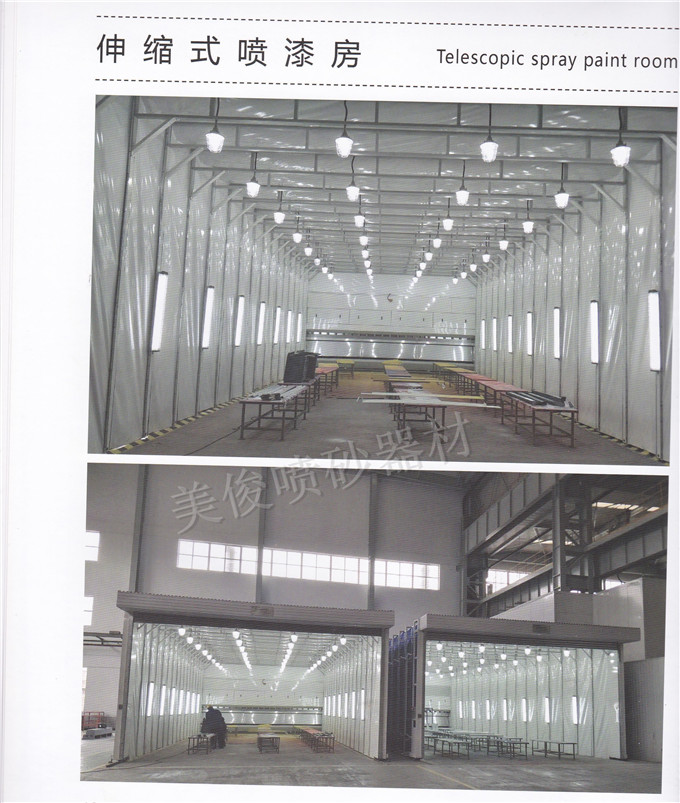

Telescopic mobile spray booth is a special environmentally friendly spray booth that can be automatically unfolded to form a closed or semi-closed environmentally friendly spray booth when in use, and a special environmentally friendly spray booth that can be retracted and folded into one place when not in use. It is an advanced spray booth. The integration of design concepts and technologies is widely used. The telescopic spray booth is a practical and environmentally friendly spray booth specially developed to solve the difficulty of moving and transporting large workpieces. It can be adjusted arbitrarily according to the size of use to reduce the occupation of the work place. There is no need for a special mobile platform for the equipment, and the workpiece can be turned around only by the traveling crane of the supporting workshop;
Process flow:
1. Preparatory work: retract and close the front chamber by telescopic movement;
2. Workpiece preparation: The workpiece is moved into the designated area and in place;
3. Preparation for painting: telescopically move the front chamber to unfold the painting of the workpiece;
4. Finished painting: telescopic moving front chamber, shrinking and closing;
5. Finished painting: the workpiece is moved out of the designated workplace;
Specifications:
1. The telescopic spray booth is a practical product specially developed to solve the difficulty of moving and transporting large workpieces. The spraying area can be adjusted arbitrarily according to the size of the output, making full use of the production site and operating space;
2. The use of telescopic mobile spray booths greatly simplifies the production process of continuously using the workshop crane to hoist large and bulky workpieces back and forth; no special transportation tools are required; the unfolding length can be at any position;
3. The telescopic mobile spray booth is a frame transmission structure as a whole. Each group of frames is sealed with flame retardant PVC cloth, which is fast in installation, beautiful in appearance, compact in structure, convenient in use, low in manufacturing cost and investment in saving;

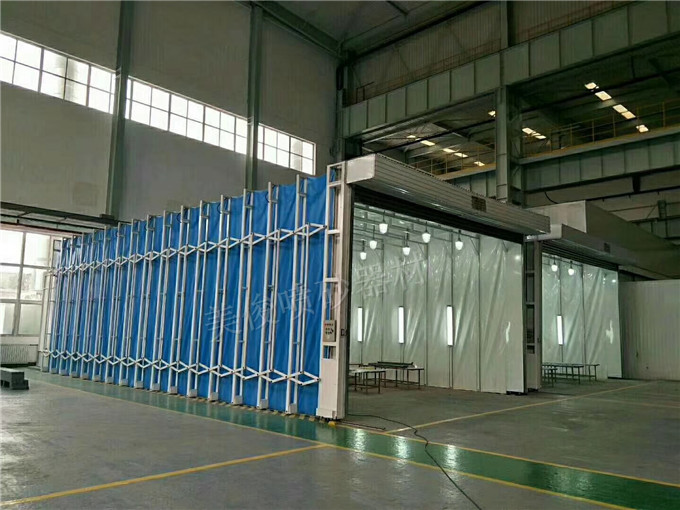

4. During work, the house body moves forward and backward along the track laid on the ground. It is driven by both sides and operates in an interlocking manner. The front and rear safety limit control ensures safe and stable mechanical operation, simple operation and convenient use;
5. Explosion-proof lighting is installed in the working area, which can meet the lighting needs in production;
6. Various types of non-standard sizes can be customized according to the actual production needs of customers;
7. During the working hours when there is no need to carry out the painting process, the front room can be closed together to save space and use it as other processes that intersect with the painting process;
8. Various spraying air purification equipment can be selected (such as: water curtain spray booth, pumpless water curtain spray booth, dry spray booth); suitable for the needs of various customers;
9. Optional heating and air supply system and auxiliary drying room device, its unique structure and adaptability enable it to meet the functional requirements of product production;
10. The pre-assembly degree of the mobile chamber body is high, and the on-site construction is fast;
Device Advantage:
The telescopic mobile spray booth is a special room device that can be automatically unfolded to form a closed or semi-closed work room when it is needed, and it is a special room device that can be retracted and folded into one place when it is not needed. It is an advanced design concept and technology integration, the application range is very wide. Can be used as the following device:
(1) Closed or semi-closed spray booths and integrated spray booths for drying and drying
(2) Grinding room
(3) Clean Assembly Room
(4) Clean spray booth
(5) Vehicle and equipment maintenance room
(6) Drying room, telescopic movable ceiling
(7) Warehouse (goods, vehicles, aircraft, etc.)
(8) Rainproof workshop and other application places that need to be temporarily closed or semi-closed
(9) Auxiliary configuration includes: lighting fixtures, emergency exits, warning safety devices, exhaust devices, dust and exhaust gas purification devices, hot and cold air supply devices, air conditioning devices, etc.
Application:
The application fields of telescopic mobile spray booth include machinery, electronics, ceramics, furniture, ships, aerospace, military industry, etc. The maximum width of our company's telescopic spray booth can reach 20 meters, which is convenient for extra-large workpieces The hoisting can save the cost of the electric flatbed.
