Dongguan Meijun Sandblasting Equipment Various Pressure Sandblasting Machine Parts

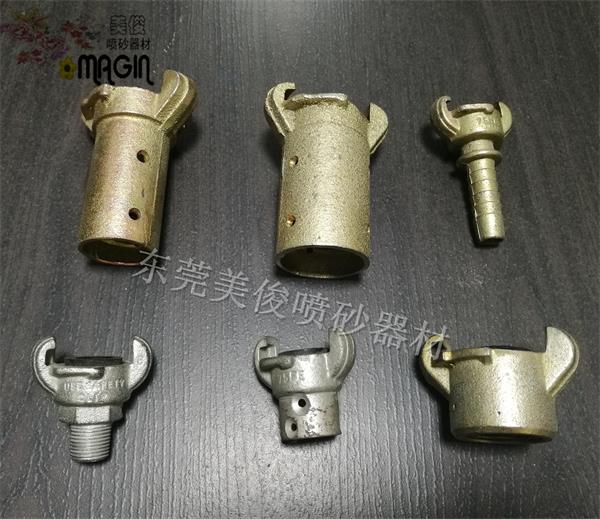

Single-inlet sandblasting gun joints, double-inlet sandblasting gun joints, pressure-type sandblasting gun joints of various specifications, sandblasting pipe quick joints, sandblasting tank joints, adapters, small pressure-type sandblasting guns, air-controlled sand conditioning Valve, manual sand control valve, air control switch, sand outlet tee, 45 degree sand outlet tee, four-way, air shut-off valve, sand regulating valve, automatic exhaust valve, high-pressure connection air pipe, 3-way air shut-off valve, etc.

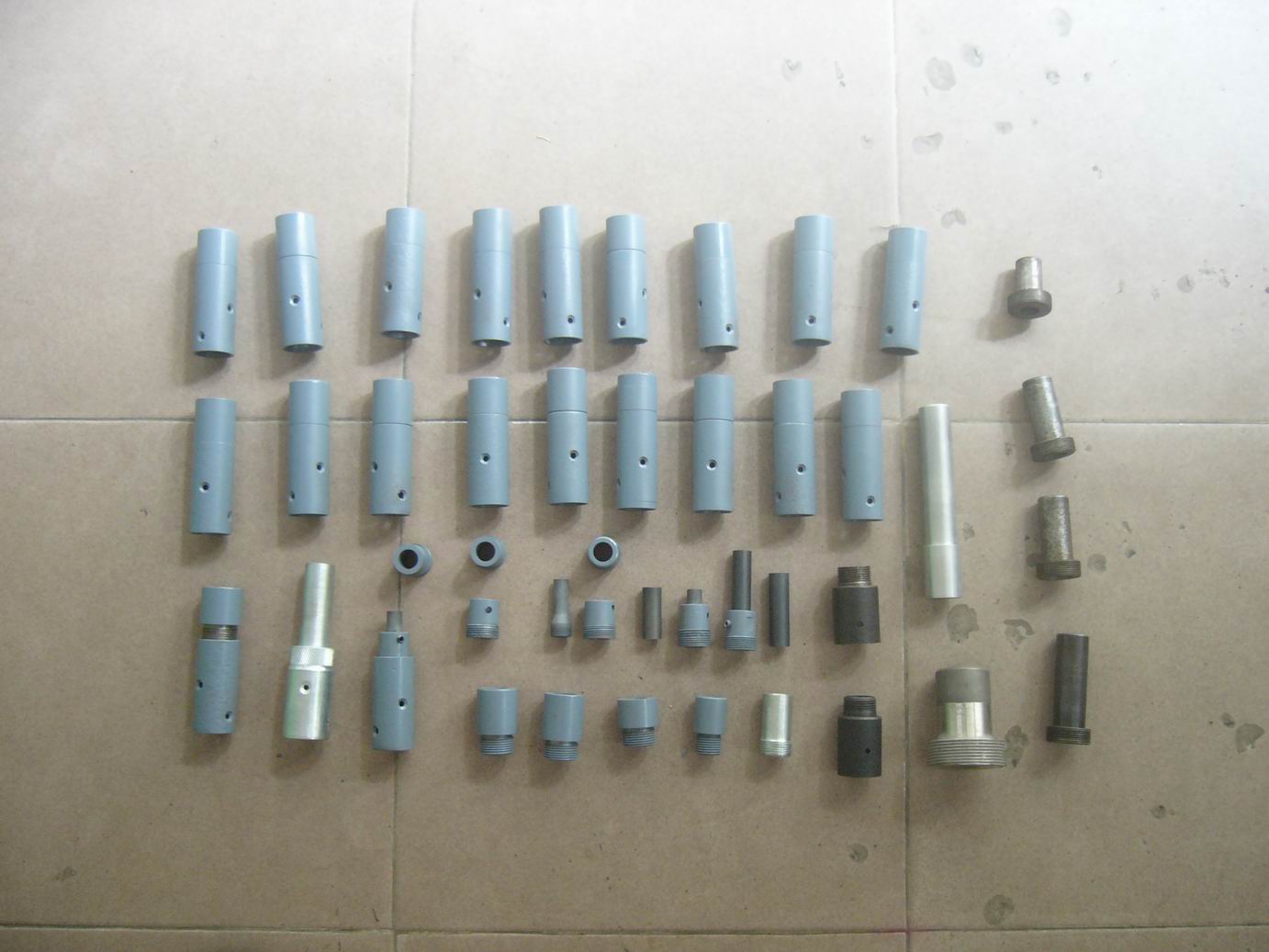

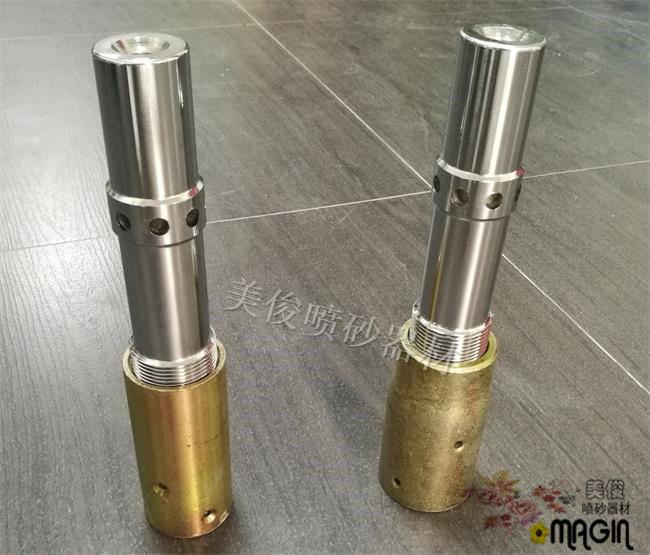

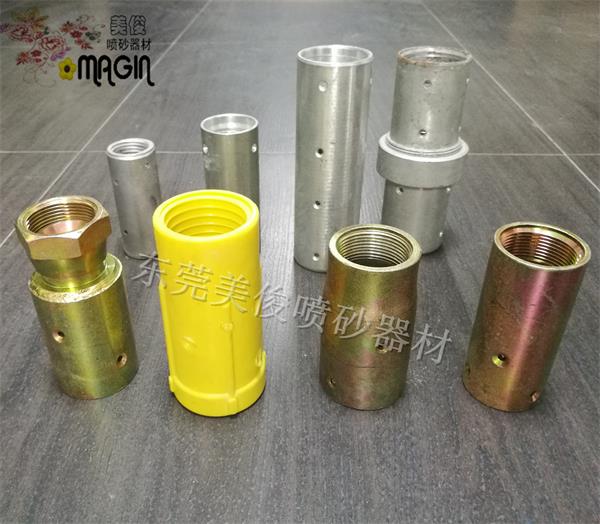

Blast gun adapter:

There are two types of materials: nylon and cast steel.

According to the size of the connecting sand pipe: there are 2 kinds of standard joints

1) 1 inch 2 connectors:

It is suitable for the connection of standard sandblasting pipes with an inner diameter of 32MM and an outer diameter of 48-50MM.

2) One inch connector:

It is suitable for the connection of standard sandblasting pipes with an inner diameter of 25mm and an outer diameter of 40mm.

It can be applied to most of the double-inlet sandblasting guns and single-inlet sandblasting guns on the market.

According to the thread of the sand gun joint connecting the sand blasting gun:

There are two kinds of coarse teeth and fine teeth

Fine thread: standard inch thread 1-1, 4, 11-1, 2 N.P.S.M. (1 inch 2 pipe thread)

Coarse thread: Thread 2, 4-1, 2 U.N.C. (international rib)
