    50-300MM Pipe Inner Wall Spray Gun

    Pipe inner wall spray gun, pipe inner wall sprayer, pipe inner wall spray gun, pipe inner wall coating


    MAGIN T50-300 type Pipe Inner Wall Sprayer

    It is suitable for the inner wall coating of small holes and medium-sized pipes. It is a high-pressure coating delivered by an airless sprayer.

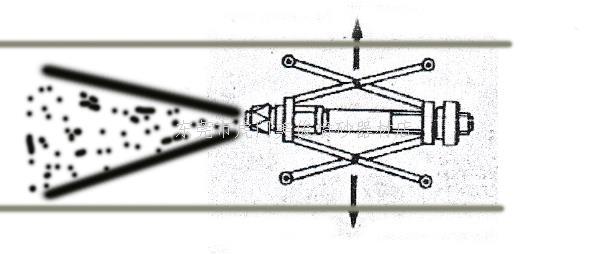

    Through the special nozzle, the paint is atomized and directly formed into a trumpet shape (conical, hollow), and sprayed evenly on the inner surface of the pipe, so as to realize the coating of the pipe.


    MAGIN T50-300 type pipe inner wall sprayer is mainly suitable for pipes of Ф50-Ф300mm, and the paint viscosity No more than 80 seconds (Ford Cup No. 4).
    If the paint viscosity is higher than 80 seconds, it needs to be diluted with solvent.



    MAGIN T50-300
    type pipe inner wall sprayer is basically not limited by pipe length, but preferably not longer than 15 meters.

    Spraying pipe inner hole range (mm):
    Ф50-300
    Body length (mm): Ф50×280(L)
    Body weight (kg): 0.9
    Paint control switch hand spray gun weight (weight): 0.45

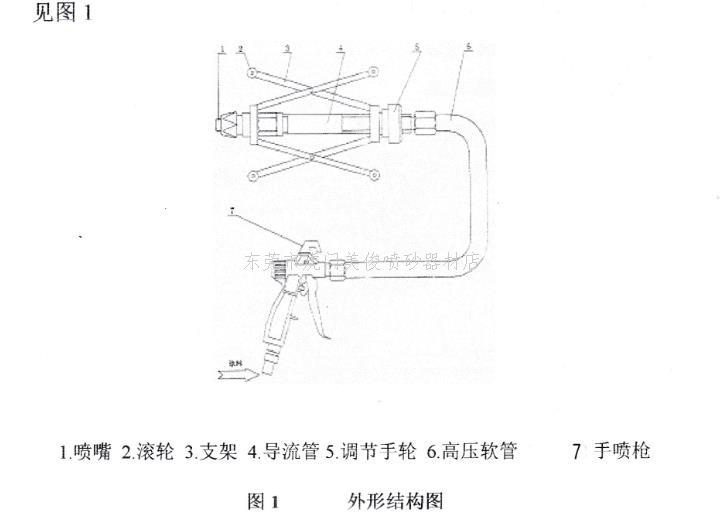

    external structure:

    Pipe inner wall sprayer / pipe inner wall spray gun / inner wall spray gunPipe inner wall sprayer / pipe inner wall spray gun / inner wall spray gun


       Special reminder: This sprayer needs to be used in conjunction with a high pressure airless sprayer.

    Other models  MAGIN  300-900MM       MAGIN  800-3500MM  Welcome to inquire and purchase!
