Pneumatic control system of pressure mobile sandblasting machine

Pneumatic control system: including automatic exhaust valve, pneumatic control switch, rubber core I-shaped seat, pneumatic control sand control valve, thickened sand outlet tee, air shut-off valve and other accessories;



Our sales related accessories are:

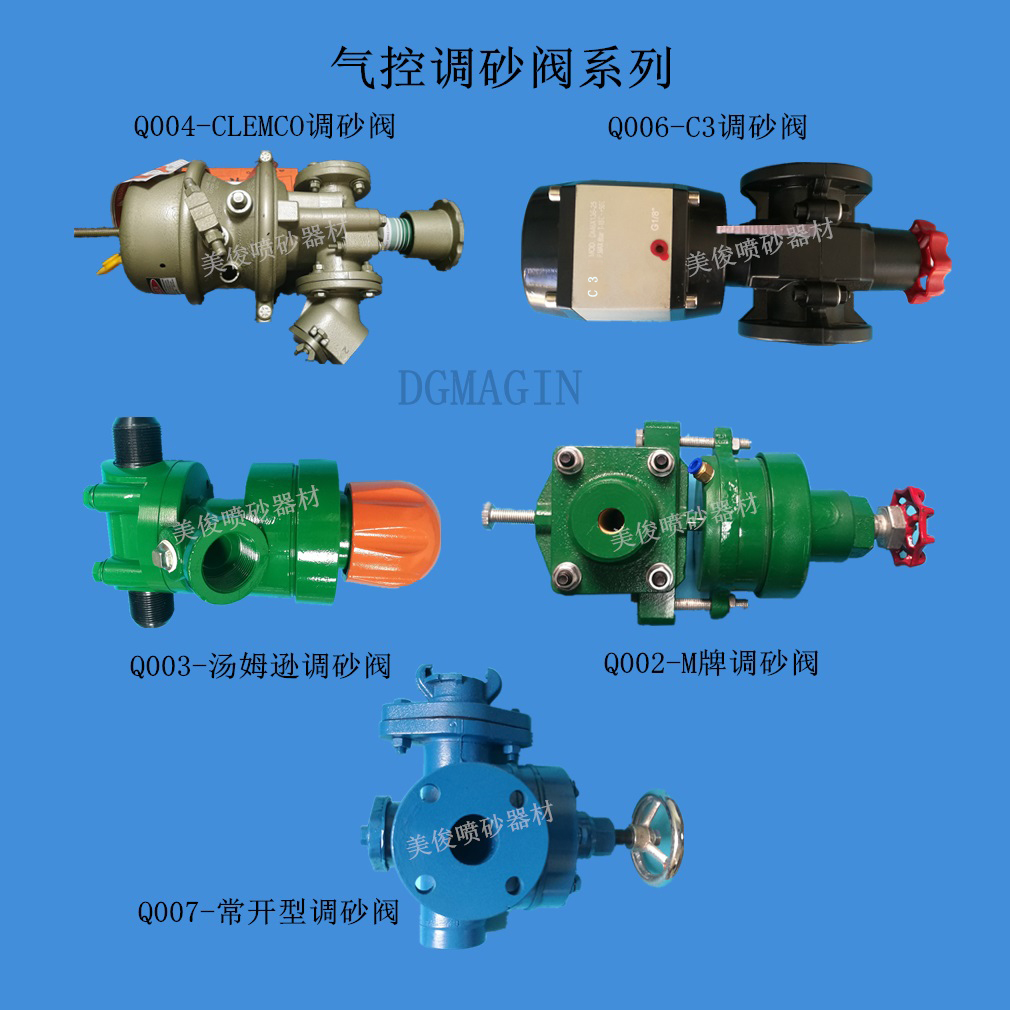

1)    American M brand air-controlled sand control valve: 2-inch rib interface up and down   sand outlet tee, left and right 1.2-inch interface

Rubber core I-shaped seat - plays the role of controlling the amount of sand, the sand is smooth and the control is sensitive, and the wear parts need to be replaced as rubber cores. This rubber core is made of wear-resistant rubber and is durable.

Air-controlled sand control valve - used in conjunction with the rubber core I-shaped seat, the main replacement parts are the film and the valve inner spring, easy to disassemble, made of wear-resistant rubber, durable and cheap;

Automatic exhaust valve - automatic control type, sensitive exhaust, easy to use, high safety performance, need to replace the wear parts with film, this film is made of wear-resistant rubber, durable.

Air shut-off valve - also known as three-way air control valve, its function is to switch and control the main source entering the sandblasting machine, and at the same time distribute air into the bottom sand adjusting valve and the top automatic exhaust valve. The main replacement parts are film, using Made of wear-resistant rubber, sensitive control;



2)    Manual butterfly-shaped sand control valve: At present, large-scale sandblasting projects use 50-80 meters long sandblasting pipe or use smaller particle sand material for sandblasting, or the sand control valve is not used for a long time. The rubber core is hardened, and the sand pipe is often blocked. However, the manual control of the butterfly-shaped sand control valve is used to produce sand with a 45-degree inclination, which effectively reduces the sand pipe blockage caused by the resistance caused by the vertical sand falling of the ordinary sand valve. Sand problem. Butterfly-shaped sand control valve is a commonly used sand control valve for foreign large-scale engineering sandblasting machines. There is also a Thomson sand control valve with the same effect. Welcome to consult and understand!



3)   Other air control accessories (used accessories for old imported sandblasting machines): American CLEMCO copper intake valve, copper exhaust valve, exhaust water filter.



4) Flange type manual sand regulating valve, American Thomson air control valve, 45 degree sand outlet manual butterfly sand regulating valve, small butterfly sand regulating valve, etc.
