One:C3 Air Control Sand Control Valve

Meijun No. Q006 Air Control Sand Control Valve:
CLEMCO,Claremont,Clemonk,caratMUNK Air-controlled sand control valve, domestic type of sand shakeout valve.

The flange size is the same as the imported style, the use method is the same, and the function is the same. After the imported valve is localized, the cost of use is greatly reduced.

Second: Use service valve:

In fact, it is a manual control flow valve, which can be used as a manual sand control valve alone

The purpose of installing the maintenance valve on the air-controlled sand control valve:

1) After adjusting the flow and manually adjusting the required sand volume, the air control sand valve below can adjust the sand volume to the maximum, so that the air control sand valve does not control the sand volume at all, and the channel is placed to the maximum to reduce wear and tear, and it is only used as a switch use.

2) When the sand valve needs to be repaired, or the sand is blocked for cleaning, etc., the inspection valve can be closed, so that the sand in the tank will not leak out when the air control sand valve is disassembled, so that it can be cleaned after the sand is discharged, saving the maintenance time and avoiding Waste of production time.

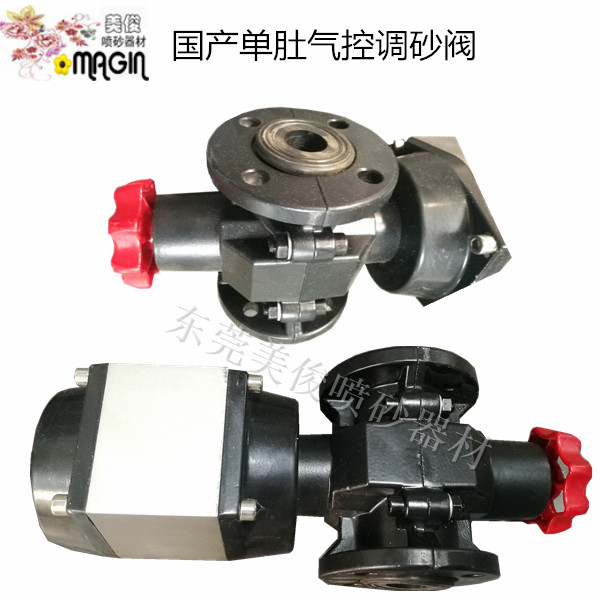

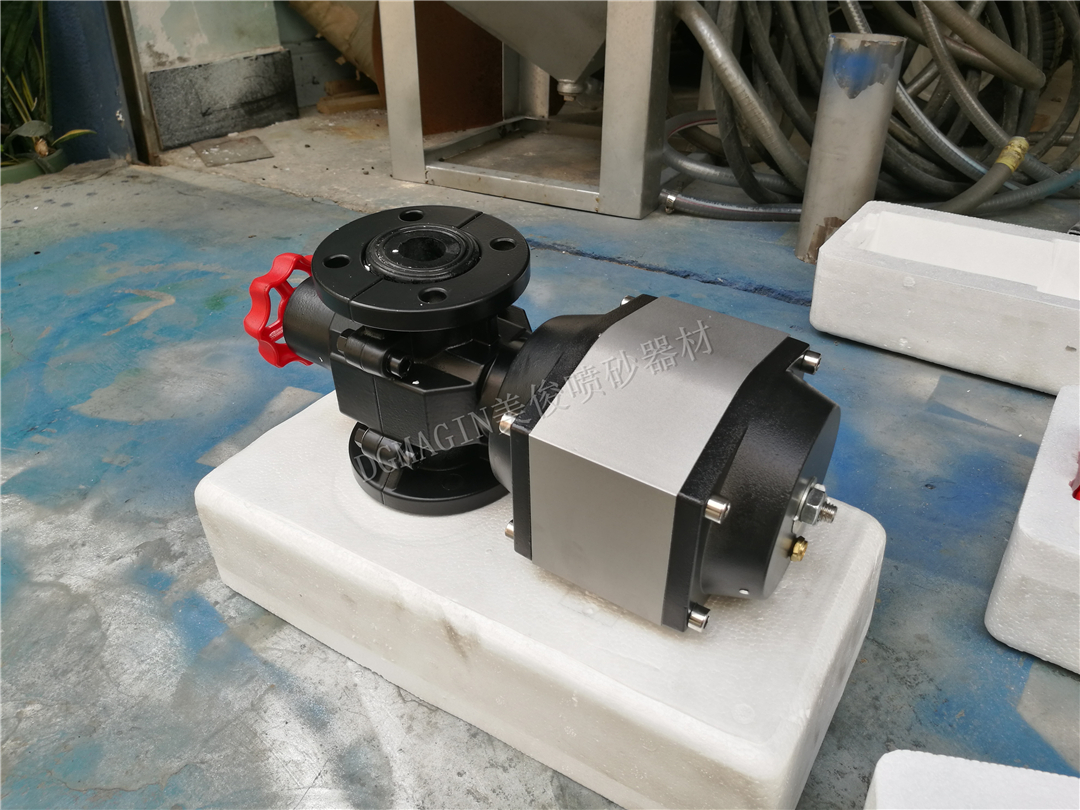

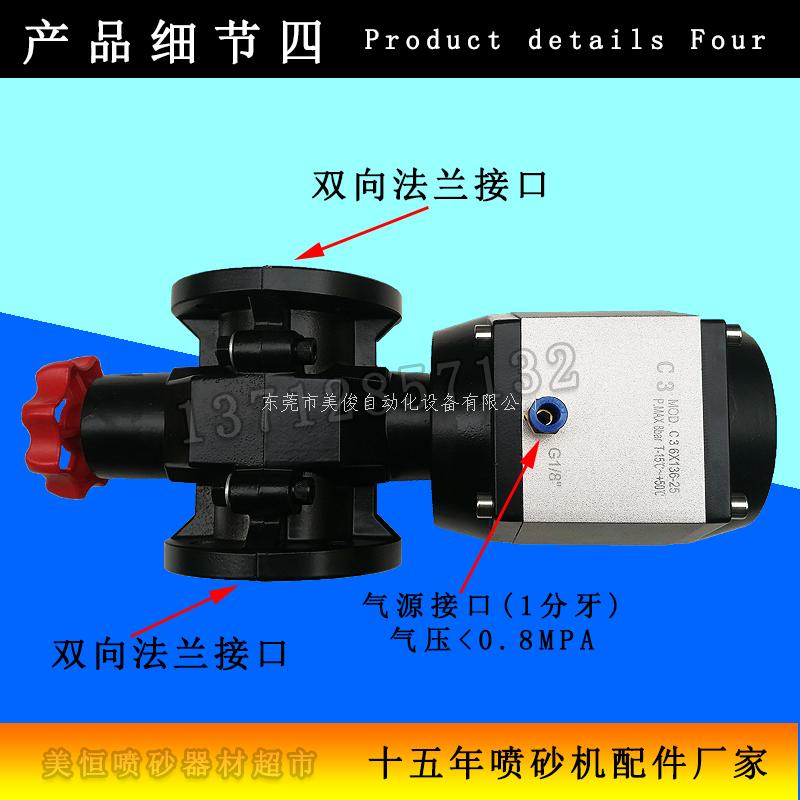

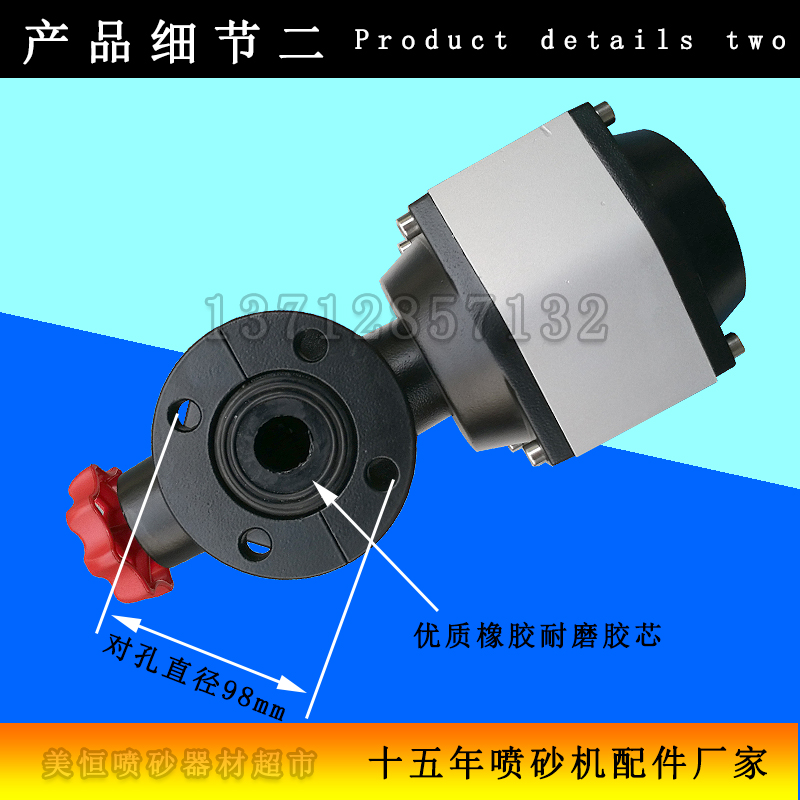

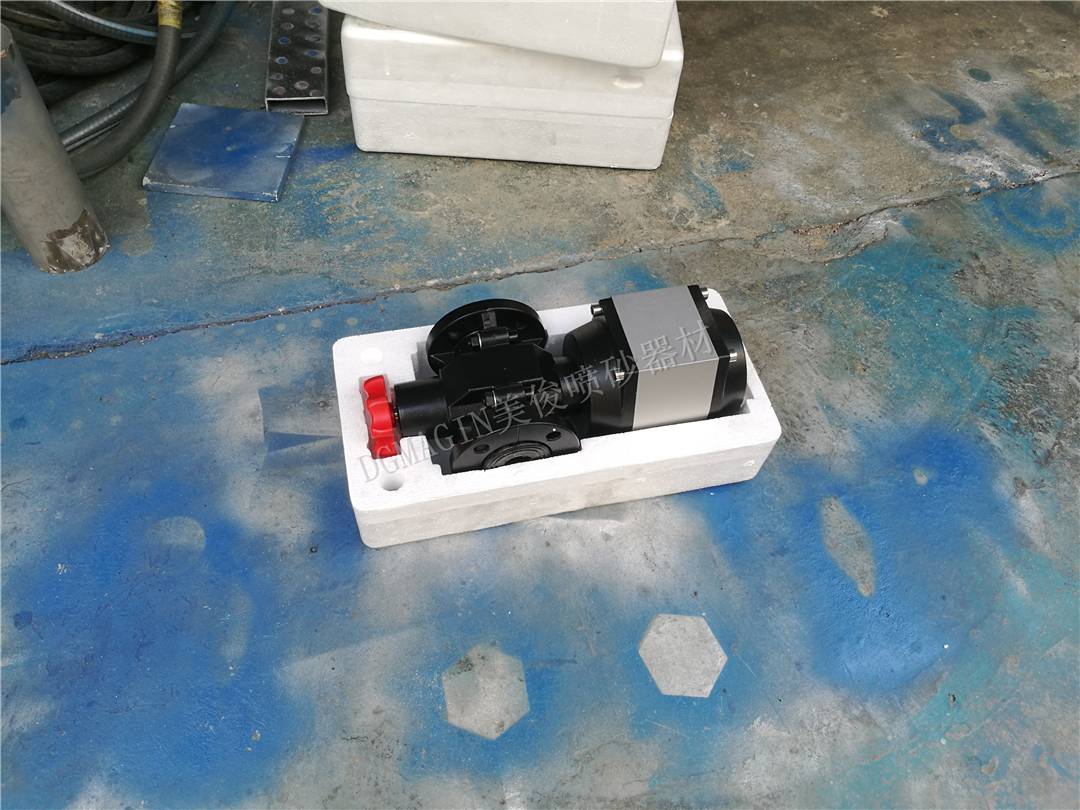

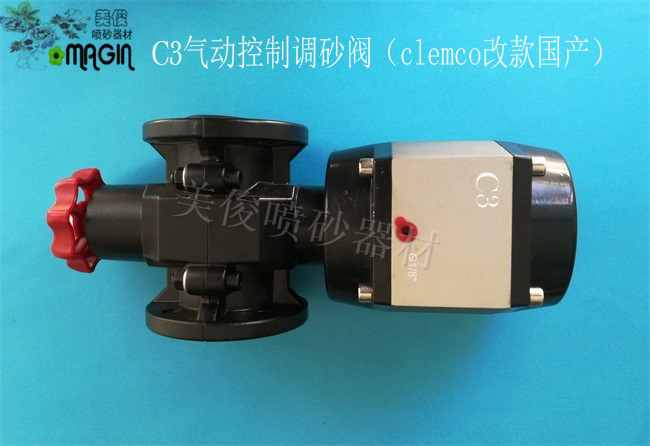

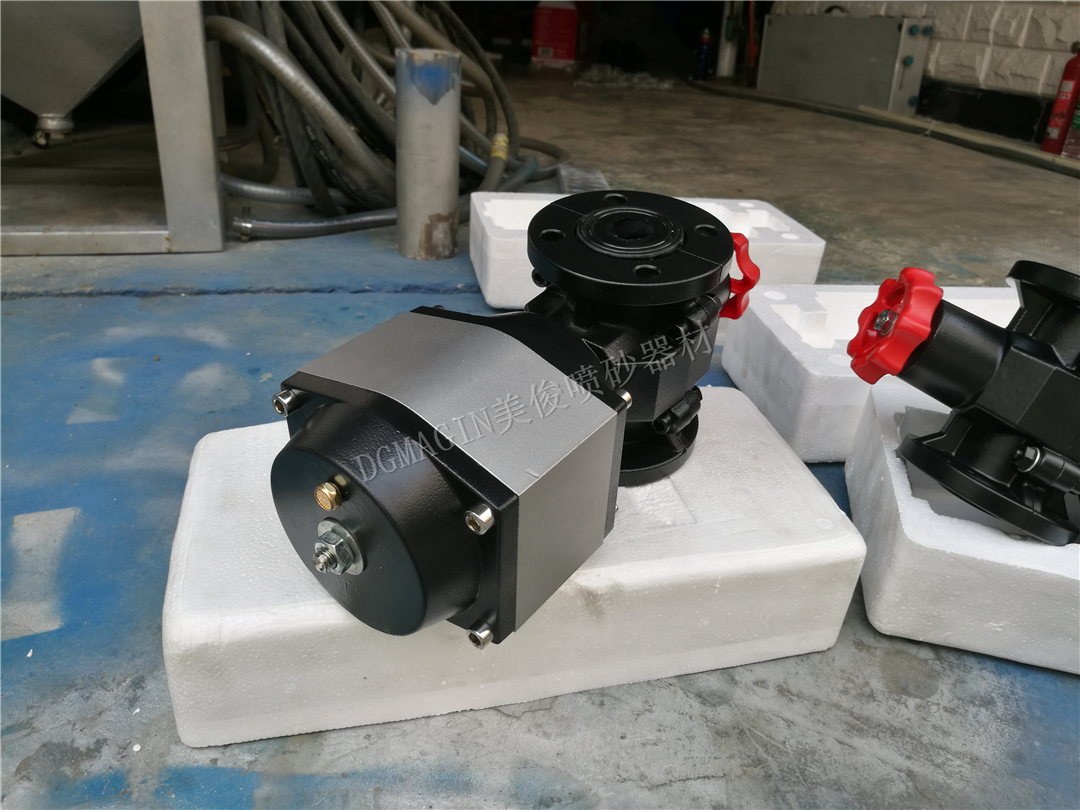

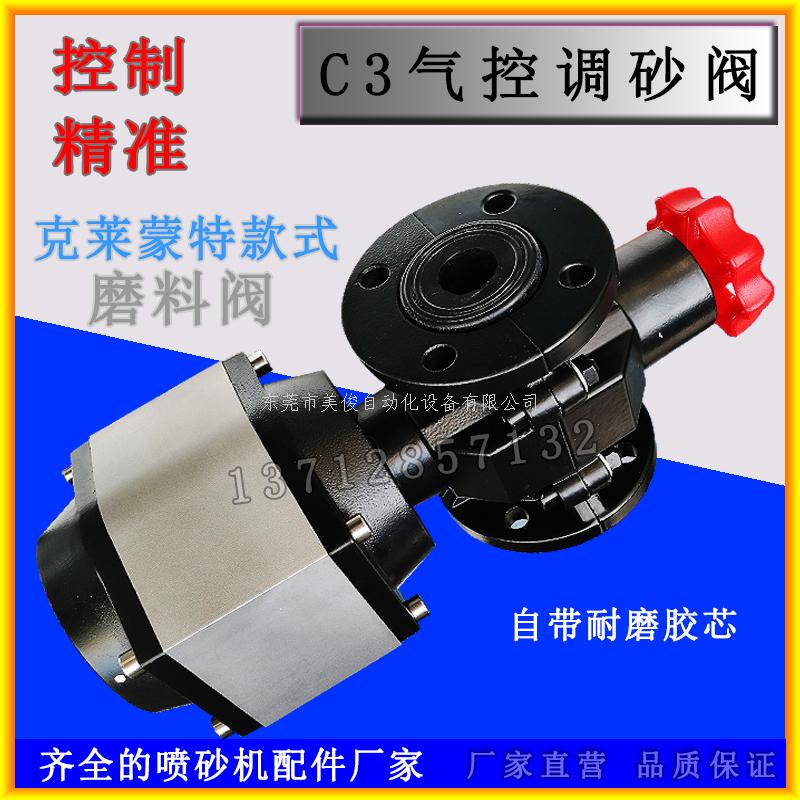

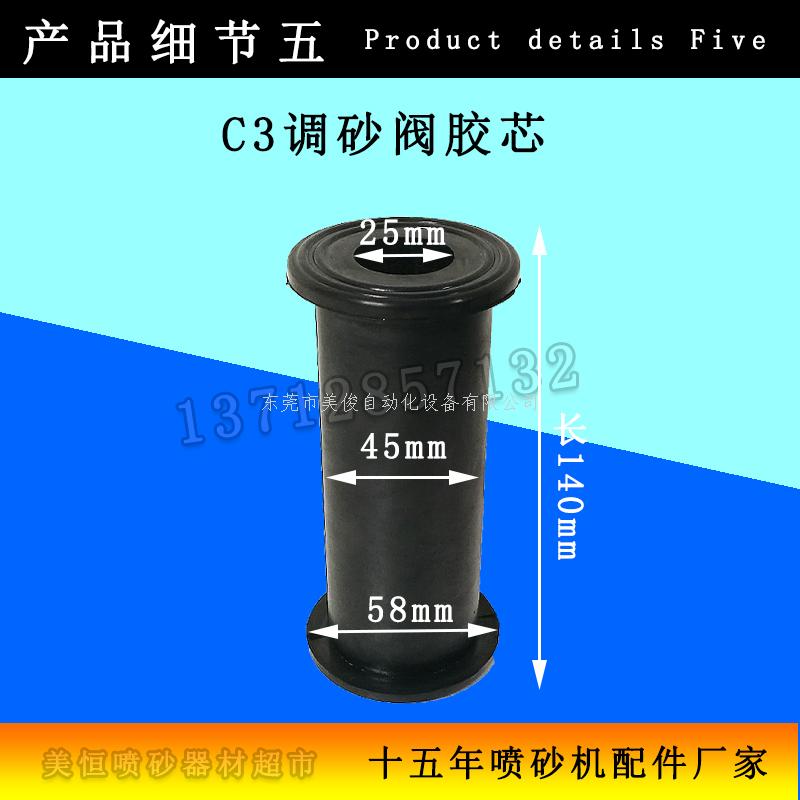

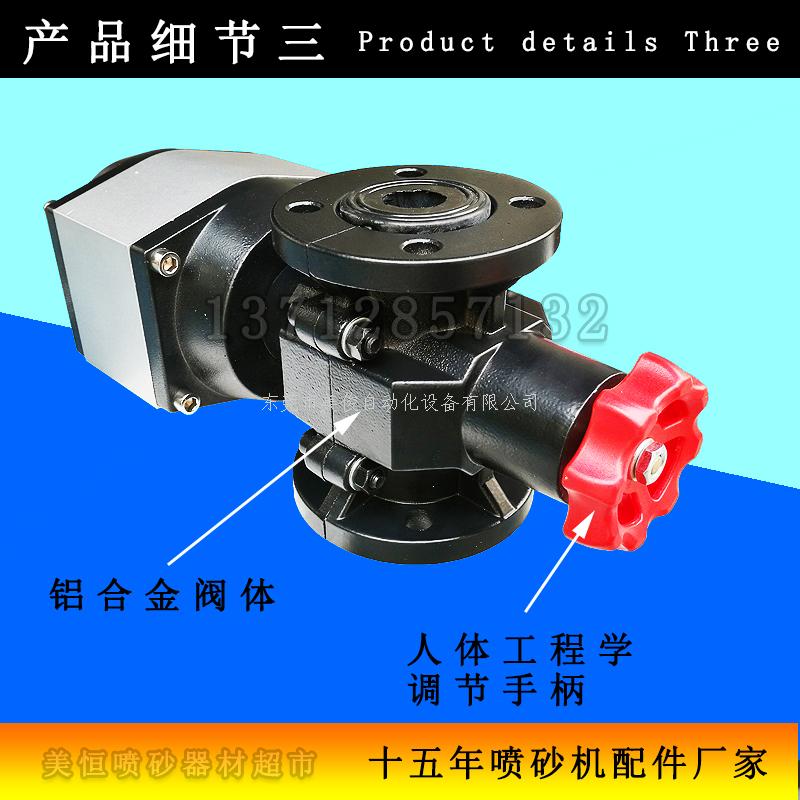

C3 valve physical image display:
