Blast Hose Quick Coupling, Long Grab Quick Coupling, Sand Tube Connection Head, Blast Hose Claw Fitting

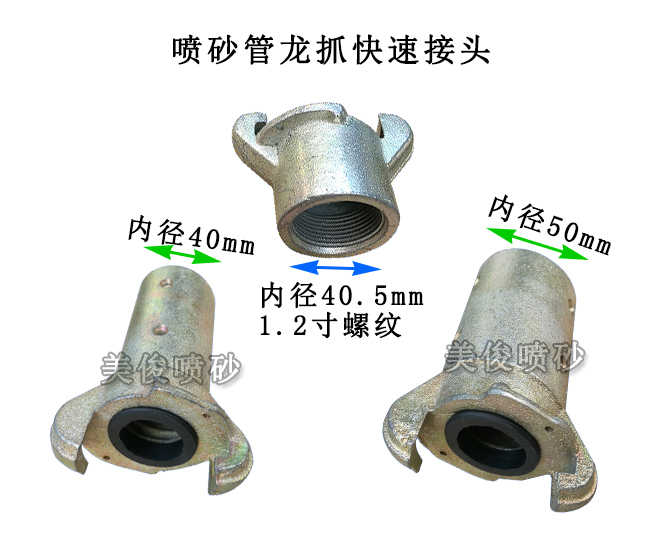

Sand blasting pipe quick connector, sandblasting gun connector, dragon grab connector:

Standard connector, common in the market.

Sand pipe quick connector size:

1) 1 inch 2 connectors:

It is suitable for the connection of standard sandblasting pipes with an inner diameter of 32MM and an outer diameter of 48-50MM.

2) One inch connector:

It is suitable for the connection of standard sandblasting pipes with an inner diameter of 25mm and an outer diameter of 40mm.

The material is divided into two kinds of nylon and cast iron

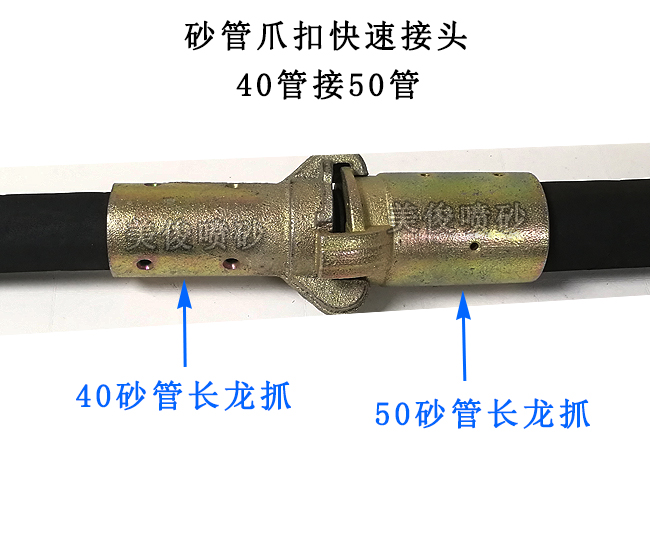

Parts used: The pipe-to-pipe connection of the sandblasting pipe and the connection between the sand pipe and the sand outlet tee.

For other sizes of sand pipe joints, please click the link below     non-standard sandblasting pipe, gas pipe quick joint

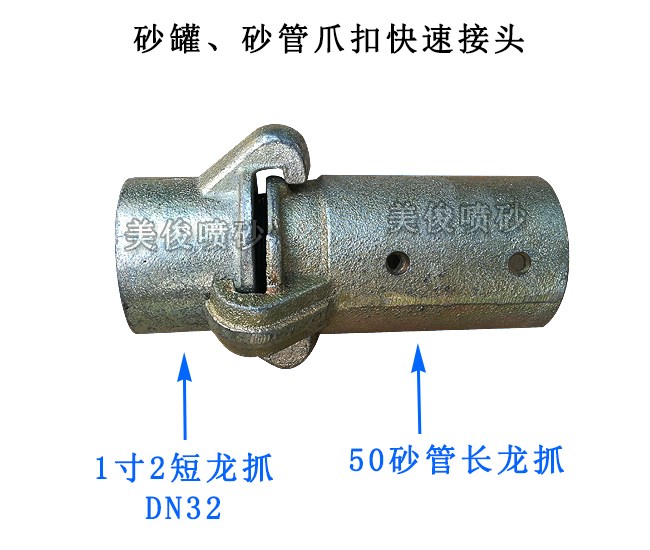

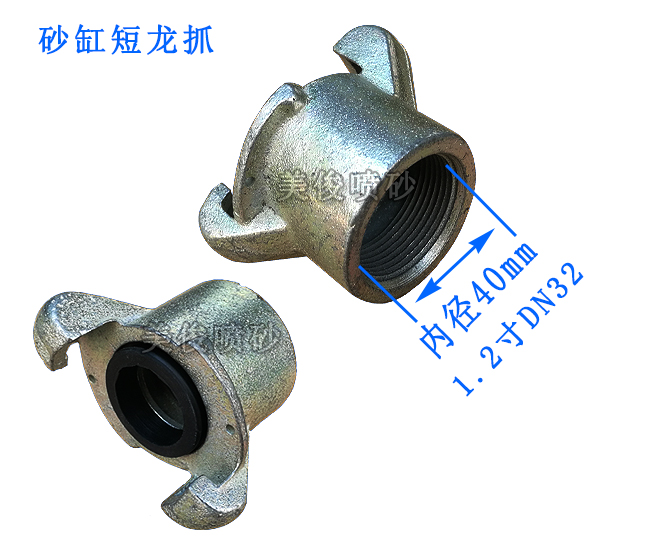

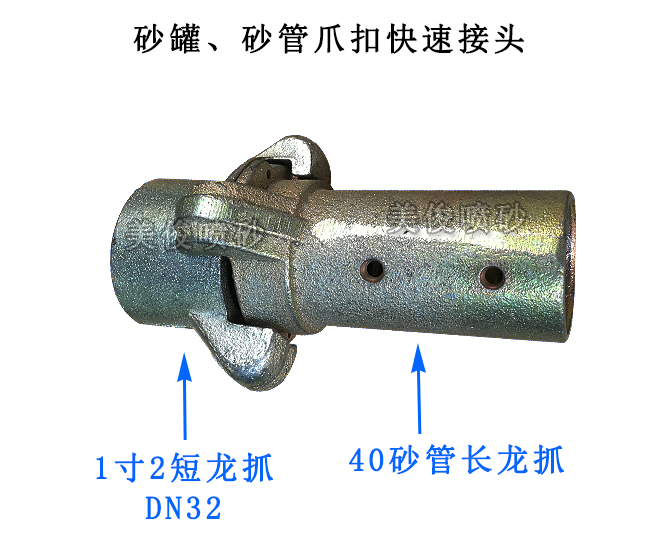

Sand Tank Quick Connector:

There is only one size, 1-1/4" inner thread, which is connected with the sand outlet tee, and is used for the connection of the sand outlet tee and the sand pipe.

Blast Gun Connector:

There are two types of materials: nylon and cast steel.

According to the size of the connecting sand pipe: there are 2 kinds of standard joints

1) 1 inch 2 connectors:

It is suitable for the connection of standard sandblasting pipes with an inner diameter of 32MM and an outer diameter of 48-50MM.

2) One inch connector:

It is suitable for the connection of standard sandblasting pipes with an inner diameter of 25mm and an outer diameter of 40mm.

It can be applied to most of the double-inlet sandblasting guns and single-inlet sandblasting guns on the market.

According to the thread of the sand gun joint connecting the sand blasting gun:

There are two kinds of coarse teeth and fine teeth

Fine pitch: standard inch thread 1-1, 4, 11-1, 2 N.P.S.M. (1 inch 2 pipe thread)

Coarse Thread: Thread  2 ,4-1, 2 U.N.C.(International rib)
