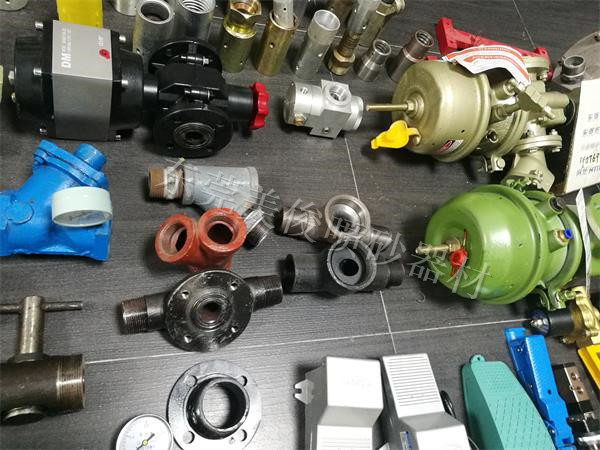

Siphon Blast Accessories

High-pressure sandblasting pipe, air pipe, sand suction pipe, buried suction pipe, organ pipe, air-controlled sand control valve, manual sand control valve, air control switch, foot switch, electric control switch, air pump, water sand pump,Explosion-proof light,door handle, pressure regulating valve, sand regulating valve, water filter, air filter, temperature regulating pipe , air conditioner, , 45 degree sand tee, sand pipe quick connector (long grab), sand gun connector, air core, sand core and other accessories

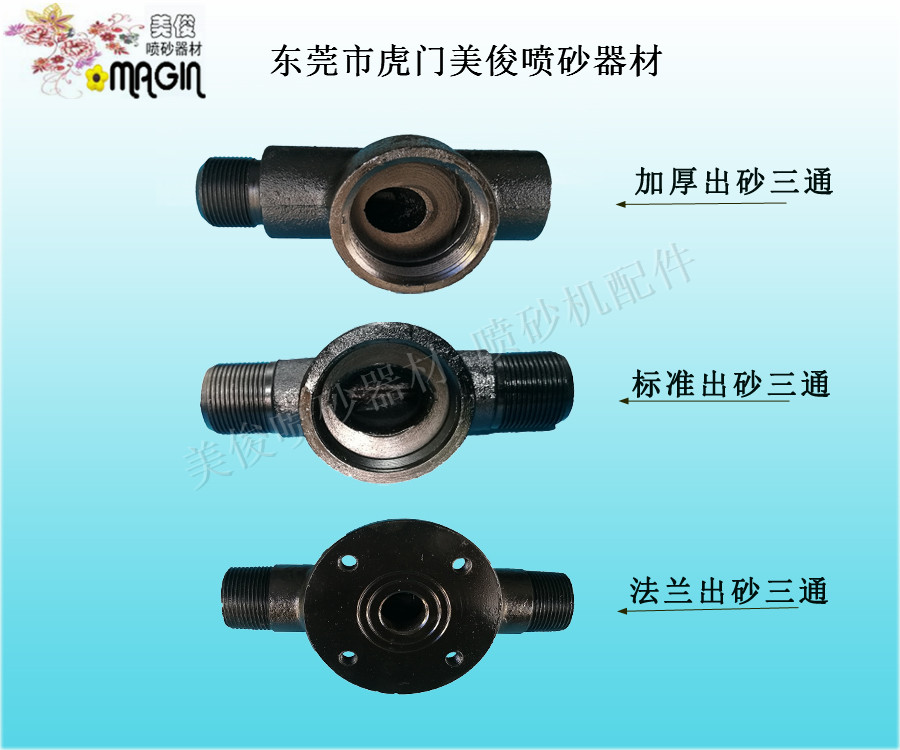

Sand Tee

1. traditional vertical falling sand tee,thin wall thickness,Easy to wear,The northern sandblasting machine factory usually uses this 90 Sand Tee for Vertical Shattering.

   The disadvantage is due to the use of vertical falling sand,Once the pressure inside and outside the tank is unbalanced ,easy to block sand.



2. The inner hole produced by Meijun sandblasting equipment is 45 degrees,Casting Type Thickening Sand Tee:

   Thickened sand tee :

   cast iron,thick casting,Above2inch inner teeth(Universal plumbing teeth),Anterior external teeth1.2inch(Sand tank Adapter or Adapter) ,followed by1.2inner inch tooth with air supply tube.

   The sand outlet tee of many companies is integrally connected with the sand valve,Once damaged must be replaced in full set,For the convenience of customer replacement Cost savings ,Separate the tee now,and improve it,

   Increase bottom wall thickness,Increase wear time,At the same time, change the inner tee from the original one 90degree vertical change to45degree bevel,The purpose is to form a same-direction airflow path with the airflow coming from behind,

   Increase the effective power of particles in the sand valve,Reduces sand bounce and swirl at the bottom of the sand valve,reduce fewer pairs of tees Wear and sand tank joints,

3. Shaping Tee:

   Mainly usedCLEMCOClaremont's sanding valve,Because the original sand valve is equipped with45degree overhaul tee,In order to install the sand tube,required 45 degreesYShaped tee to correct him back,That's all.(If the original sand valve is not installed 45 Overhaul tee,no needYtype tee)
