Dongguan Humen Meijun Sandblasting Equipment Store specializes in the production and sales of sand pipe quick joints - dragon claw - sand tank joints - sand gun joints - sandblasting machine pipe connectors

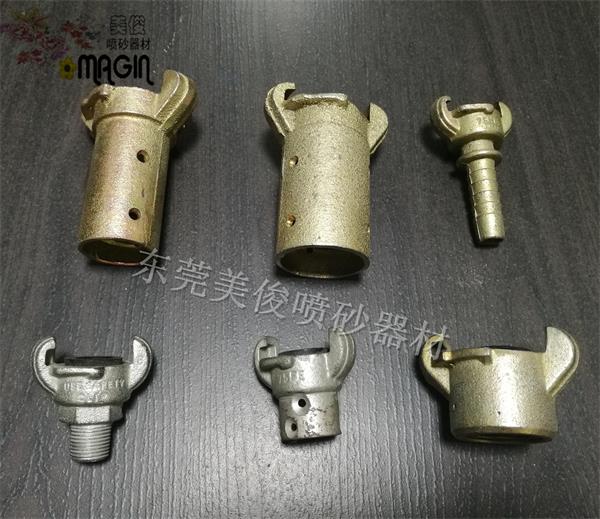

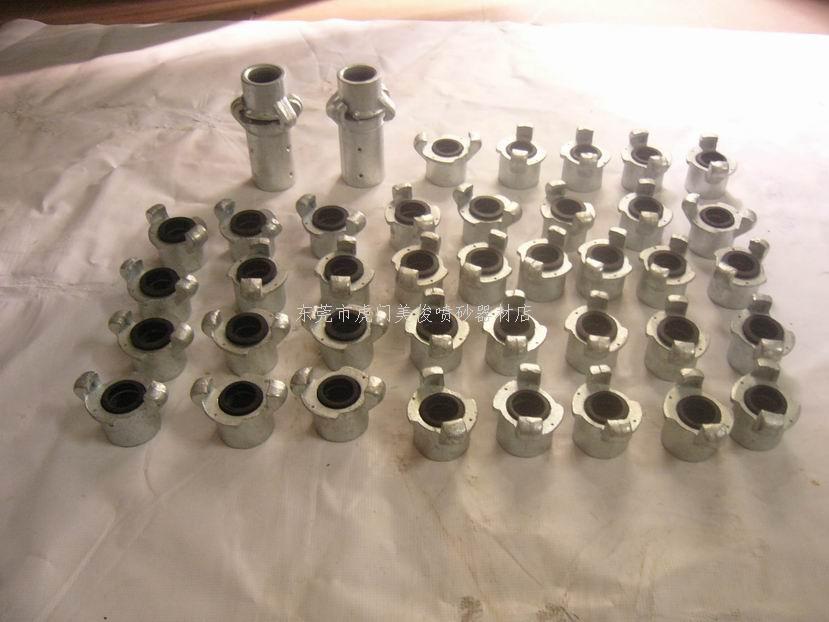

Sand Tube Quick Connector Sandblast Gun Connector:

Blast tube Quick Connector|Sand Tube Quick Connector|dragonclaws|Sand tube connector|Sand Gun Connector

Standard splice, Common to the market.

Blast Hose Quick Connector Size:

1) One ​​inch two connectors: 1-1/4”Internal Connector

Suitable for blast tube inner diameter32MM,Outer Diameter48-50MMStandard blast pipe connection using .

2)One ​​inch connector:

Suitable for blast tube inner diameter25MM,outer diameter40mmfor standard blasting pipe connections span>

The material is divided into nylon and cast iron

use parts: The pipe-to-pipe connection of the blast pipe and the connection between the blast pipe and the sand outlet tee.

For other sizes of sand pipe joints, please click the following connection Non-standard sandblasting pipe, gas pipe quick joint

Sand tank quick connector:

only one size,1-1/4"Internal teeth,with sand tee Connection,connection for sand outlet tee and sand pipe.

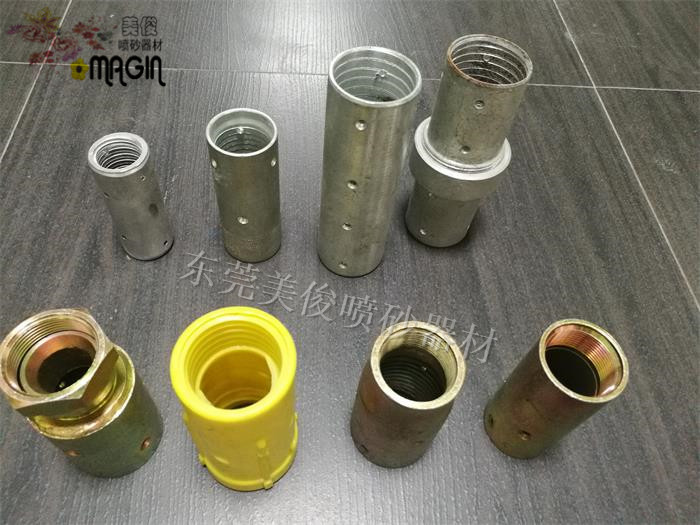

Blast Gun Connector:

There are two types of materials: nylon and cast steel.

Classified by the size of the connecting sand pipe:Standard connectors have2types

1)1inch2connector:

Suitable for blast tube inner diameter32MM,Outer Diameter48-50MMStandard blast pipe connection using .

2)One ​​inch connector:

Suitable for blast tube inner diameter25MM,outer diameter40mmfor standard blasting pipe connections span>

Can be applied to most of the dual-inlet sandblasting guns and single-inlet sandblasting guns on the market.

Classified by the thread of the blasting gun connector to connect the blasting gun:

There are two kinds of coarse teeth and fine teeth

fine teeth: Standard imperial thread 1-1, 4 ,11-1, 2 NPSM (1inch2pipe thread)

Rough teeth: Thread 2 ,4-1, 2 UNC(International Rib)
