Manual sand control valve H003 |

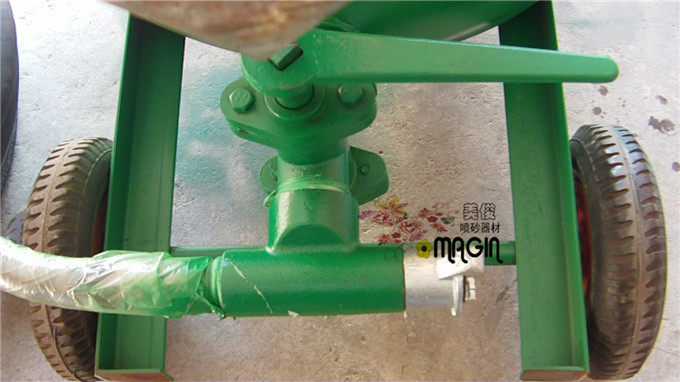

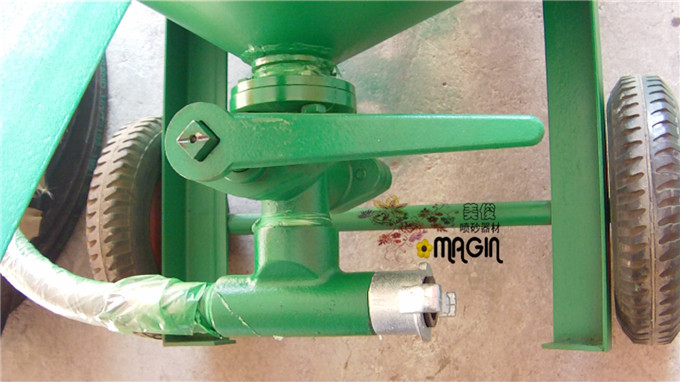

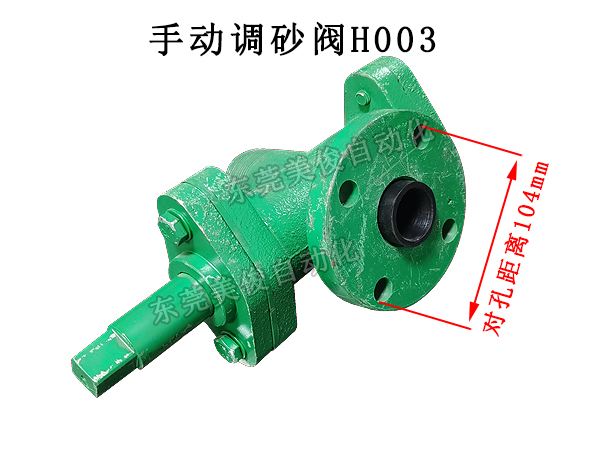

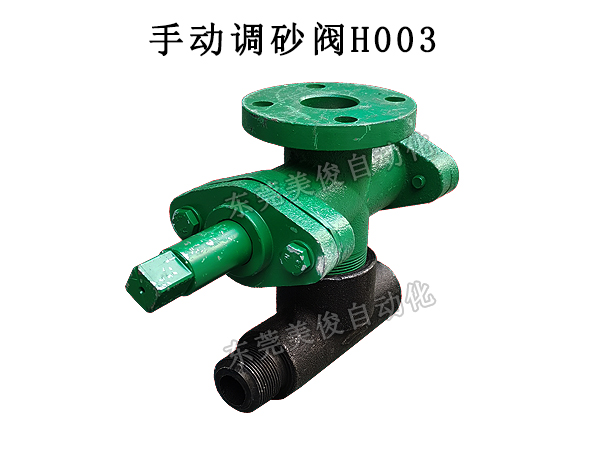

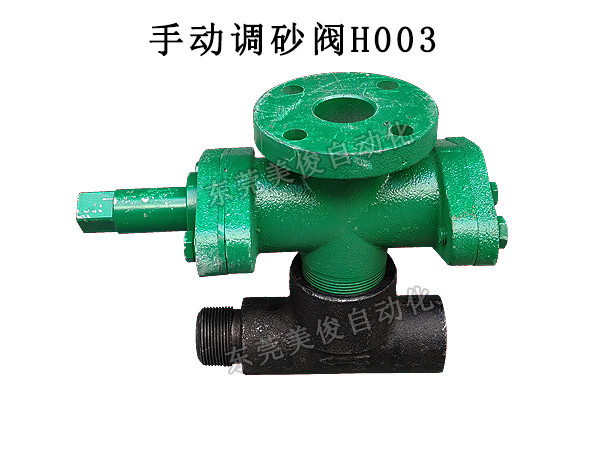

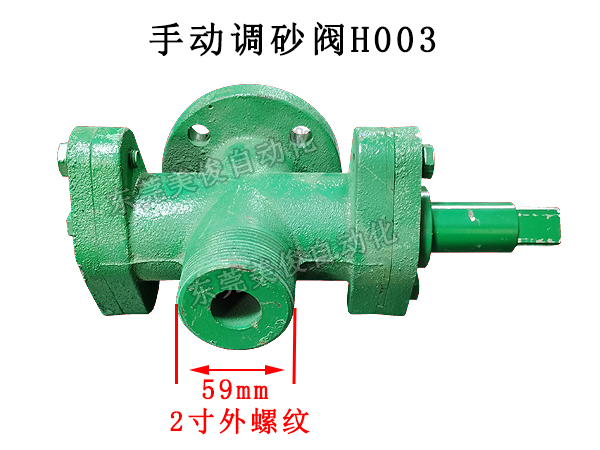

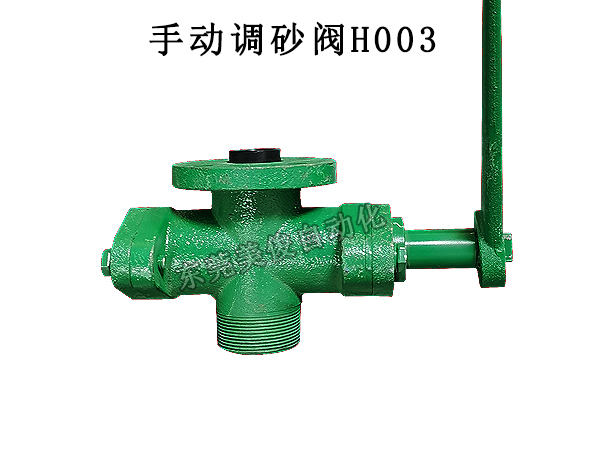

Manual sand control valve H003:
Flange type manual sand control valve is suitable for pressure type sand blasting machine with outer diameter 50MM 40MM sand blasting pipe,
After installing the adapter, it is also suitable for sandblasting pipes with an outer diameter of 32MM and 28MM.
Features: valve type adjustment, there is a wear-resistant rubber core in the middle to protect the rotating shaft, the wear is slow, the hand lever is convenient and accurate, it can be directly adjusted during use, and it can be large or small. The diameter of the shaft core is 28MM, and the flow rate is large.
Used in conjunction with the automatic exhaust valve (pressure relief assembly), it can effectively reduce the pulse phenomenon in the sandblasting process (that is, the amount of sand is suddenly large and small, either the air can be released without sand, or the amount of sand is particularly large and the sand is weak).
Other manual sand valve tips:
Manual butterfly sand control valve: suitable for sandblasting pipes with an outer diameter of 32MM and 28MM.
