Manual sand control valve, maintenance valve, sand discharge valve, sand drop valve, sand volume control valve, sand control valve

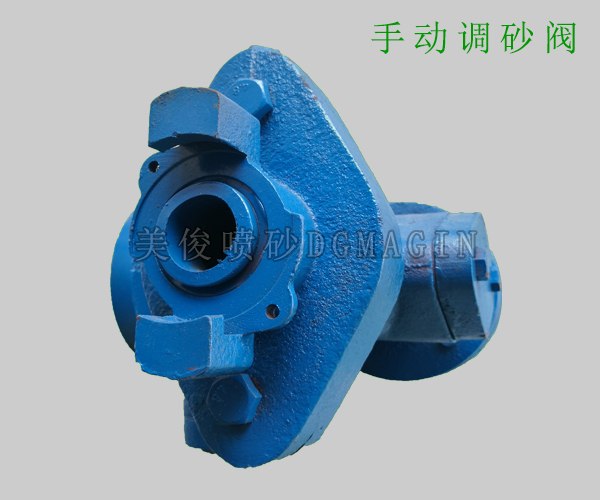

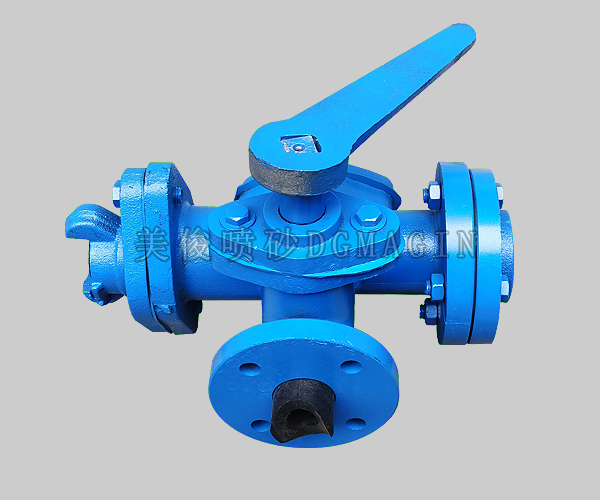

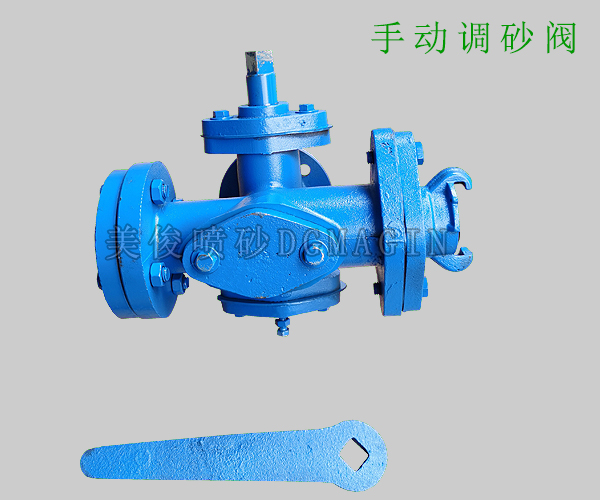

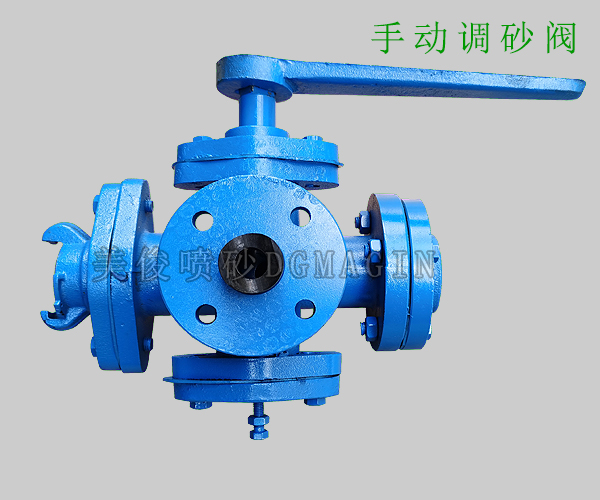

Meijun H004  Large Manual Sand Control Valve

Features:

1) Internal structure of H004 large manual sand regulating valve and H003 manual sand valve Same, use the same black half-crescent wear-resistant rubber core;

2) The difference is the sand outlet tee of H004 large manual sand control valve It is one piece, not separated like the 003 model. At the same time, the H004 model has a removable cover at the bottom of the tee, which is used to repair and clean the inside of the sand valve.

This is very convenient for customers who often block sand. Very attractive, because the sand can be cleaned without dismantling the valve body.

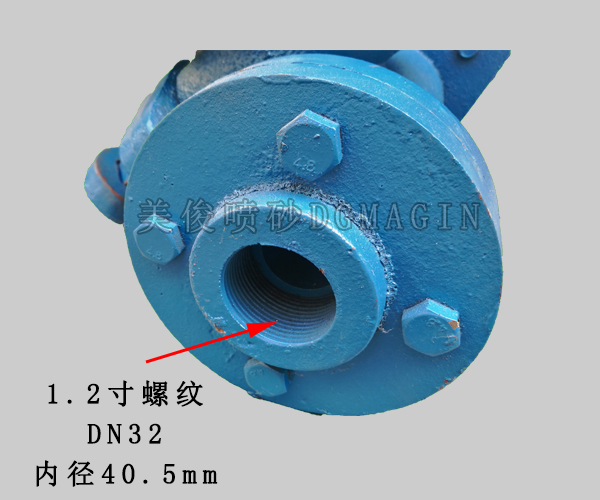

3) The front end of the valve is connected to the sand pipe with its own flange interface. The cylinder joint can be easily installed with the sand pipe joint on the sand pipe without turning the sand pipe, which is a little convenient.
