    Drum Type Sand Blast Machine Shot Blast Machine Crawler Type Sand Blast Machine

    Dongguan Meijun drum type, crawler type sandblasting machine, automatic shot blasting machine parameters, features, applications, models, pictures

    The company began to specialize in sandblasting processing and sales of various sandblasting materials and accessories in 2004. It is a comprehensive enterprise integrating production and sales.

    Crawler type sand blasting machine, crawler type shot blasting machine, automatic sand blasting machine, automatic shot blasting machine, burr processing machine, environmental protection shot blasting machine, burr sand blasting machine, burr cleaning equipment, Mao Feng cleaning machine, Mao Feng Cleaner

    【Crawler Sandblaster】Features:
    1. The upper cyclone is separated, the dust removal split mechanism has high working efficiency, and the bag dust removal effect is good
    2. Low working noise and no dust spillage;
    3. Automatic recovery of abrasives, good sorting effect and low operating cost;
    4. The effect of spraying on special-shaped parts is uniform;
    5. No other installation required, easy to operate.
    Scope of application:
    1. Various small and medium workpieces, continuous production in large quantities;
    2. It is suitable for deburring, residue and oil stains of various types of die-casting, small hardware or non-metallic products into matt effect or glossy effect.

    MJLDP600-5J Crawler sandblasting machine parameters:

    Host size:1200X1213X1800(mm)

    Machine working capacity:100kg

    Machine net weight: 700kg

    Electronic source 380V 50HZ

    dust box motor 380V 50HZ 2200W

    Gun Swing Reducer 0.4KW 1:20

    Gun Move Reducer 1.5KW 1:40

    Spray Gun: optional (ABCD)5put the < /span>

    Compressed air source 27bar(kgcm2)56m3min

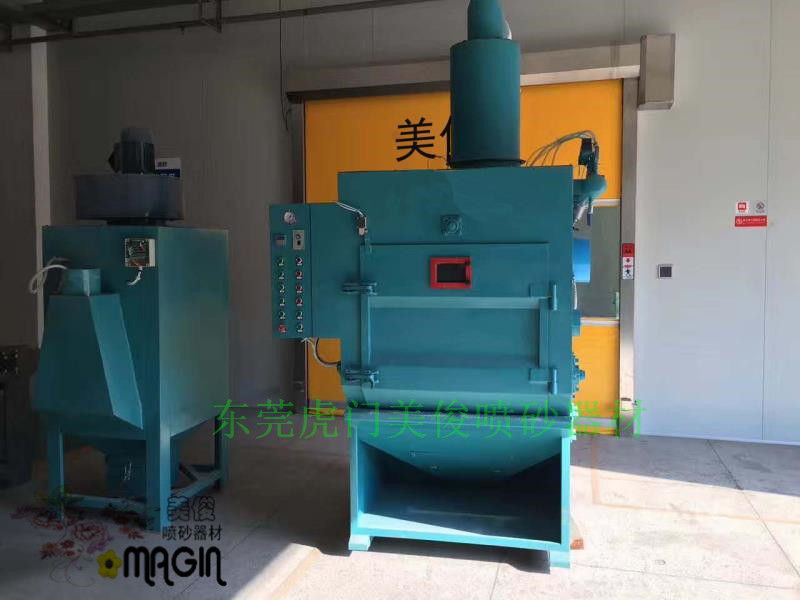

    Crawler sand blasting machine, automatic sand blasting machine, burr shot blasting machine


    Dust removal method Bag type dust removal box, using pneumatic automatic dust removal (36 bag dust removal boxes
    Dimensions of the host (cover area) (length X width X height) 1500X1300X2500 (mm)

    Selection of sandblasting equipment :
    1. Choice of sandblasting effects:
    Generally speaking, the blasting effect is mainly determined by the blasting medium (abrasive), which can range from metal abrasives with strong effects to resin abrasives with soft effects. At the same time, dry blasting and wet blasting are also key considerations. Customers can bring the workpiece to test like sure.
    2. Production efficiency determines the type of equipment:
    According to the processing capacity, choose automatic sandblasting production line, semi-automatic sandblasting equipment, pressure sandblasting machine and general pressure sandblasting machine.
    3. Workpiece size determines equipment specifications:
    The size of the nacelle is selected according to the workpiece size so that there is enough space to complete the processing work.
    4. Compressed Air Requirements:
    Determine the capacity of the air compressor according to the equipment specifications, and leave a margin of 20 to protect the service life of the air compressor.

    Free product quality assurance for one year (except wearing parts), product lifetime maintenance, free technical guidance; Provide professional consulting services for product updates and functional improvements;

    Long-term inventory of surface treatment equipment and product parts, ready to meet the needs of users to quickly repair and replace parts;

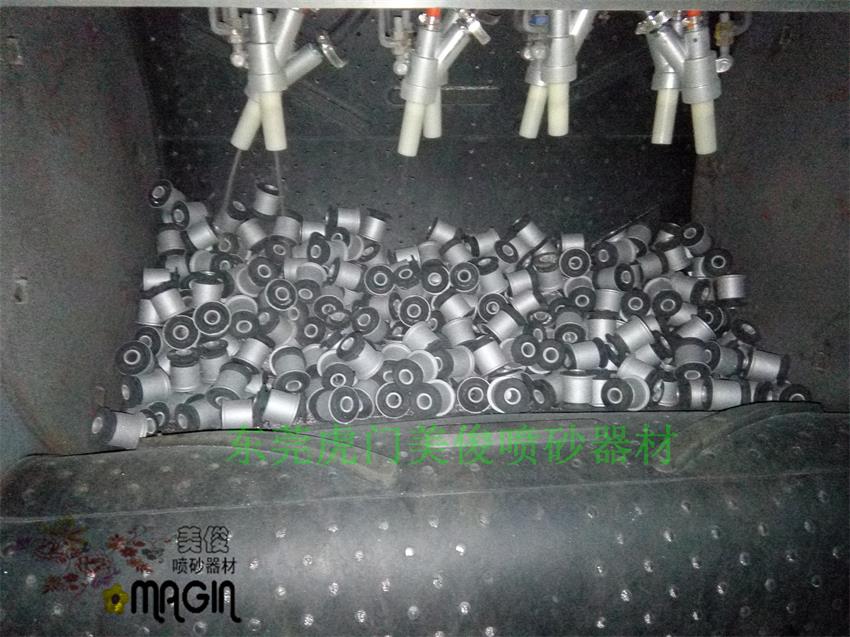

    Drum blasting machine, crawler blasting machine

    Meijun Double Gun Roller (Rolling Blue) Automatic Sandblasting Machine Features:

    1.The sand speed of this model is more than double that of the general suction sand blasting machine;

    2.Automatic control, automatic sandblasting, with timing sandblasting, jog positioning and other functions;

    3.The rotating speed of Meijun drum (rolling blue) adopts frequency conversion speed regulation, which runs smoothly and can meet different processing needs; the spray gun adopts a swing mechanism,

    4.Have timing automatic sandblasting, jog positioning function;

    5.Easy loading and unloading of workpieces, simple operation, saving human resources;

    6.The size of the roller and the number of spray guns can be set according to customer requirements;

    7.Suitable for mass production of small workpieces, such as zipper heads, screws, etc. Scope of application: It is used for batch processing of small hardware, gears, saw blades, and round shafts. The rollers and rollers are automatically rotated, and the loading and unloading is convenient and efficient. The spray gun can be manual or automatic. It is also suitable for plastic products such as skeleton switches IC electronic plug-ins, and can also be customized according to user needs

    8.The sandblasting time can be set as required, with automatic sandblasting at regular intervals and jog positioning function; it can be customized according to customer requirements; it is suitable for small hardware and plastic parts Batch processing, high sandblasting efficiency, and the blasting operation can be manual or automatic.

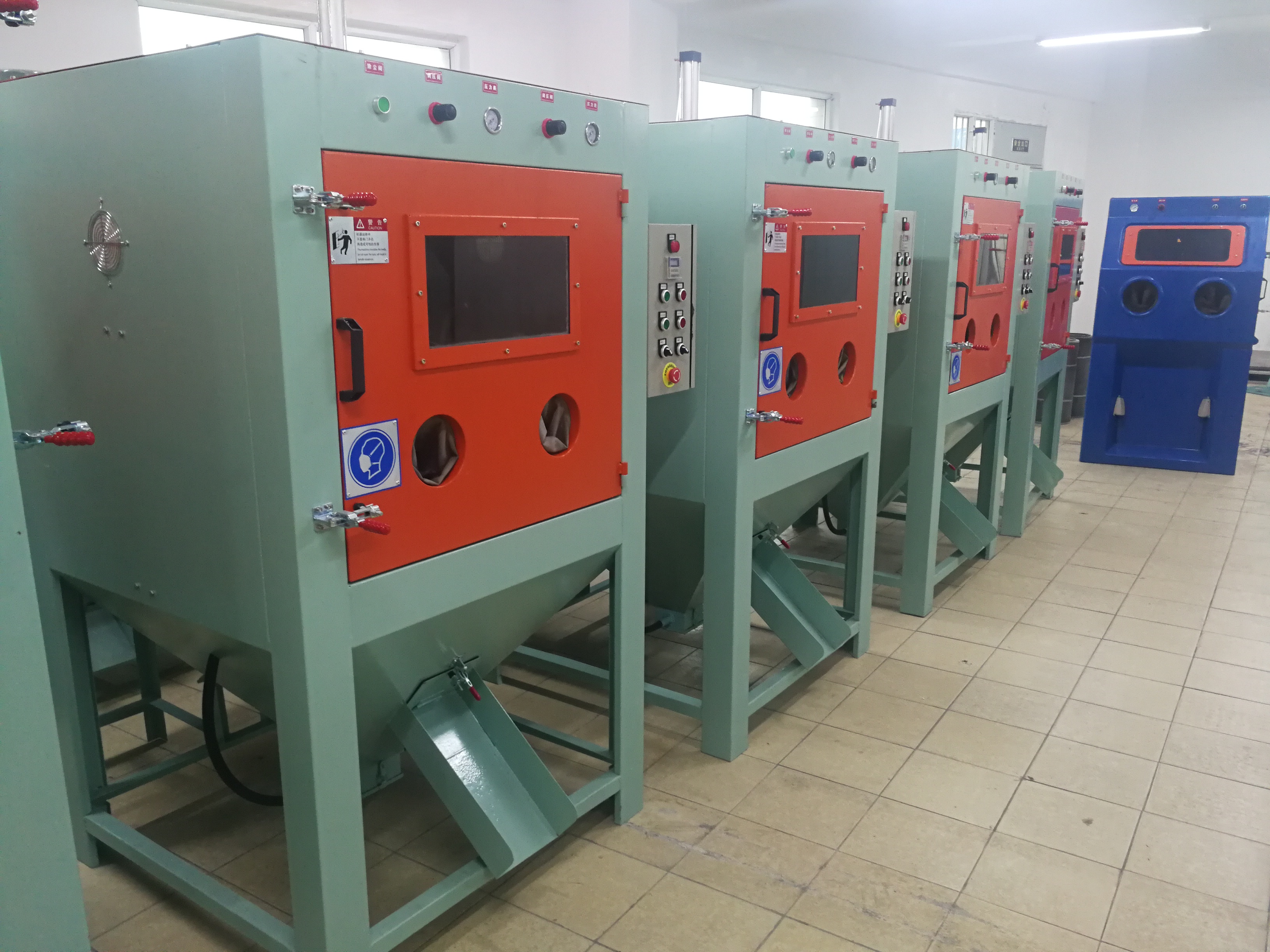

    Automatic sandblasting machine, rolling blue spray Sand machine, environmental protection sandblasting machine

    Equipment dimensions: L1000mm*W800mm*1950mm (length*width*high)
    Internal dimensions of equipment compartment: 900mm*800mm*780mm (length*width*high)
    Roller size: 500mm (diameter) (20-30kg) can be equipped according to customer's workpiece size Roll Blue
    Gun Specifications: (20*8*60mm)2 wear-resistant sandblasting guns< span lang="EN-US">
    Roller speed: 8 to /min (can be installed with frequency conversion speed regulation)
    Roller Motor: 380V/50HZ/400W
    Dedusting motor: 380V/50HZ/550W
    Air supply requirements: pressure 2-7bar(kg/cm2)
    Compressed flow: 1.5-2.0m3/min
    Steel thickness: 2- 5mm
    Goggle Frame: 1
    Operation opening: 2
    Blast Gloves: 1pair
    Single processing: 1-20KG
    Machine Light: 220V 13WLEDExplosion-proof Energy Saving Lamp
    Separator air volume: 12m3/min
    Total weight of equipment: 300KG
    Total volume of equipment: 3m3
    Total equipment power: 380V/50HZ/1100W
    Dust removal method: bag type dust box ( can be equipped with secondary filter zero emission dust removal)

    Scope

    Electronic Hardware,ABSPlastic,Acrylic, Resin and other workpieces or handicraft sandblasting. Five-gun automatic rotary liquid sandblasting machine, suitable for small batch production of large and medium-sized parts.

    Above models

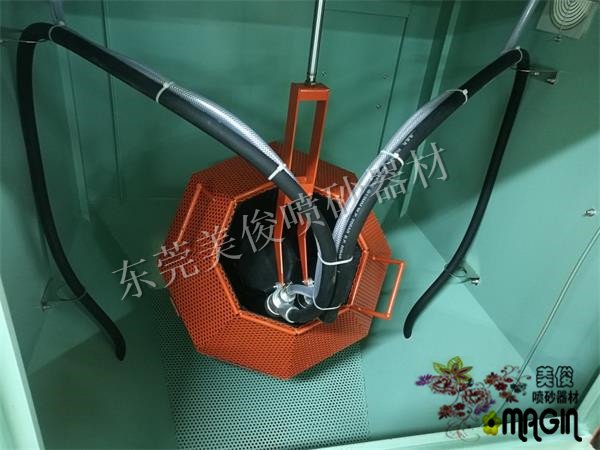

    Roller sandblasting machine, rolling blue sandblasting machine, hardware sandblasting
