Pressurized Tank:       ;     diameter320mm*height650mm

Workbench weight:       ;  200kg

Squeeze break  empty  breath source:    Pressure5-8bar(kg/cm2)Flow 2-3m3/minDry compressed air

Meijun Automation Equipment Co., Ltd. specializes in the production and maintenance of various, manual, automatic sandblasting machines, mobile sandblasting machines,

Pressurized sandblasting machine, open sandblasting machine, liquid sandblasting machine, dry sandblasting machine, shot blasting machine, air compressor. Sand blasting machine (shot blasting)

Machine) accessories: spray gun, boron carbide nozzle, sand pipe, gloves, sandblasting suit. Sand blasting machine (shot blasting machine) sand material: glass beads,

White corundum, brown corundum, black corundum, steel grit, stainless steel shot. (undertake all kinds of large and small sandblasting, shot blasting),

All electrical control components and main parts are imported. Stable quality, easy operation and perfect after-sales service.

MG-XY1010D sandblasting machine application:

(1) Pretreatment of workpiece coating and workpiece bonding :

 Sand blasting can remove all dirt such as rust on the surface of the workpiece, and establish a very important

The basic pattern (that is, the so-called rough surface), and can be achieved by exchanging abrasives with different particle sizes.

The roughness of the workpiece greatly improves the bonding force between the workpiece and the paint and plating. Or make the bonding parts more firmly bonded,

better quality.
(2) Cleaning and polishing of rough surfaces of castings and forgings and workpieces after heat treatment :
Sand blasting can clean all the dirt on the surface of castings and forgings and workpieces after heat treatment (such as oxide scale, oil and other residues)

object), and polish the surface of the workpiece improve the finish of the workpiece, and play a role in beautifying the workpiece. sand blast cleaning

Make the workpiece reveal a uniform and consistent metal color, make the appearance of the workpiece more beautiful, and achieve the role of beautification and decoration.
(3) Burr cleaning and surface beautification of machined parts :
Sandblasting can clean the tiny burrs on the surface of the workpiece and make the surface of the workpiece smoother, eliminating the danger of burrs.

Harm, improve the grade of the workpiece.  And sandblasting can make small rounded corners at the junction of the workpiece surface, making the workpiece

It looks more beautiful and more precise.
(4) Improve the mechanical properties of the parts :
After the mechanical parts are sandblasted, a uniform and fine concave and convex surface (basic pattern) can be generated on the surface of the parts, so that the

Lubricating oil is stored, resulting in improved lubricating conditions and reduced noise to increase machine life.

  The principle of sandblasting machine:

  The manual sandblasting machine is powered by compressed air to form a high-speed spray beam to spray the spray material to the required

A machine that treats the surface of the workpiece to change the mechanical properties of the outer surface of the workpiece surface.

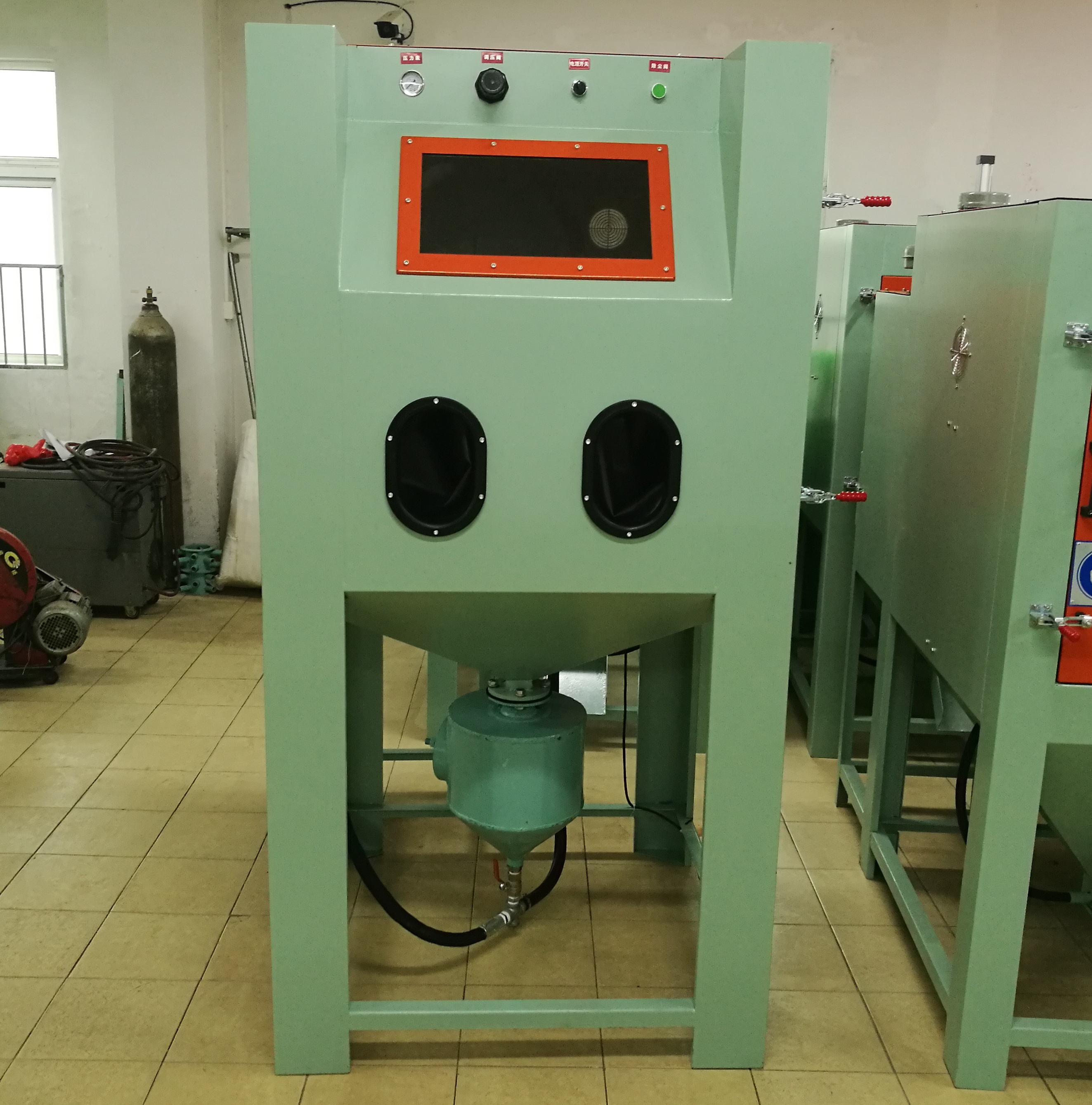

The main structure:

1. Box. The box is one of the main components of the sandblasting machine, so the name of the box means the box, the box

The size of the product is determined according to the size of the product. For example: if your workpiece is 400 long, 200 wide and 300 high, then the box you choose

The body is less than 600 long, 400 wide and 550 high. Of course, there is no such model in the market. Most manufacturers have box-type sandblasting.

There are several standard models of the machine, and this model can be selected. If it is a larger size, such as more than 1 meter, it is generally

Non-standard models need to be customized, so when you choose the cabinet, try to choose the standard one, because the price is lower than the non-standard one

The price is much lower.
  2. Dust removal fans and box-type sandblasting machines have separate dust collectors, some have to have separate dust collectors, but whether with or without dust collectors

There must be a dust removal fan. If there is no dust removal fan, the box cannot be seen at all, and it cannot work.

There are three kinds, put it directly behind the box, make a hole in the back of the box, and put it on top of the cyclone separator.

The air separator is the cylinder that separates the sand and dust.

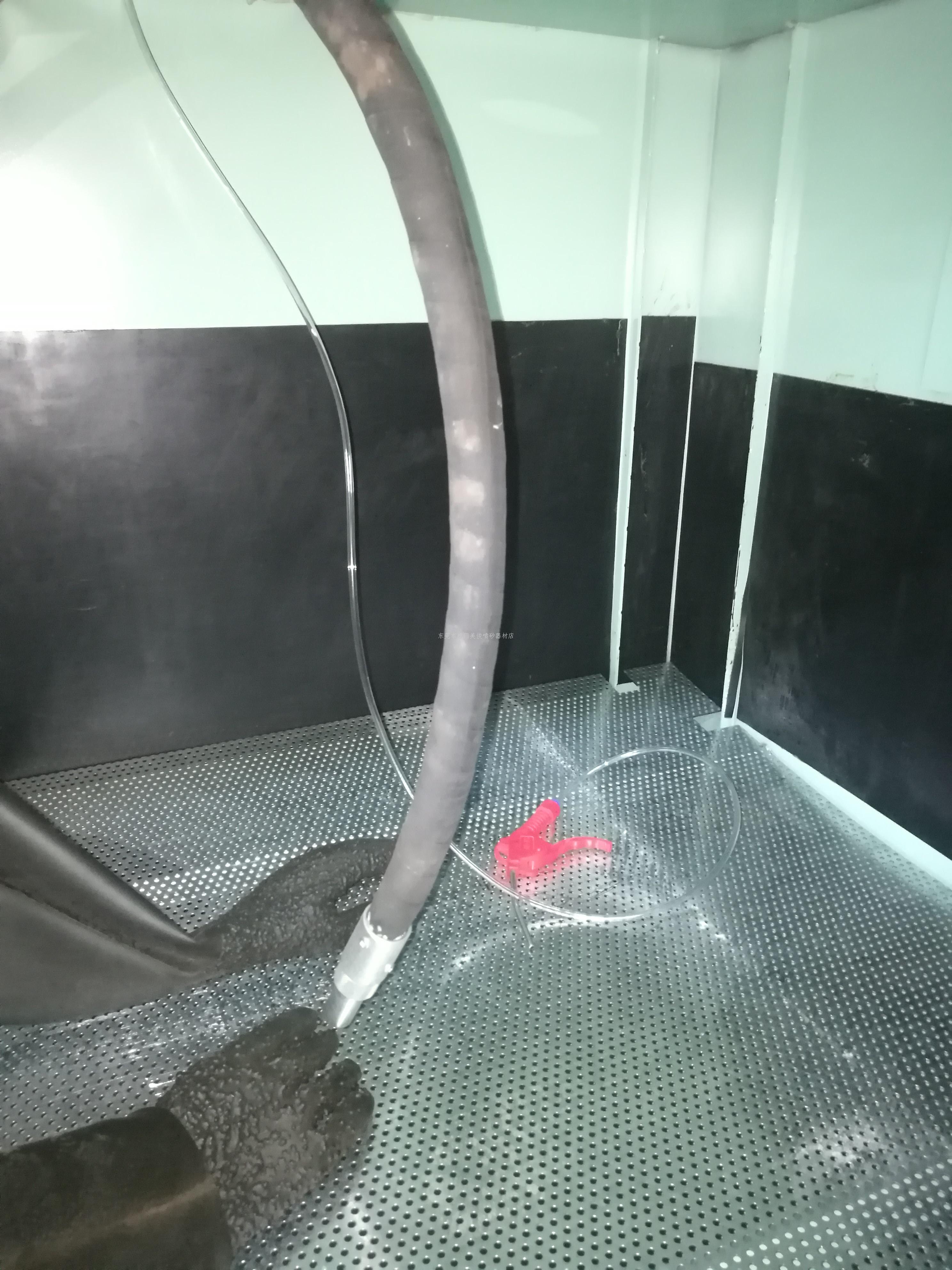

  3, spray gun. The main part of the sandblasting machine, it can be said that there is no sandblasting machine without the spray gun. Most of the box-type sandblasting machines

The siphon type (negative pressure type) spray gun is used, such as general spray gun, KL spray gun. KL (Carle type) spray gun switch is in the spray gun

It can save a solenoid valve, but it is rarely used in the market and has little use. The components of the spray gun have sand cores.

Air Core
  4. Solenoid valve. The solenoid valve of the box-type sandblasting machine generally adopts a solenoid valve with a 4-point interface.

The main function is to switch the gas.

5. Pressure regulating filters, some manufacturers do not directly use pressure regulating filters, but separate pressure regulating filters.

Same effect for regulators and filters.

   1. Depending on the size of the workpiece, choose a box-type sandblasting machine, a mobile sandblasting machine, and an automatic sandblasting machine;

Don't make it to order or choose open  open type.

   3. The degree of surface requirements of the product depends on whether dry spray or wet spray is used.

There are many choices of materials, wet spray usually glass sand and so on.

In fact, the wear is very serious.
