    Orbital turntable automatic sandblasting machine 1200D

    Orbital turntable automatic sandblasting machine is efficient, energy-saving and labor-saving No harm to human body and environment,The spray gun, accessories on Meijun automatic sandblasting machine are all imported materials Long service life,guaranteed quality.

    Meijun sandblasting machines are sold to all parts of the country:Fujian, Hebei, Zhejiang, Guangxi, Jiangxi, Sichuan, etc. China's north and south are all in Meijun's machines,The trust of customers is the strong support for Meijun.

    Orbital turntable automatic sandblasting machine is mainly suitable for : machinery, automobile and motorcycle accessories, locks, hardware tools, molds, glass, ceramics, wood carving, stone tombstone carving and roughening, Plastic products, handicrafts, heavy industry rust removal, ship anticorrosion, old parts refurbishment and other industries, can remove the oxide skin, residue and burr of casting blanks, forging, stamping, welding, heat treatment and machined parts, glass three-dimensional carving, spraying and other processes .Also subject to lumber mills, tile mills (tile background walls).

    Orbital Turntable Automatic Sandblasting Machine Specifications:

    Working Pressure    45-55 bar

    Conveyor line width    700MM

    Number of blasting guns 8pcs

    Dimensions    3500*900*3000MM

    Working Size    3200*850*1350MM

    Separator  220V/50HZ/980W

    Separator Air Volume 28m3/min

    Dust Box  1150*1350*1705MM

    Auxiliary dust box 700*630*1580MM

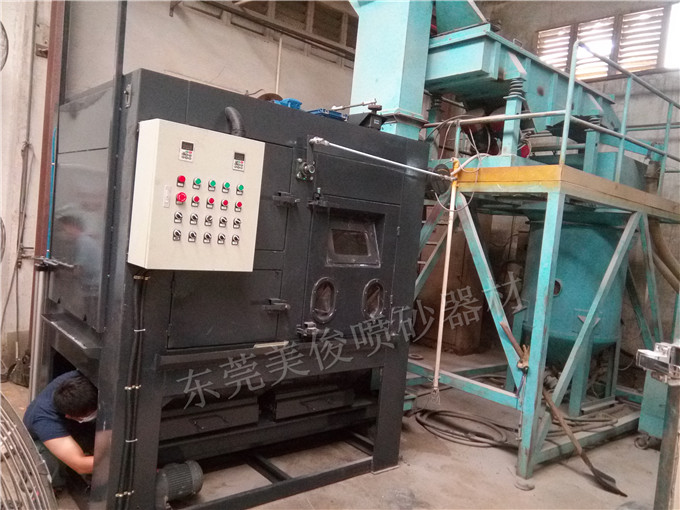

     Auto Turntable Sand Blasting Machine

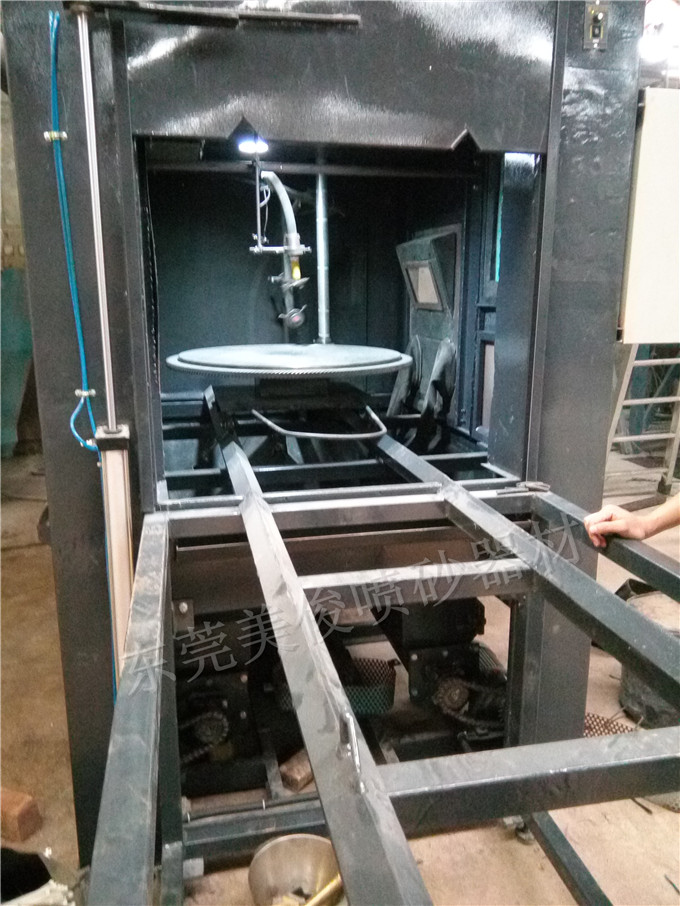

    Orbital automatic sandblasting machine

    Features:

    1. Integrated structure, all stainless steel production;

    2. The workpiece is conveyed by track roller type, and the line speed is adjustable by frequency conversion;

    3. Multi-gun automatic swing shooting, swing amplitude variable frequency adjustable;

    4. Automatic circulation after mixing of abrasive and liquid, no clogging;

    5. The spray effect is uniform, stable and efficient;

    6. Unique cleaning and drying device;

    7. The latest research and development of cast aluminum (and outsourcing polyurethane) grinding fluid pump is adopted, which has high efficiency, durable wear resistance, and its service life is several times that of ordinary conventional sand pumps.;

    8. PLC centralized control system, easy operation, good stability and low maintenance rate;

    9. Wet blasting, no dust, environmental protection, precise blasting effect;

    10. Suitable for mass blasting processing;







    Meijun brand series dry and water sandblasting machines have a wide variety of models and are mainly divided into two categories: general pressure and high pressure. Including box type, drum type, mobile type, turntable type, conveyor type and other manual and automatic sandblasting machines and sandblasting rooms. The product has a wide range of applications, no matter what kind of workpiece, from hull, steel structure, container, small to watch case, button, injection needle, etc.; in addition to the existing standard sandblasting machine in the production industry, it also undertakes various special-shaped The development and manufacture of sandblasting equipment can be customized according to customer requirements. The burr machines mainly include roller type coarse burr processing machines, drum type fine burr processing machines and crawler type burr processing machines improved by introducing Taiwan technology.
