The A1 type sandblasting gun in the production of Meijun sandblasting equipment is die-casting from aluminum alloy materials, and the external thread nozzle sleeve

1) A-type spray gun:

Complete products,high-quality materials,wear-resistant gun body,wear-resistant nozzle,beautiful and practical, Casting

Also known as outer rib spray gun, is divided into rib type and inline type.

A-type spray gun is commonly known as a large spray gun with ears,from the air core insertion port of the gun body to the rib opening at the bottom of the gun body, the height is 90mm,The thickness of the gun body is 36mm

Outer diameter of air core18mm,length116mm,outer diameter of air core sleeve rubber part is smaller,inner diameter4mm, Can use inner diameter 6-10mmnozzle.

There are two types of A1 type in-line type and A2 type rib type aluminum alloy sandblasting gun.

A-type sandblasting guns using polyurethane materials also include A4-type, A5-type, and A6 polyurethane-based sandblasting guns.

There is also a Taiwanese style A-type sandblasting gun. Its gun frame fixing ring (ear) is on the gun body near the sand pipe, not on the side near the trachea. We call it A8 gun.

Remarks:We have a special A6 type polyurethane sandblasting gun for large area sandblasting such as steel plate, aluminum plate, glass, etc. The shape is such as A5 gun but The overall size is more than doubled , use the boron carbide wear-resistant nozzle with inner diameter 14mm outer diameter28mm length 80mm welcome to consult !

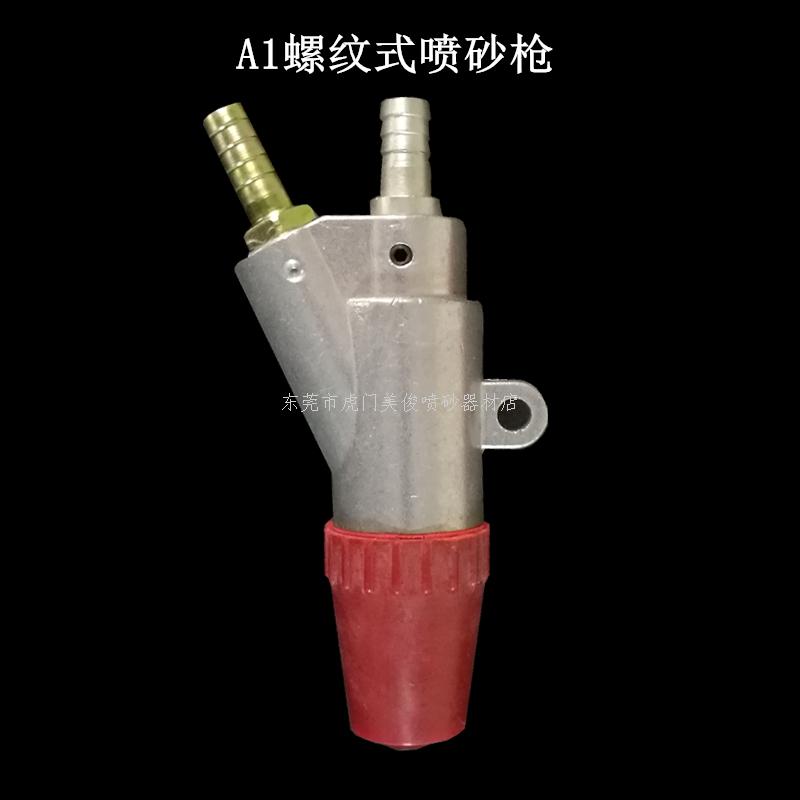

A1 sandblasting gun, A-type sandblasting gun, aluminum alloy sandblasting gun

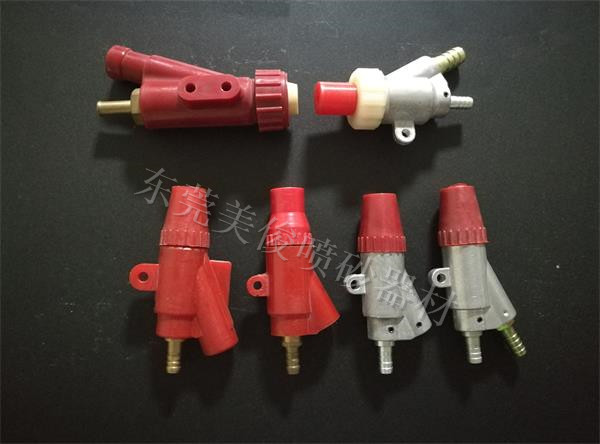

A-type sandblasting gun

Type A spray gun: commonly known as the large spray gun with ears, the length of the rib opening of the nozzle sleeve from the air core inlet to the bottom of the gun body is 9CM, and the thickness of the gun body is about 3.6CM.

The air core of the A-type spray gun is thicker, and the sand material circulation space inside the gun body is small, which is suitable for the spraying of small particle sand materials.

A-type spray gun has two kinds of outer sleeve and inner sleeve according to the method of nozzle sleeve.

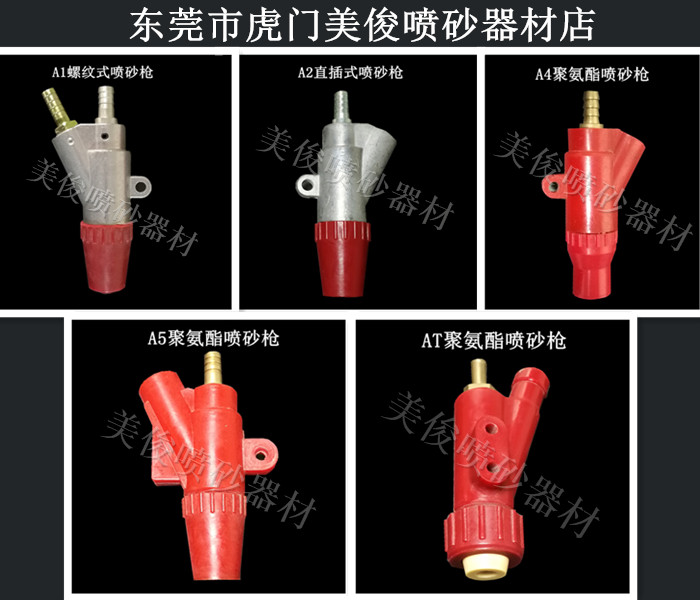

The A-type spray guns sold by our company are A1 type, A2 type, A4 type, A5 type, A6 extra large, AT polyurethane type, A9 type
