Type B Rib Sandblasting Gun

Meijun Sandblasting Equipment Magin produces all kinds of spray guns for sandblasting, which are light and easy to use, feel good in hand, and have high wear resistance. At the same time, there are various models for selection. Welcome to sample selection and use.
Sandblasting machine sandblasting gun is divided into ordinary pressure sandblasting gun and high-pressure sandblasting gun
High-pressure sandblasting gun is called high-speed sandblasting gun/double-inlet sandblasting gun/single air-inlet sandblasting gun/venturi sandblasting gun.

The general pressure spray gun is divided according to the shape of the gun body: there are A type B type C type K type G type Carel type spray gun, etc.

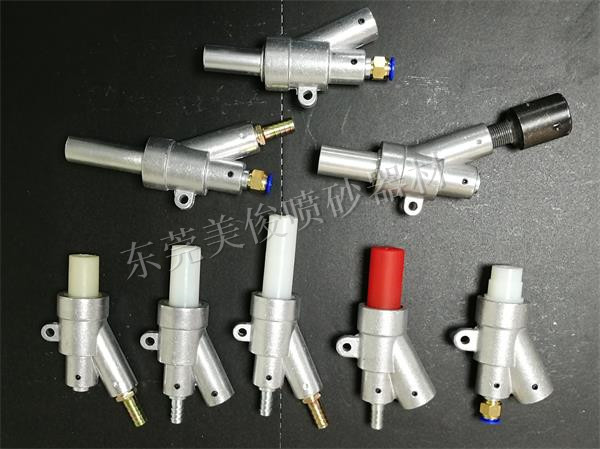

B-type sandblasting gun, negative pressure sandblasting gun, aluminum alloy sandblasting gun, Manual sandblasting gun

B-type spray gun: There are two types of in-line type and ribbed type. The surface is polished and the type is stainless steel. The length of the rib opening of the nozzle sleeve from the air core inlet to the bottom of the gun body is 9CM, and the thickness of the gun body is 4CM.

The air core is thin, and the sand material circulation space inside the gun body is large, which is suitable for the injection of large-grained sand materials.

The difference between the B-type spray gun and the A-type spray gun is that the sand core interface of the B type is 1CM longer than the air core interface.

B-type sandblasting gun, negative pressure sandblasting gun, aluminum alloy sandblasting gun, Automatic sandblasting gun, manual sandblasting gun, sandblasting gun head

Our company recommends the latest export-specific sandblasting machine B-type in-line and ribbed aluminum alloy die-casting spray guns. The body has no bubbles, and is made of aluminum alloy by one-time die-casting through a special process, with guaranteed quality and long service life. It is the best choice for users to choose and replace the spray gun. Our company recommends the latest export-specific sandblasting machine B-type in-line and rib Type aluminum alloy die-casting spray gun, this gun has a bright appearance, similar to stainless steel surface, but has the characteristics of lightness and ease of use of aluminum alloy. The most important thing is that this gun is set at the outlet, and the gun body has no air bubbles. It is made of aluminum alloy through a special process of one-time die casting. Guaranteed, long service life. It is the best choice for users to choose and replace the spray gun.

The B-type in-line sandblasting gun produces more sand than the B-type rib-type sandblasting gun, because the rib-type sand injection is controlled by the sand core (pagoda joint), and the in-line type is that the sand pipe is directly inserted into the gun body. , The size of the inner diameter of the sand pipe is the size of the sand blasting gun, which is not controlled by the inner diameter of the sand core.

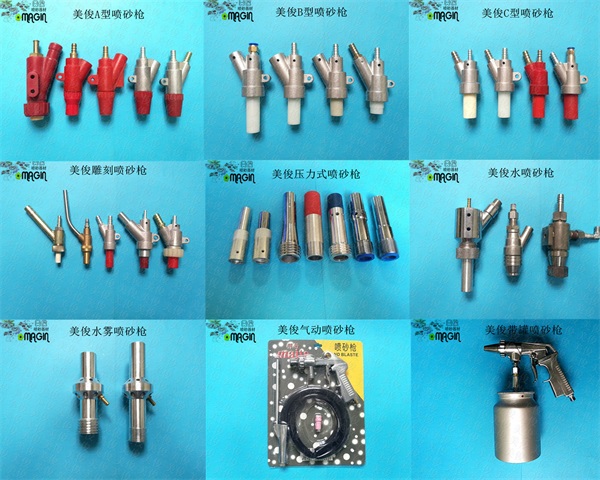

spray Sand gun

It is suitable for automatic sandblasting machines that have a demand for sand output.

Company Name: Magin Dongguan Humen Meijun Sandblasting Equipment Tel: 0769-82261696 Mobile: 13215392671
http://www.dgmagin.com
