C-type sandblasting gun

C-type aluminum alloy die-casting sandblasting gun: bright polished or semi-polished surface, inner rib sandblasting gun, trachea connection port diameter 10MM, sand pipe connection port 13MM
, Lightweight and easy to use, commonly known as small sandblasting gun, there are C1 C2 C3 models. There are also C-type guns made of polyurethane materials

Because of its small size, it is the preferred matching sandblasting gun for manual sandblasting machines.

Therefore, most Taiwan-funded sandblasting machinery and equipment factories choose C-type guns as the matching sandblasting guns for automatic sandblasting machines.

The length of the nozzle sleeve rib opening from the air core inlet to the bottom of the gun body is 7CM, and the thickness of the gun body is about 4CM.

C-type sandblasting gun: The air core is relatively thin, and the sand material circulation space inside the gun body is large, which is suitable for the spraying of large-grained sand materials
The C-type sandblasting gun is similar in appearance to the A-type sandblasting gun, but the length is different, and the whole is much smaller.

Some manufacturers also refer to the C-type sandblasting gun with the gun frame fixing ring (the ear on the gun) as the K-type sandblasting gun.

blast gun

Yoshikawa style sandblasting gun Shangbai style sandblasting gun Belden style sandblasting gun Zhaoshun style sandblasting gun Zhongguang style sandblasting gun

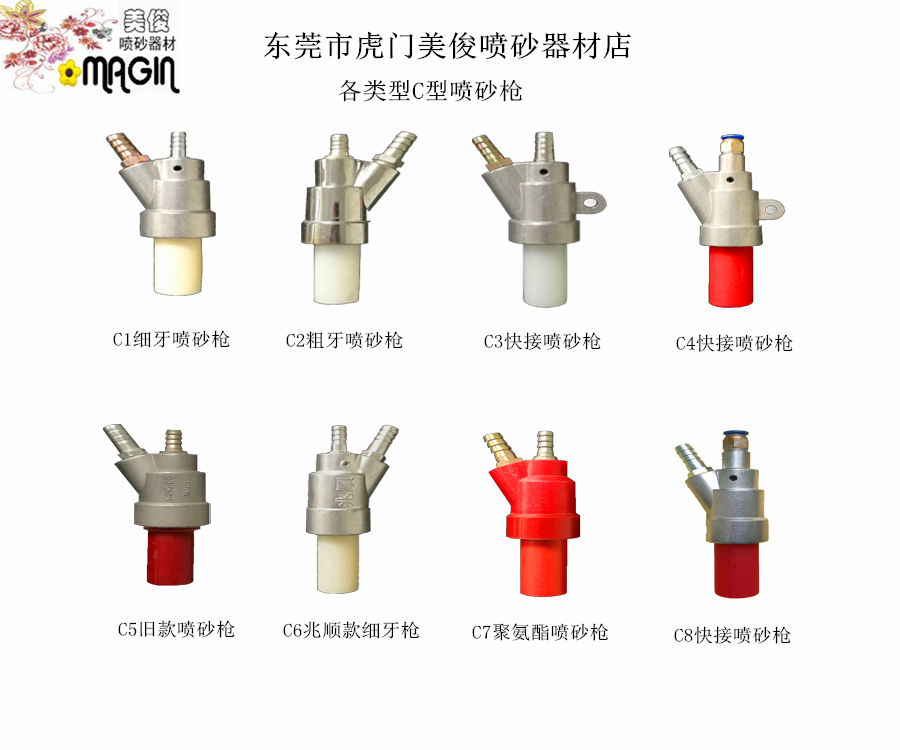

C-type sandblasting gun, negative pressure sandblasting gun, small sandblasting gun, aluminum alloy sandblasting gun

B-type gun and C-type gun have larger sand output than A-type gun
Sandblasting Gun Sandblasting Machine Sandblasting Gun Accessories (Type A, Type B, Type C1, Type C, Type C3, Type K, Type G, Carle Type Sandblasting Gun)

Sandblasting machine sandblasting gun is divided into ordinary pressure sandblasting gun and high-pressure sandblasting gun
High-pressure sandblasting guns are called high-speed sandblasting guns, double-inlet sandblasting guns, single-inlet sandblasting guns, and venturi sandblasting guns.

General pressure sandblasting guns are distinguished according to the shape of the gun body: A1 A2 A4 A5 type B type C type K type G type Carre type sandblasting gun carving type sandblasting gun, etc.,
According to the connection method of the sand pipe, it is divided into ribbed type (the sand pipe is connected by the sand nozzle, and the throat hoop is locked) and the straight-in type (the sand pipe is directly inserted into the spray gun, the rose is locked, and the sand output is large).

Magin produces all kinds of sandblasting guns for sandblasting, which are light and easy to use, feel good in hand, and have high wear resistance.

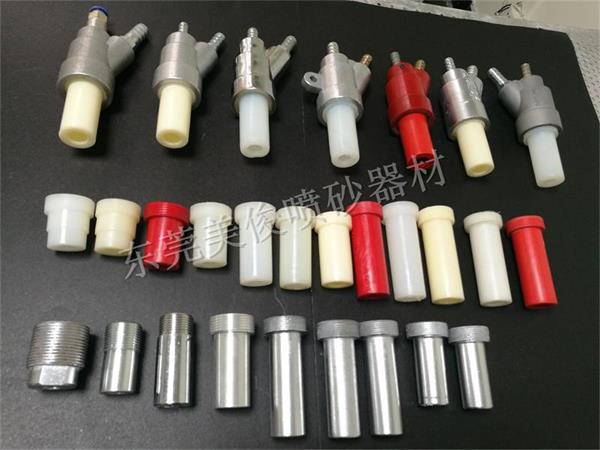

C-type sandblasting gun, sandblasting gun model

Selling sandblasting abrasives, sandblasting guns, air cores sand cores, sandblasting tubes, high-pressure tubes, sandblasting gloves, sandblasting suits, sandblasting helmets and other sandblasting accessories and accessories, at a discounted price!
Delivered by express delivery to your door, now invented, fast guarantee!
