Meijun Model: MJ300-900MM Inner Wall Sandblaster:

Adopt the 360-degree rotation design of the gun head, and the nozzle material is high-temperature sintered pure boron carbide material.

Suitable for rust removal, oxide layer cleaning, anti-corrosion engineering, pre-painting treatment on the inner wall of the pipeline

tube inner wall sandblasting gun, tube inner wall sandblasting machine, tube inner wall sandblaster, inner wall sandblaster, inner wall sprayer Sand gun, inner wall sand blasting machine, pipe sand blasting gun, pipe sand blasting machine

Blast gun for the inner wall of the pipe

TubeBlast gun for the inner wall of the channelIt is mainly used for sandblasting of the inner wall of small pipes, because the pipes are narrow, and the normal forward spray single air inlet and double air inlet spray

The sand gun cannot change direction in the pipe, so it cannot blast the inner wall of the pipe processing, which requires the forward sprayed abrasive to change the angular direction

In order to achieve the purpose of sandblasting the inner wall of the pipe,Inner wall sandblasting gunIt came into being in this situation.

Blast gun for inner wall of pipesSeparate from sandblasting mode:

There are sand head type inner wall guns and rotating inner wall guns, in general, the diameter of the pipe300MMThe following mode with sand head,300MMThe above mode with rotating head.

Blast gun for the inner wall of the pipe In terms of nozzle material: there are cemented carbide tungsten steel and boron carbide.

Pipe Blast

Dongguan Humen Meijun Sandblasting EquipmentBlast gun for inner wall of pipes, according to the different abrasives used by customers, flexible application and targeted use of different nozzle materials and structures The main purpose is to improve the service life of spare parts under different conditions.

Pipeline anti-corrosion equipment

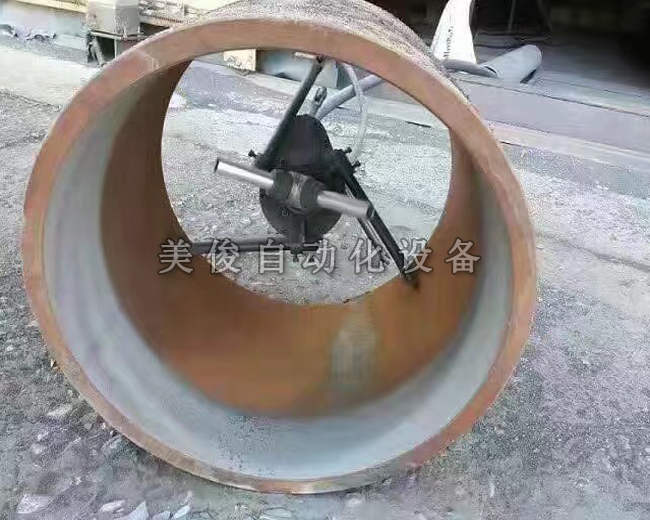

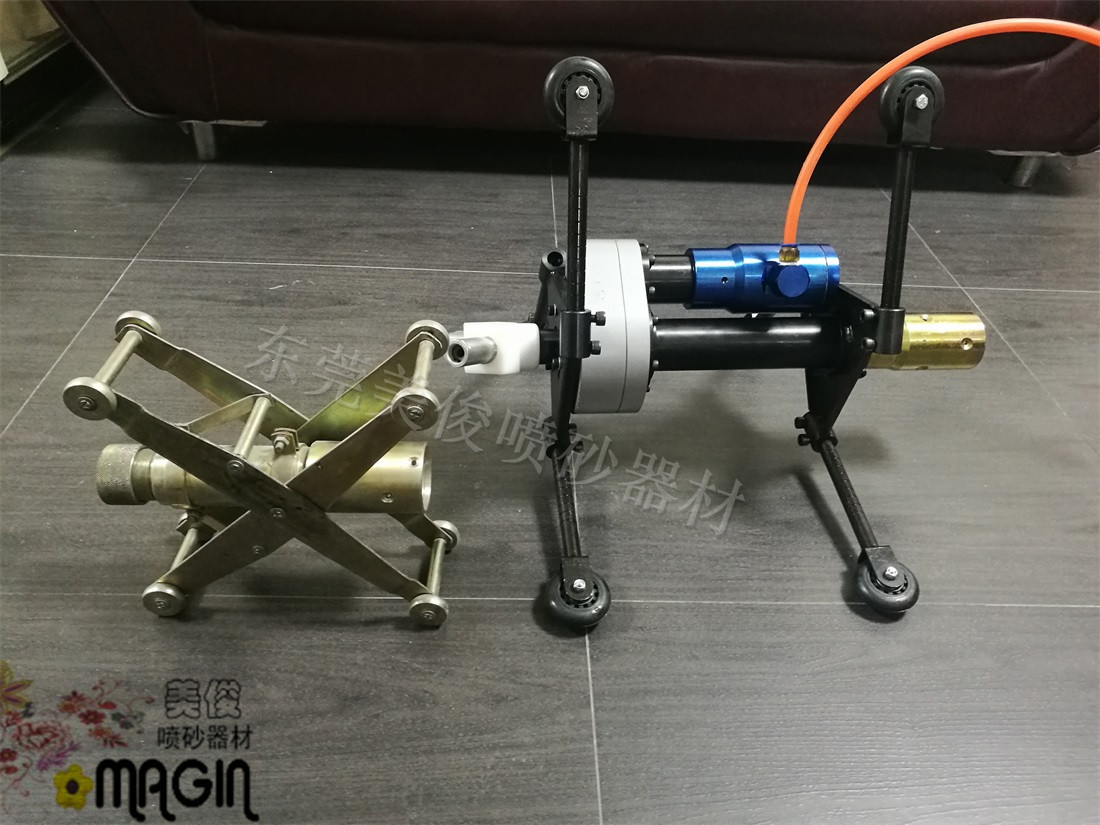

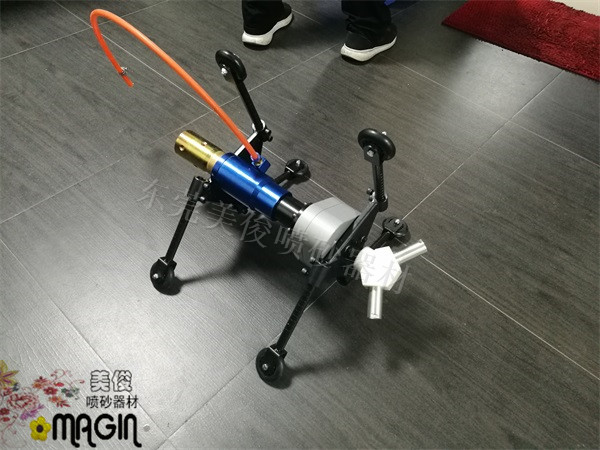

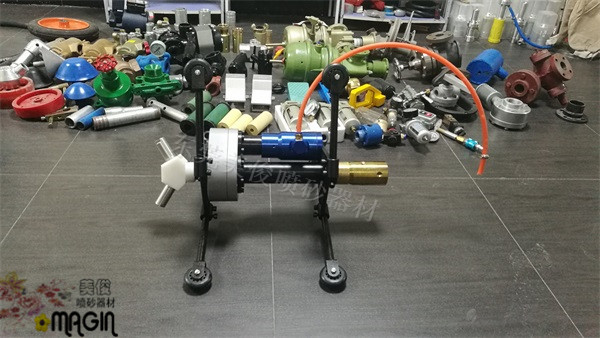

MJ300-900MM Pneumatic Rotary Pipe Inner Wall Sandblaster
MJ300-900MM Pneumatic Rotary Pipe Inner Wall Sandblaster should be used with pressure sandblasting machine and air compressor, which is equivalent to the normal use of single air inlet and double air inlet.

Sandblasting gun, just use 2 guns to rotate 360 degrees to achieve the purpose of cleaning the inner wall of the pipe.

This inner wall sandblaster nozzle is made of pure boron carbide sintered at high temperature, its hardness is extremely high, second only to diamond, wear-resistant, and prolongs the life to a great extent. Consumables

Lifespan of . This sandblaster is suitable for sandblasting the inner wall of φ300-900mm pipes.

The main air bag of the MJ300-900 inner wall sandblaster is imported from Taiwan, and high-pressure air is used to blow the air motor blades in the air bag, thereby driving the gear to rotate and drive the nozzle

Y-shaped seat rotates 360 degrees, and then drives two nozzles installed in front of the Y-shaped seat in a 90° distribution to rotate at a constant speed to achieve a uniform 360-degree sandblasting purpose. Inner wall sandblaster

Do a uniform backward linear motion along the length of the pipe, so as to achieve the purpose of cleaning the inner wall of all lengths of the pipe. The surface quality level after cleaning can reach Sa2.5-Sa3 .

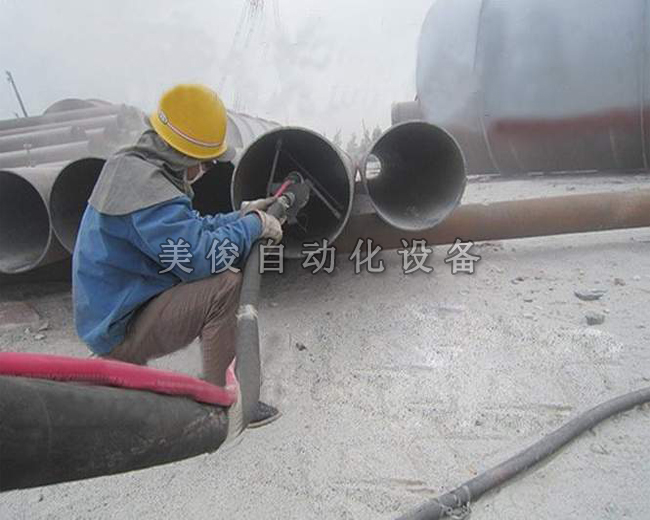

This sandblaster can be manually pulled at a constant speed for sandblasting operations, and can also be used in conjunction with an automatic conveying device to achieve automated operations.

Example:

1)Use a constant speed motor to pull the sandblasting pipe backward at a constant speed to achieve a constant speed backward action;

2)Install a fixed track and extend into the pipeline, so that the sandblaster can automatically retreat at a constant speed along the track.

MJ300-900 inner wall sandblaster is suitable for abrasives: brown corundum, copper ore, quartz sand, cast steel shot, cast steel sand, emery and other abrasives with a particle diameter less than 2mm.

Pipe Blast
