Blast gun for the inner wall of the pipe

Sandblasting gun for the inner wall of the tube, sandblasting machine for the inner wall of the tube, sandblasting the inner wall of the tube, sandblasting the inner wall, sandblasting gun for the inner wall , inner wall blasting machine, pipe blasting gun, pipe blasting machine,

(Dongguan Humen Meijun Sandblasting Equipment has the ownership and interpretation of the original narrative text,Copying and use is strictly prohibited,Our company reserves the right of legal recourse)

pipeblasting gun for the inner wall of the tunnel It is mainly used for sandblasting of the inner wall of small pipes, because the pipes are small, the normal single air inlet with forward spraying

and the double-inlet sandblasting gun cannot change the direction in the pipeline, so it is impossible to blast the inner wall of the pipeline, which requires forward spraying The Mill

It is necessary to change the angle and direction to achieve the purpose of blasting the inner wall of the pipe. Inner wall blasting gun came into being in this situation.

Blast gun for inner wall of pipe From sandblasting mode:

There are sand head type inner wall guns and rotary inner wall guns, in general, pipe diameter300MMThe following mode with sand head,300MMabove

Use the rotating head mode.

Blast gun for the inner wall of the pipe In terms of materials: there are cemented carbide tungsten steel and boron carbide.

Dongguan Humen Meijun Sandblasting Equipment Blast gun for the inner wall of the pipe, according to the different abrasives used by customers, flexible application of targeted materials

and layout, the main purpose is to improve the service life of spare parts under different conditions.

 3.jpg" alt="

one:MJ15-80Sandblaster for the inner wall of the pipe

Sand head design:

Internal components are tungsten steel or boron carbide or a combination of both ,Make full use of the toughness and compressive properties of tungsten steel and the high wear resistance of boron carbide,

Use different materials for different widget functions,Perfectly reduce steel grit,Rapid damage to the inner wall caused by large abrasives such as steel shot,to extend

Long service life of the inner wall blasting gun.

Generally used5-30MMdeep mold, cleaning of inner pipe holes,The rear joint is generally made1-1/4inch threads,Docking with standard sand gun adapter.

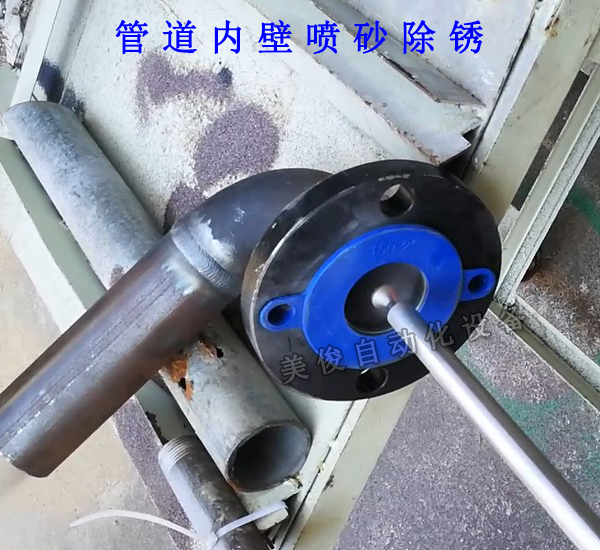

If it is to be used for cleaning the inner wall of long pipes, Due to the small diameter of the spray gun, it is not suitable for the interface and bell mouth,Generally using an inline sandblasting gun,

that is, the outer periphery of the gun body is threaded,insert the gun into the sand tube,Lock the outside with a throat hoop. (For details, please call 0769-82261696)
