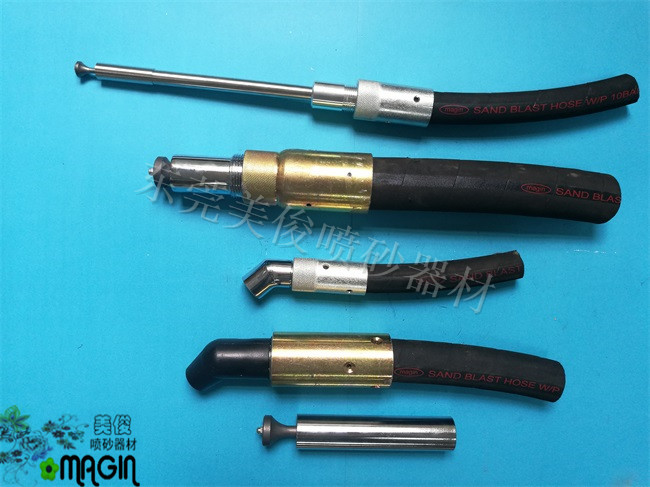

40-pipe blasting gun

Also known asMJ35-100MM Small Pipe Inner Wall Sandblasting Gun:

40 tube inner wall blasting gunforscattered sand Head design,internal components are tungsten steel or boron carbide or a combination of both,make full use of tungsten

The toughness and compressive properties of steel and the high wear resistance of boron carbide,used for different component functions Different materials ,perfectly reduce large particles such as steel grit,steel shot

Rapid damage, to the inner wall blasting gun caused by the strong impact of abrasive grains Service life.

MJ35-100MMCan handle inner diameter33MM-200MM sandblasting on the inner wall of the pipe(need to increase the sand scattering head).

Sand head angle science,After sandblasting, the cleaning uniformity of the inner wall surface is high, Achieving SA2.5-3.0level.

Spray gun connection port (sand pipe joint) is M27 *1.5 or 2.0 pitch interface ( pitch can be made according to customer requirements).

The inner teeth of the spray gun are designed so that steel pipes of different lengths can be added later , to meet sandblasting requirements The depth requirement of the diameter,usually the lengthened steel pipe is designed as

Two external teeth,one end is connected to the inner wall blasting gun,the other end Sand pipe connector,sand pipe joint can be connected to the outer diameter28MMor32MMsand pipe, can also be connected

Connect a large sand pipe with an outer diameter of 40/48MM through an adapter.

For33MM-100MMSandblasting the inner wall of the pipe,because no gun stand is used, socan't guarantee that the spray gun itself is in the center of the pipe,so it comes with 2oneOtype ring,

The side of the ring has3a screw hole,For mounting screws of different lengths. Rotate the corresponding screw according to the size of the pipe when using it, Try to ensure that the spray gun is in the middle of the pipe

Center Position(If there is a screw provided with the goods Cannot meet the site requirements ,Please configure the screw of the corresponding size by yourself )

This sandblaster can be manually pulled at a constant speed for sandblastingwork, and can also be used in conjunction with an automatic conveying device ,Automated operation is possible.

Example:

1)      Use a constant speed motor Pull back the blasting pipe at a constant speed,Realize a uniform backward motion;

2)      Install the rail Into the pipe,Realize the sandblaster to automatically retreat at a constant speed along the track

.
