Dongguan Humen Meijun sandblasting equipment 35 long boron carbide nozzle features:

Compared with other companies' products, our company guarantees:

1) It is a high temperature sintered boron carbide product with high hardness, high toughness, high wear resistance and long life;

2) The appearance is neat and clean.

3) The outer circle and the inner hole have a high round rate;

4) It is sintered from pure boron carbide micropowder, and it is pure boron carbide without any other materials.

Hot-pressing high-temperature furnace sintered boron carbide nozzle performance characteristics have the same performance as boron carbide:

The cross section is a spiral radial pattern, and the basic shape of the nozzle is a cylinder and a cone. It is difficult to make special-shaped and stepped shapes.

1) Extremely hard and wear-resistant

2) No reaction with acid and alkali

3) High and low temperature resistance, high pressure resistance

4) Density ≥2.46g, cm3;

5) Microhardness ≥3500kgf/mm2;

6) Bending strength ≥ 400Mpa;

7) Melting point is 2450℃.

Due to the above characteristics of wear resistance and high hardness of boron carbide nozzles, boron carbide sandblasting nozzles have gradually replaced known cemented carbide in industries that require wear resistance.

Sandblasting nozzles for tungsten steel and silicon carbide, silicon nitride, alumina, zirconia and other materials.

Estimated nozzle life: 800 hours (reference)

Boron carbide nozzles are 5-10 times more effective than tungsten steel nozzles!

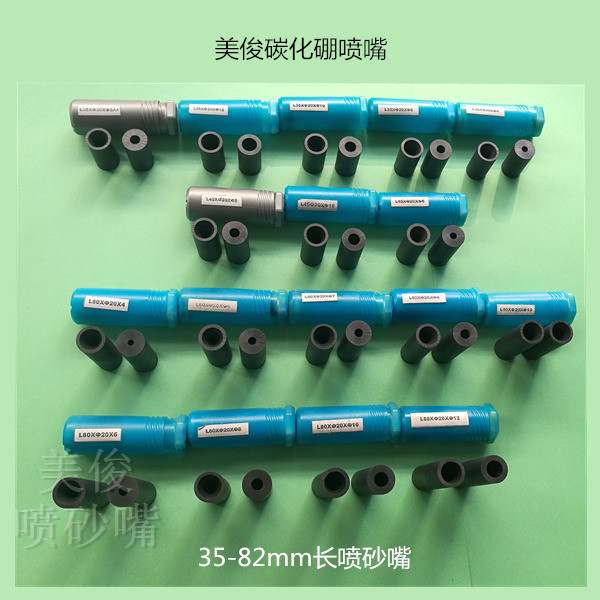

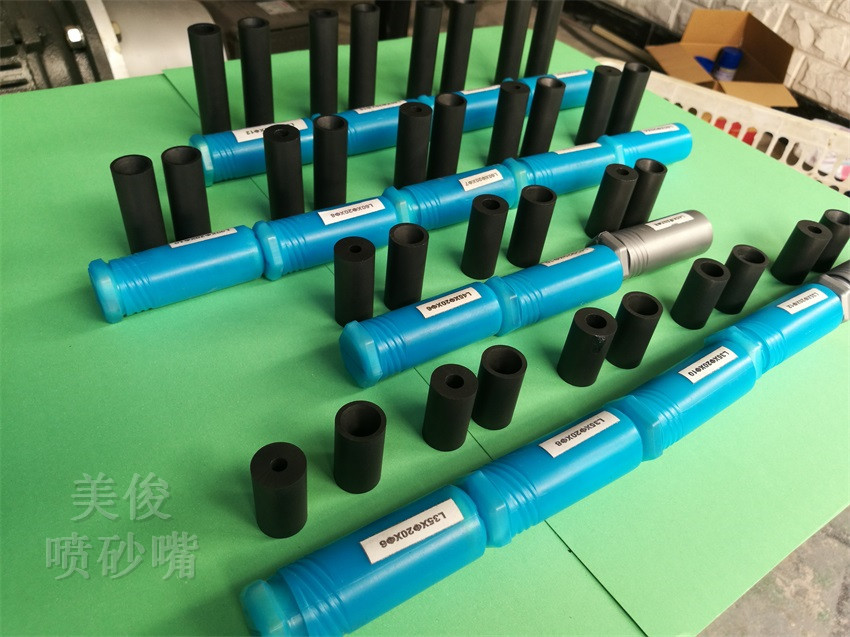

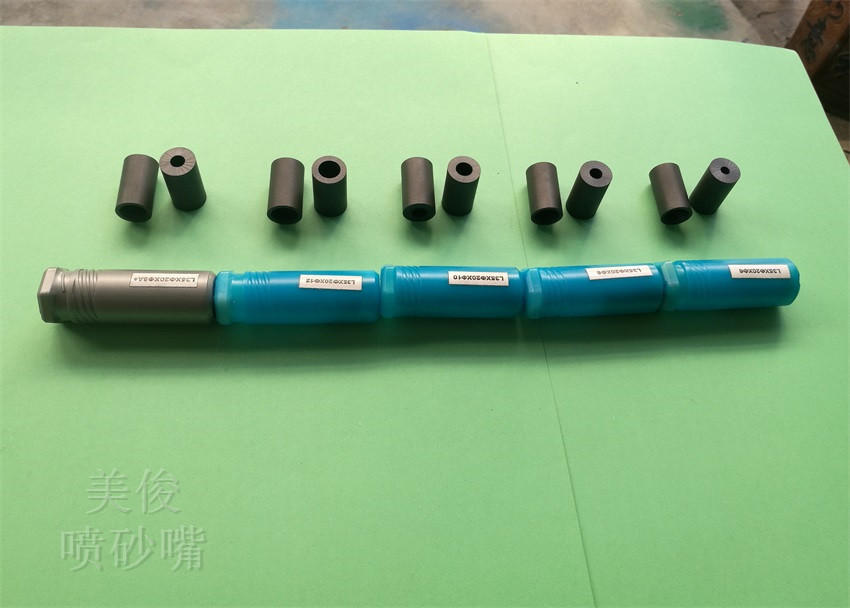

●Regular stock specifications:

Outer Diameter 20MM Series: Inner DiameterΦ(1.05-12)*Outer Diameter 20MM*Length 35/45/50/60/80/82MM

Outer Diameter 15MM Series: Inner DiameterΦ(1.05-10)*Outer Diameter 15/16MM*Length 35/40/55MM

Outer Diameter 28MM Series: Inner Diameter Φ10/12/14mm*Outer Diameter 28MM*Length 75/80M

Unconventional special models of nozzles:

According to the drawings and dimensions provided by customers, we welcome you to customize the drawings.

Characteristics of boron carbide material:

Boron carbide is one of the hardest man-made materials. It has the characteristics of light weight, semiconductor properties, absorption of neutrons, high grinding efficiency, and no reaction with strong acids and alkalis.

The Mohs hardness is 9,36, the microhardness is 5400-6300 kilograms per square meter, the density is 2.52 kilograms per square meter, and the melting point is 2450 degrees Celsius.

Boron carbide is hexagonal dark black. Due to the above characteristics and properties, boron carbide is widely used in machinery, metallurgy, chemical industry, aerospace, etc.

In the field of metallurgy, abrasives can be made to process gems, ceramics, knives, bearings, and used as refractory materials in various fields of metallurgy.

boron carbide nozzle, boron carbide nozzle, sandblasting nozzle, wear-resistant nozzle , spray nozzle, sanding nozzle, sandblasting nozzle cover

Dongguan Humen Meijun sandblasting equipment "Magin" brand boron carbide blasting nozzle adopts high purity Hard material, made of high-fine, high-purity, ultra-fine boron carbide

Micropowder is used as raw material and is produced by hot pressing and high temperature sintering technology. The product fully considers the needs of many manufacturers for high nozzle life, and is continuously improved.

Many large-scale glass deep processing, electronic manufacturing, hardware die-casting and other enterprise applications have truly achieved a balance of cost performance, and are well received by manufacturers, and the products have been stabilized.

We will supply Hong Kong, Taiwan and Southeast Asia, and get a certain amount of sales in Europe and the United States, and have the trust of many customers!

The customer base is sandblasting machinery factory, shipyard, ship maintenance, marine engineering equipment factory, hardware processing factory, glass deep processing, solar energy industry,

Photovoltaic industry, wind power industry, automobile industry, IT manufacturing, petroleum industry, mold and flower factory, die-casting factory, wheel factory, chip factory, hardware

Factory, spraying factory, oxidation factory, electroplating factory and other enterprises with large demand for sandblasting machine accessories
