Dongguan Meijun Magin Yuelongwan brand - high pressure wear-resistant cord sandblasting pipe, its material is made of 70% natural soft rubber in the inner layer + 2 cords in the outer layer + anti-stretch layer on the fabric surface.

Heavy-duty high-pressure sandblasting pipes, sand suction pipes, buried suction pipes, organ pipes

Sandblasting pipe, high pressure sandblasting pipe, sand suction pipe, buried suction pipe, sand blasting pipe, sandblasting machine accessories, sandblasting consumables

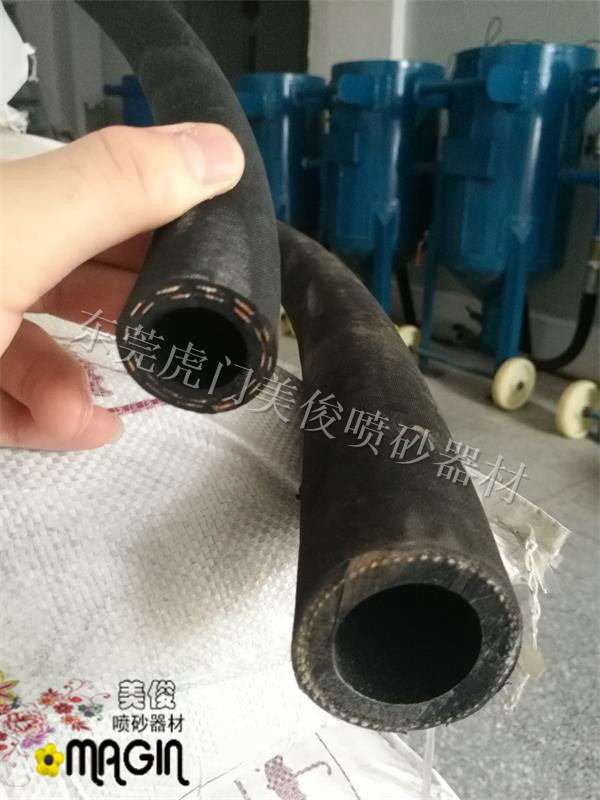

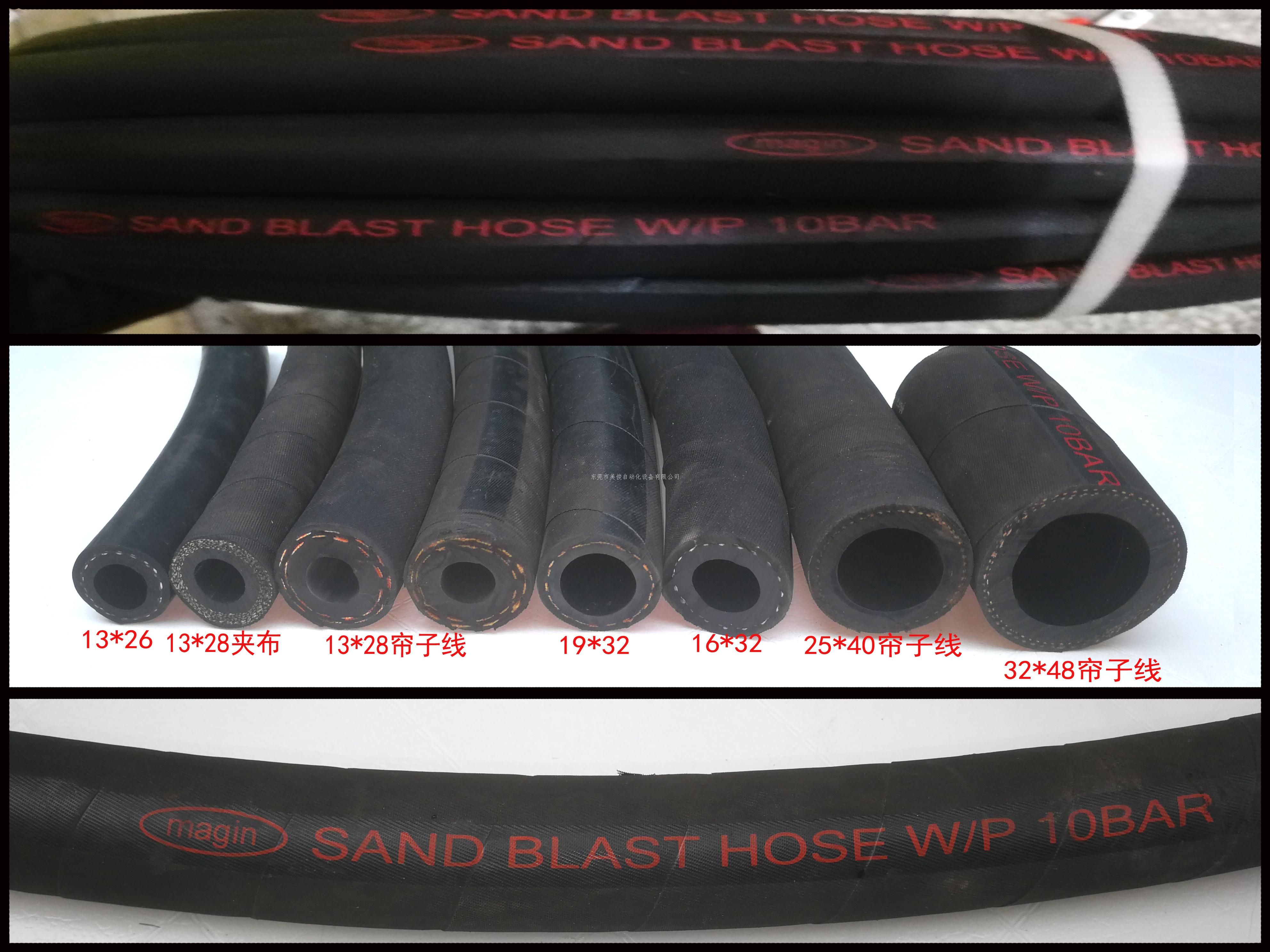

Meijun Magin high pressure wear-resistant sandblasting pipe

Sandblasting pipe (standard cloth surface for export, steel wire/brazing wire winding pipe) inner diameter 10mm, 13mm, 32mm, 38mm, 100MM (sand suction pipe)

Small wear-resistant pipe for siphon sandblasting machine: inner diameter 13MM, outer diameter 23-25MM, 2 layers of cord winding, with wear resistance and pressure resistance.

Especially recommended high pressure blasting pipe:

1) Winding type: inner diameter 32MM wear-resistant rubber layer thickness 7-10MM, cord winding (2 layers), outer diameter 51, 53MM, 20 meters per roll (40 meters can be customized).

2) Braided type: inner diameter 32MM wear-resistant rubber layer thickness 7MM, 5 layers of cloth braiding, outer diameter 48MM, 20 meters per roll. 40 meters/roll can be customized, with 7 layers of cloth weaving, and the outer diameter is 51MM.

3) Winding type: inner diameter 19MM cord winding (2 layers), outer diameter 29, 33MM, 20 meters per roll (40 meters can be customized).

Durable hose; particularly strong and wear-resistant, for blasting equipment for sand and steel, .

The brazed winding sandblasting hose has the characteristics of high wear resistance, high toughness, high pressure resistance, etc., and uses high-quality rubbing tape as the reinforcement layer, which has good flexibility and strong pressure bearing capacity;

Scope of application: The product is mainly used for sand blasting machine sand pipe and gas pipe, and is also used in various tunnel projects, wells, tunnels, slope protection and injection anchors. It has a wide range of applications in hydropower, mining and other fields.

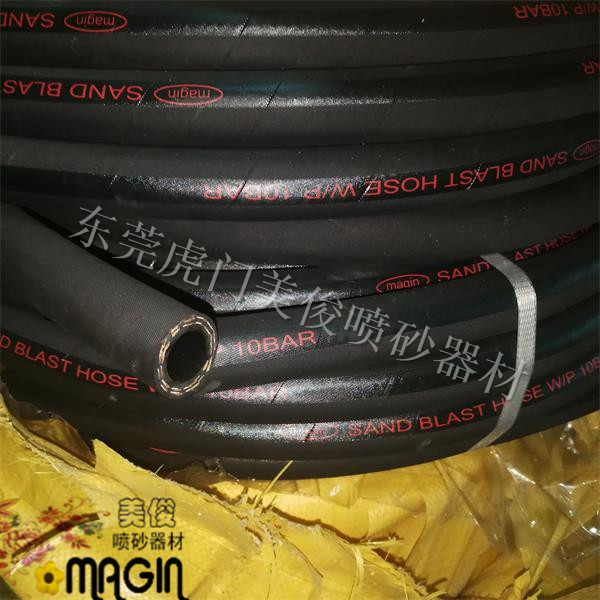

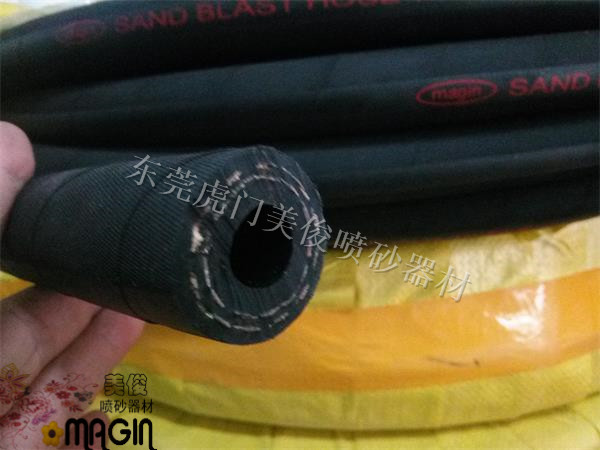

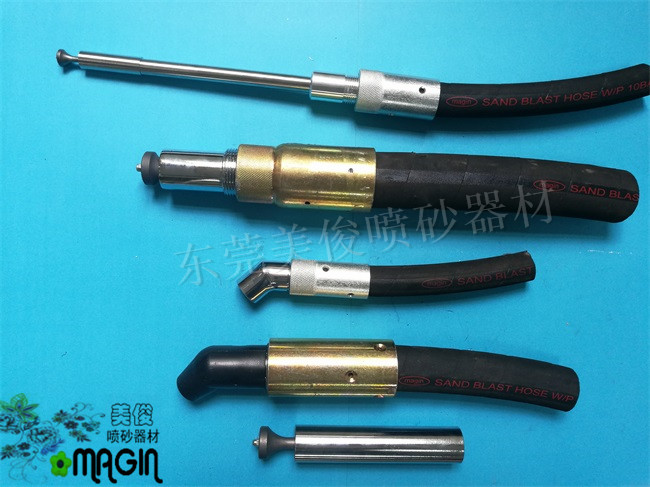

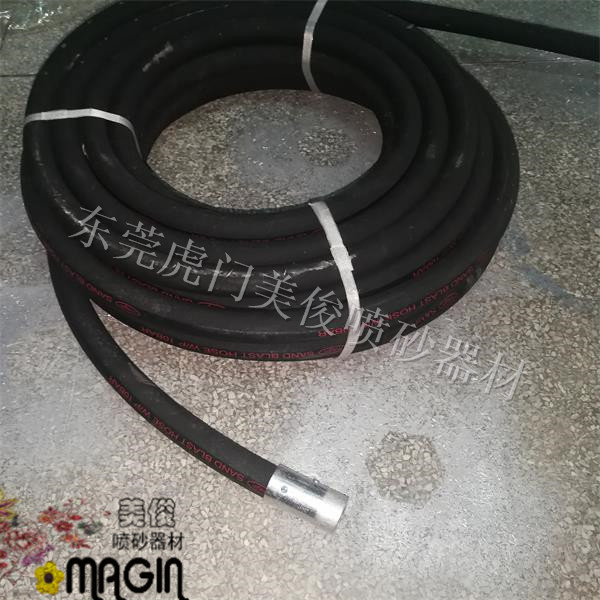

blasting pipe, sand suction pipe, sand blasting pipe, abrasive pipe, water sand pipe , sand blasting machine sand blasting pipe

Structure: High-strength synthetic braided wire braid
Inner tube: black smooth with excellent abrasion resistance
Outer layer: black cloth grain surface with high abrasion resistance;
Length: 20m/roll 40m/roll

Company Name: Magin Dongguan Meijun Automation Equipment Co., Ltd. Tel: 0769-82261696 Mobile: 13215392671

Address: No. 33, Xinxing Road, Xinlian Community, Humen Town,

Dongguan City http://www.dgmagin.com
