High pressure sandblasting pipe-wear-resistant sandblasting pipe-pressure sandblasting pipe-cloth braided sandblasting pipe-cord brazing wire winding sandblasting pipe

Sand blasting pipe (export standard cloth grain surface steel wire braided winding pipe) inner diameter 10mm, 13mm, 19MM, 25mm, 32mm, 38mm, 100MM (sand suction pipe)

Small wear-resistant pipe for siphon type sandblasting machine: inner diameter 13MM, outer diameter 23-25MM, cord winding, with wear resistance, pressure resistance and pulling resistance,

It is especially suitable for automatic sand blasting machine, which can effectively resist the cracking and fracture caused by the swinging and pulling of the sand pipe by the spray gun, and effectively prolong the life of the sand pipe.

Recommended high pressure blasting pipe:

1) High-pressure pipe winding type: inner diameter 32MM wear-resistant rubber layer thickness 7-10MM, cord winding (2 layers), outer diameter 51, 53MM, 20 meters per roll (40 meters can be customized). (one inch two tubes)

2) High-pressure tube braided type: inner diameter 32MM wear-resistant rubber layer thickness 7MM, cloth braiding (5 layers), outer diameter 48MM, 20 meters per roll (40 meters can be customized).

3) High pressure tube winding type: inner diameter 25MM cord winding (2 layers), outer diameter 40MM, 20 meters per roll. (one inch tube)

4) High pressure tube winding type: inner diameter 19MM cord winding (2 layers), outer diameter 33MM, 20 meters per roll. (eight pipes)

5) General pressure pipe: inner diameter 13MM cord winding (1 layer), outer diameter 23-25MM, 50 meters per roll (for siphon blasting machine) (6 pipes)

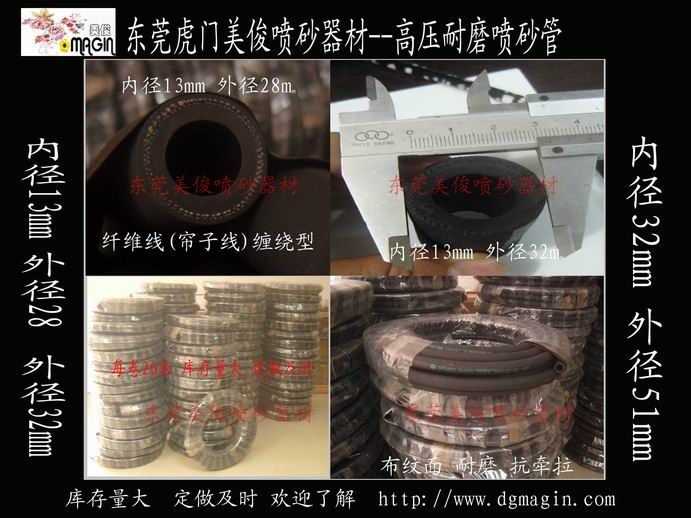

High pressure tube: inner diameter 13MM cord winding (2 layers), outer diameter 28MM, 20 meters per roll

Inner diameter 13MM cloth (3 layers), outer diameter 28MM, 20 meters per roll

Inner diameter 13MM cloth (3 layers), outer diameter 32MM, 20 meters per roll

Steel ring sand suction tube: inner diameter 100MM black wear-resistant rubber with built-in steel ring for sand suction and sand return 4m/piece 6m/piece 8m/piece

Durable hose; strong and wear-resistant for blasting equipment with sand and steel, .

The brazing-braided sandblasting pipe has the characteristics of high wear resistance, high toughness, high pressure resistance, etc. It adopts high-quality rubbing cloth as the reinforcement layer, which has good flexibility and strong pressure bearing capacity;

Steel Braided Sandblasting Hose is braided with special steel wire for copper-plated rubber hose, which can withstand 3-4 times the working pressure of the cloth rubber hose. It has the characteristics of high pressure resistance and superior flexural resistance.

Scope of application: The product is mainly used for sand blasting machine sand pipe and gas pipe, and is also used in various tunnel projects, wells, tunnels, slope protection and injection anchors. It has a wide range of applications in hydropower, mining and other fields.

Structure: High-strength synthetic brazing wire/steel wire braid
Inner tube: black smooth with excellent abrasion resistance
Outer layer: black cloth grain surface with high abrasion resistance;
Length: 20m/roll 40m/roll
