Italy imported sandblasting pipe ALFAGOMMA

Dongguan Humen Meijun Sandblasting Equipment Co., Ltd. is one of the sellers of the ALFAGOMMA brand sandblasting pipes in Italy.
The company sells ALFAGOMMA rubber sandblasting hoses, hydraulic hoses, industrial rubber hoses, high pressure hoses, oil hoses, chemical hoses, food hoses, sandblasting pipes, compressed air hoses, etc. product.

Italian ALFAGOMMA hoses and industrial hoses are 2-4 times more durable than domestic rubber sandblasting hoses. The sandblasting hoses imported from Italy are made of pure natural rubber. Wear-resistant, explosion-proof, pressure-resistant, and high toughness.

Types of imported sand pipes are: hydraulic hose, high pressure gas pipe, air pipe, sandblasting hose, hot-pressed water pipe, fuel pipe

Alfagma hose application industry: petroleum, production line production, electric power, aviation, aerospace, automobile manufacturing, shipbuilding, electronics, sandblasting and other industries
Inner diameter range: 3/16 to 2 inches;
Working pressure: 4MPa to 42MPa;
Burst pressure coefficient: 4 times safety factor;
Working temperature: -40℃ to 125℃;

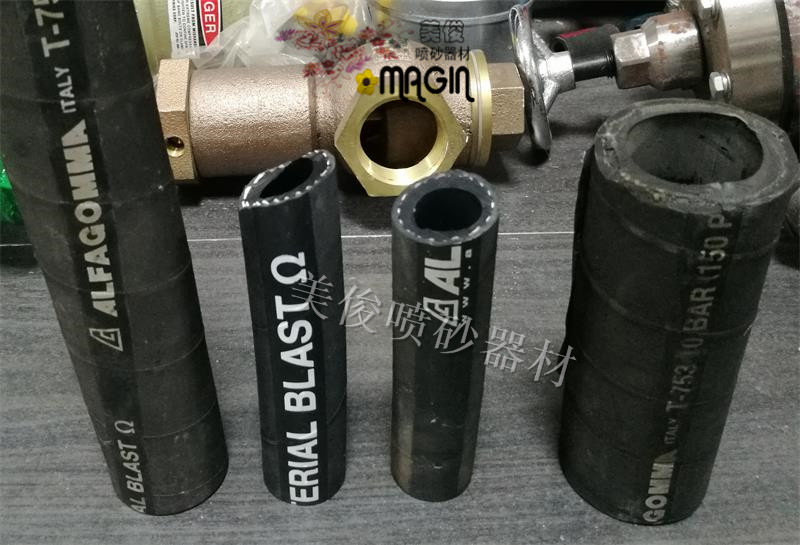

Import sandblasting pipe, Alpha pipe, ALFAGOMMA, spray pipe, suction Sand pipe, sand blasting pipe
Application range of Alfagma blasting pipe: high pressure hydraulic system, high pressure oil and high temperature hydraulic oil, hot oil, grease, crude oil, air and water, etc.;

Inner diameter range: 5MM to 23MM;
Working pressure: 6.5MPa to 28MPa;
Burst pressure coefficient: 4 times safety factor;
Working temperature: -40℃ to 260℃;
Scope of application: Compressed air, natural gas, steam, kerosene, sand, gasoline, chemical liquids, food, pharmaceuticals, solvents, pigments, paints, etc. have corrosive solvents;

Sandblasting pipe, imported blasting pipe, Italian blasting pipe, wear-resistant blasting pipe

Alfagma sand pipe, imported sand pipe, ALFAGOMMA, imported sand pipe

Path	inner diameter		Label	Outer Diameter		Work pressure		Blasting pressure		bending radius		Weight
Path	mm	in	size	mm	in	mpa	psi	mpa	psi	mm	in	Kg/m	Ibs/ft
6	6.4	1/4	-04	13.4	0.53	22.5	3270	90	13080	4	100	0.22	14.74
8	7.9	5/16	-05	15	0.59	21.5	3120	86	12480	4.6	115	0.26	17.42
10	9.5	3/8	-06	17.4	0.69	18	2610	72	10460	5.2	130	0.33	22.11
12	12.7	1/2	-08	20.6	0.81	16	2320	64	9280	7.2	180	0.42	28.14
16	15.9	5/8	-10	23.7	0.93	13	1890	52	7560	8	200	0.51	34.17
19	19	3/4	-12	27.7	1.09	10.5	1530	42	6120	9.6	240	0.62	41.54
25	25.4	1	-16	35.6	1.40	8.8	1280	35.2	5120	12	300	0.92	61.64
32	31.8	1-1/4	-20	43.5	1.71	6.3	920	25.2	3680	16.8	420	1.2	80.4
38	38.1	1-1/2	-24	50.6	1.99	5	730	20	2920	20	500	1.48	99.16
51	50.8	2	-32	64	2.52	4	580	16	2320	25.2	630	2	134

Welcome to consult our company's products, I sincerely guide you! Our company's products include sales of sandblasting equipment and sandblasting machine accessories
