Italy imported wear-resistant high-pressure sandblasting pipe ALFAGOMA

Italy imported wear-resistant high-pressure sandblasting pipe

Dongguan Humen Meijun Sandblasting Equipment Co., Ltd. is one of the sellers of the ALFAGOMMA brand in Italy. The company sells ALFAGOMMA, DUNLOP hydraulic hoses, industrial rubber hoses, high pressure hoses, oil hoses, chemical hoses, food hoses, sandblasting hoses, compressed air hoses, various water hoses A company specializing in the production and processing of other products, with a complete and scientific quality management system

Italian ALFAGOMMA (Alfagoma) rubber hoses, industrial hoses are 2-4 times more durable than domestic rubber sandblasting hoses, Italy The imported sandblasting hose is made of pure natural rubber and has the characteristics of wear resistance, explosion-proof, pressure resistance and high toughness.

Types of imported sand pipes are: hydraulic hose, high pressure gas pipe, air pipe, sandblasting hose, hot-pressed water pipe, fuel pipe

Alfagma hose application industry: petroleum, production line production, electric power, aviation, aerospace, automobile manufacturing, shipbuilding, electronics, sandblasting and other industries Inner diameter range:3/16 to 2 inches; Working pressure: 4MPa to 42MPa Blasting pressure coefficient: 4 times safety factor; Working temperature: -40℃ to 125℃; Alfagma blasting pipe application range: high pressure hydraulic system, high pressure oil and high temperature hydraulic oil, hot oil, grease, crude oil, air and water, etc.;

Inner diameter range: 5MM to 23MM

Working pressure: 6.5MPa to 28MPa

Blasting pressure coefficient: 4 times safety factor;

Working temperature: -40℃ to 260℃;

Application range: compressed air, natural gas, steam, kerosene, sand, gasoline, chemical liquids, food, pharmaceuticals, solvents, pigments, paints, etc. have corrosive solvents;

Path	ID		label	OD		Work pressure		Blasting pressure		bend radius		Weight
Path	mm	in	size	mm	in	mpa	psi	mpa	psi	mm	in	Kg/m	Ibs/ft
6	6.4	1/4	-04	13.4	0.53	22.5	3270	90	13080	4	100	0.22	14.74
8	7.9	5/16	-05	15	0.59	21.5	3120	86	12480	4.6	115	0.26	17.42
10	9.5	3/8	-06	17.4	0.69	18	2610	72	10460	5.2	130	0.33	22.11
12	12.7	1/2	-08	20.6	0.81	16	2320	64	9280	7.2	180	0.42	28.14
16	15.9	5/8	-10	23.7	0.93	13	1890	52	7560	8	200	0.51	34.17
19	19	3/4	-12	27.7	1.09	10.5	1530	42	6120	9.6	240	0.62	41.54
25	25.4	1	-16	35.6	1.40	8.8	1280	35.2	5120	12	300	0.92	61.64
32	31.8	1-1/4	-20	43.5	1.71	6.3	920	25.2	3680	16.8	420	1.2	80.4
38	38.1	1-1/2	-24	50.6	1.99	5	730	20	2920	20	500	1.48	99.16
51	50.8	2	-32	64	2.52	4	580	16	2320	25.2	630	2	134

Welcome to consult our company's products, I sincerely guide you! Our company's products include sales of high-end brands and low-end brands,

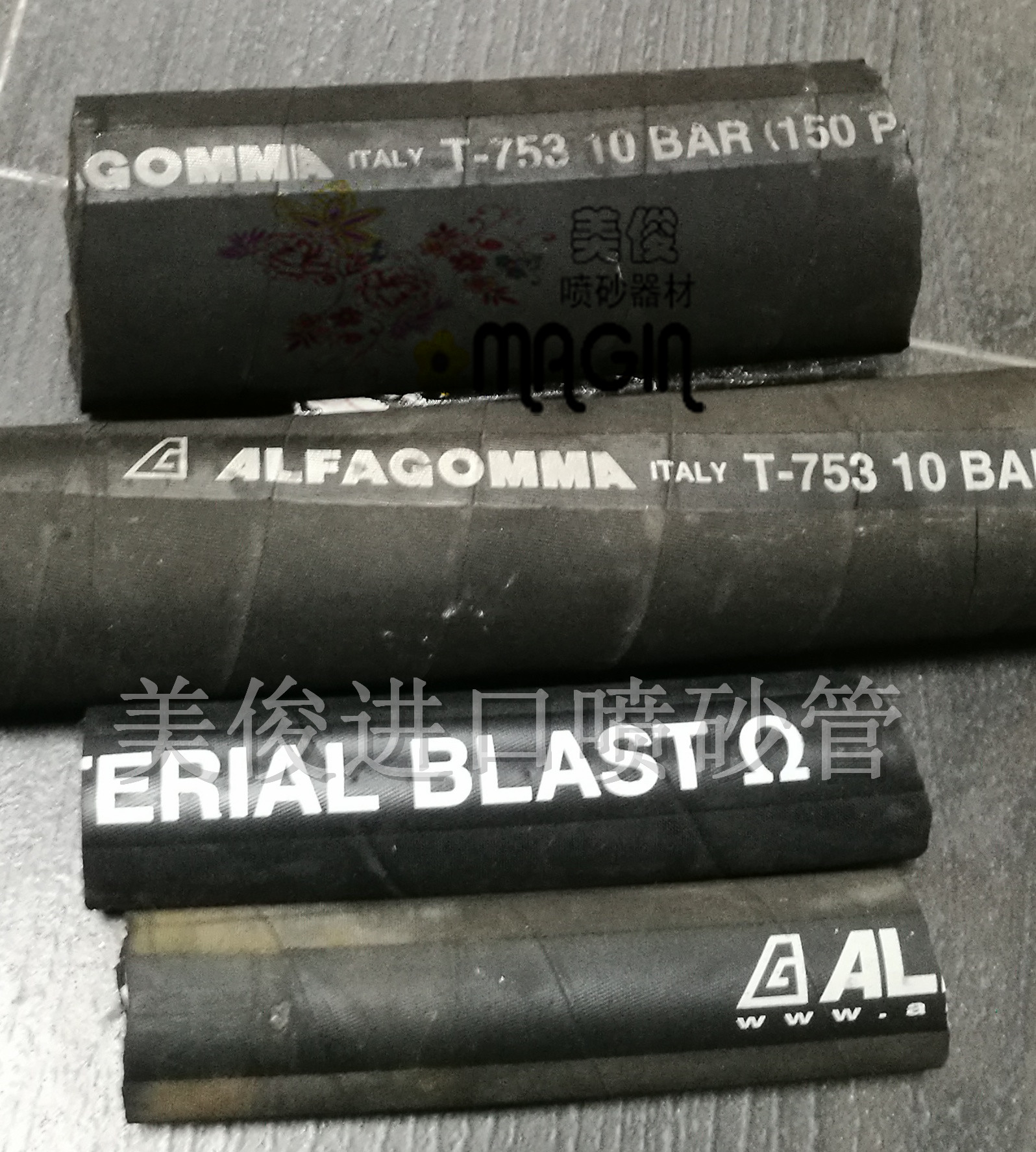

Inlet sandblasting pipe

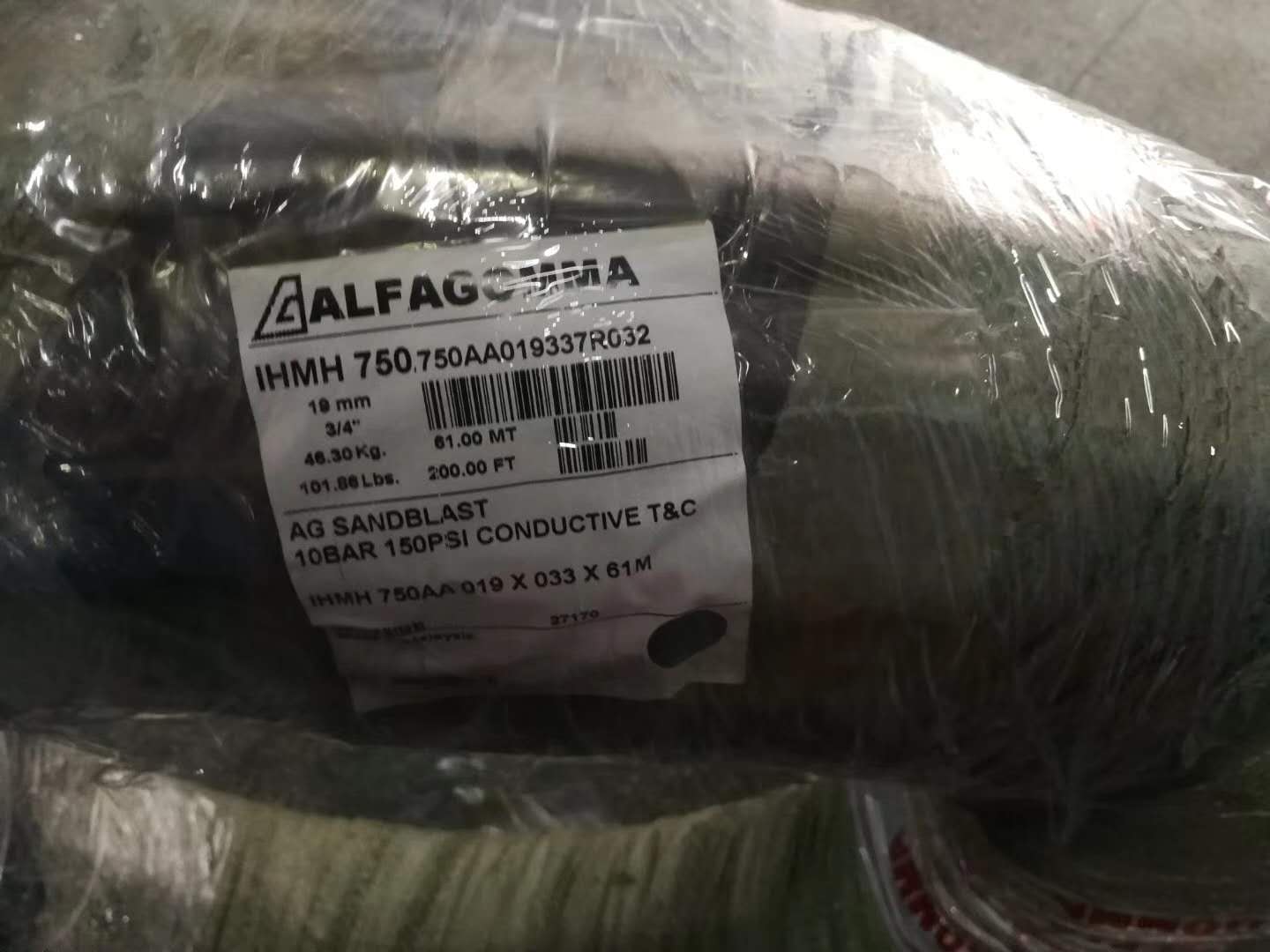

ALFAGOMMA

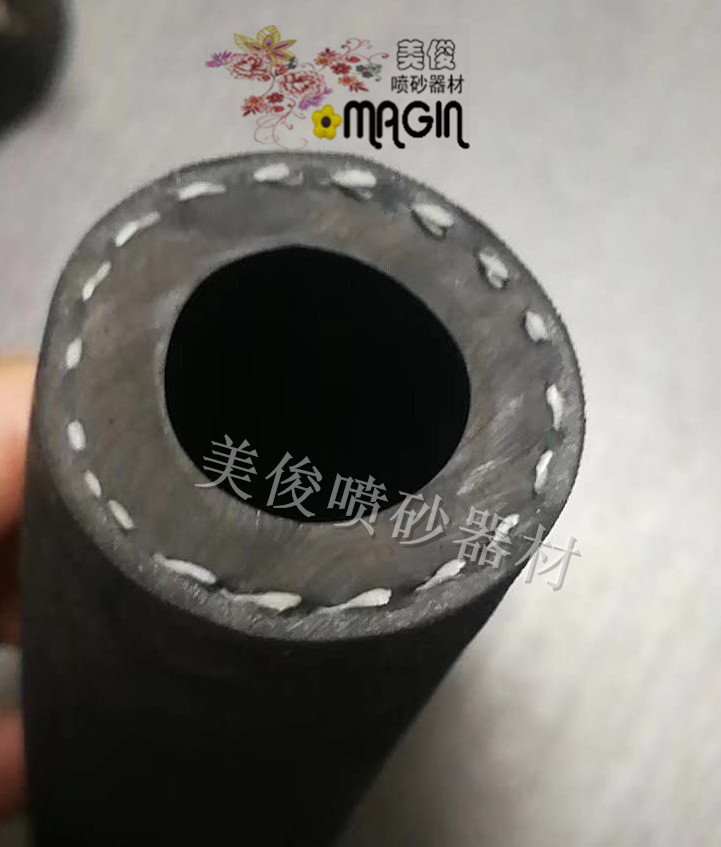

Import sand pipe, sand blasting pipe, sand blasting pipe
