    【Origin Pic】

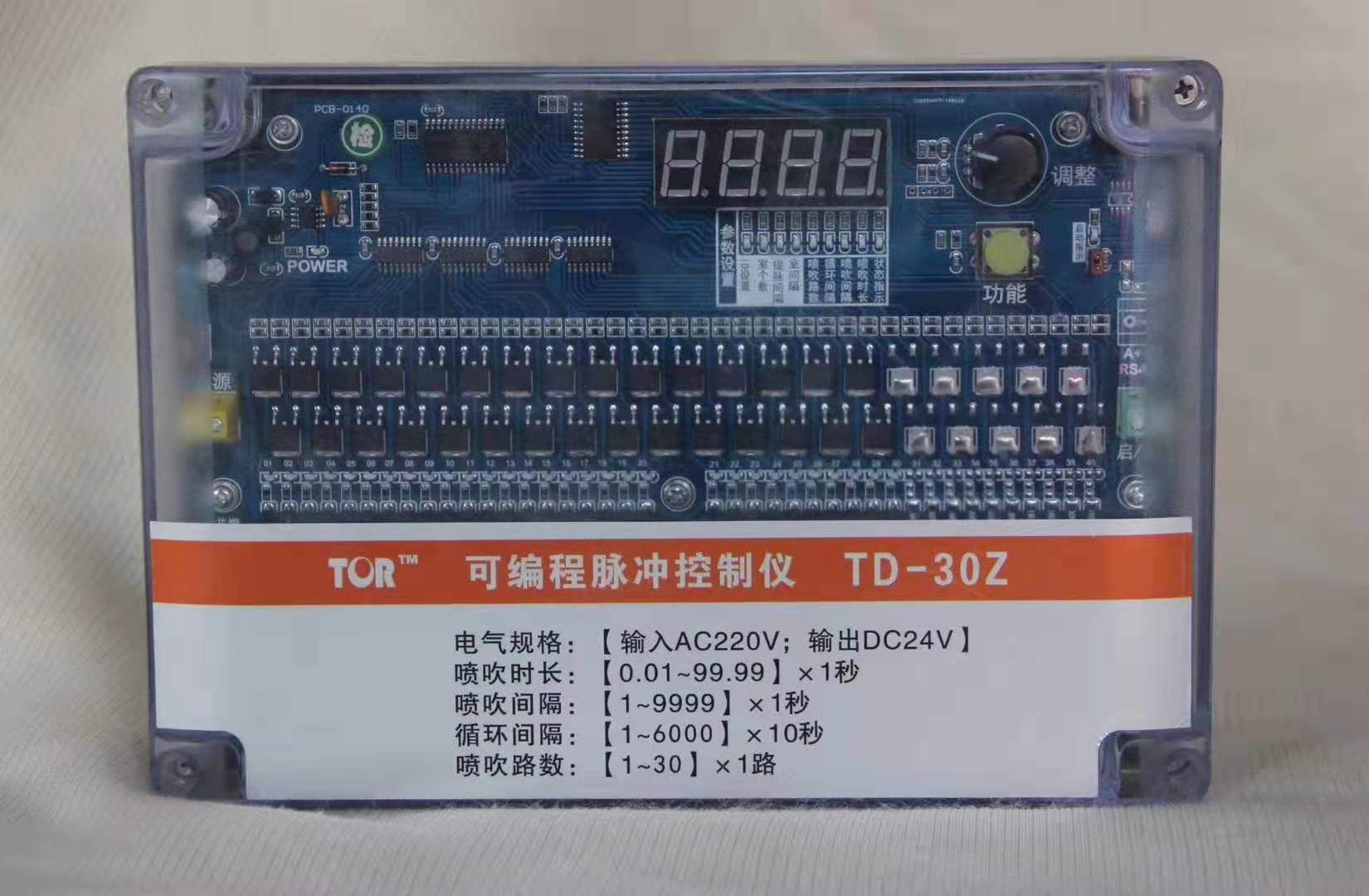

    Programmable Pulse Controller

    The pulse controller is the main control device of the pulse bag filter for blowing dust. Its output signal controls the electromagnetic pulse valve to clean the filter bag cyclically, so as to ensure the processing capacity and dust collection efficiency of the dust collector.
    The pulse interval, pulse width, number of output channels and cycle interval of this product are adjustable, the data can be displayed by digital tube, and the number of output channels can be adjusted according to demand. Most of the parts of this product are imported parts, and the performance is higher than that of similar products in the market, making it more intuitive and simpler to operate and more stable in performance.
    The product has a very good photoelectric isolation effect.

    Programmable Pulse Controller
    Uses: Mainly used in the control system of dust collectors in kilns, cement shaft kilns, mines and other industries. The flush controller adopts industrial-grade chips as the control core; there are obvious setting signs on the printed circuit board, which can be easily set up; the output side of the controller is provided with the work instructions of each output point, which can quickly judge the output point. The controller is equipped with a manual operation button, which can facilitate the debugging and operation of the equipment; the pulse controller adopts a waterproof shell structure and cooperates with a waterproof connector, which can be used outdoors and in dusty environments; and the pulse controller is equipped with pluggable The special terminal of the printed circuit board can be pulled out for easy wiring.
    The output of each output terminal controls the opening of the electromagnetic pulse valve, and the compressed air is sprayed to clear the dust. At the same time, there are light-emitting diodes to display the spraying sequence. When the dust collector cleans the dust, it sprays and cleans the dust while filtering. The pulse controller outputs electrical signals according to the set pulse width and pulse interval to control the pulse valve to spray the dust one by one.

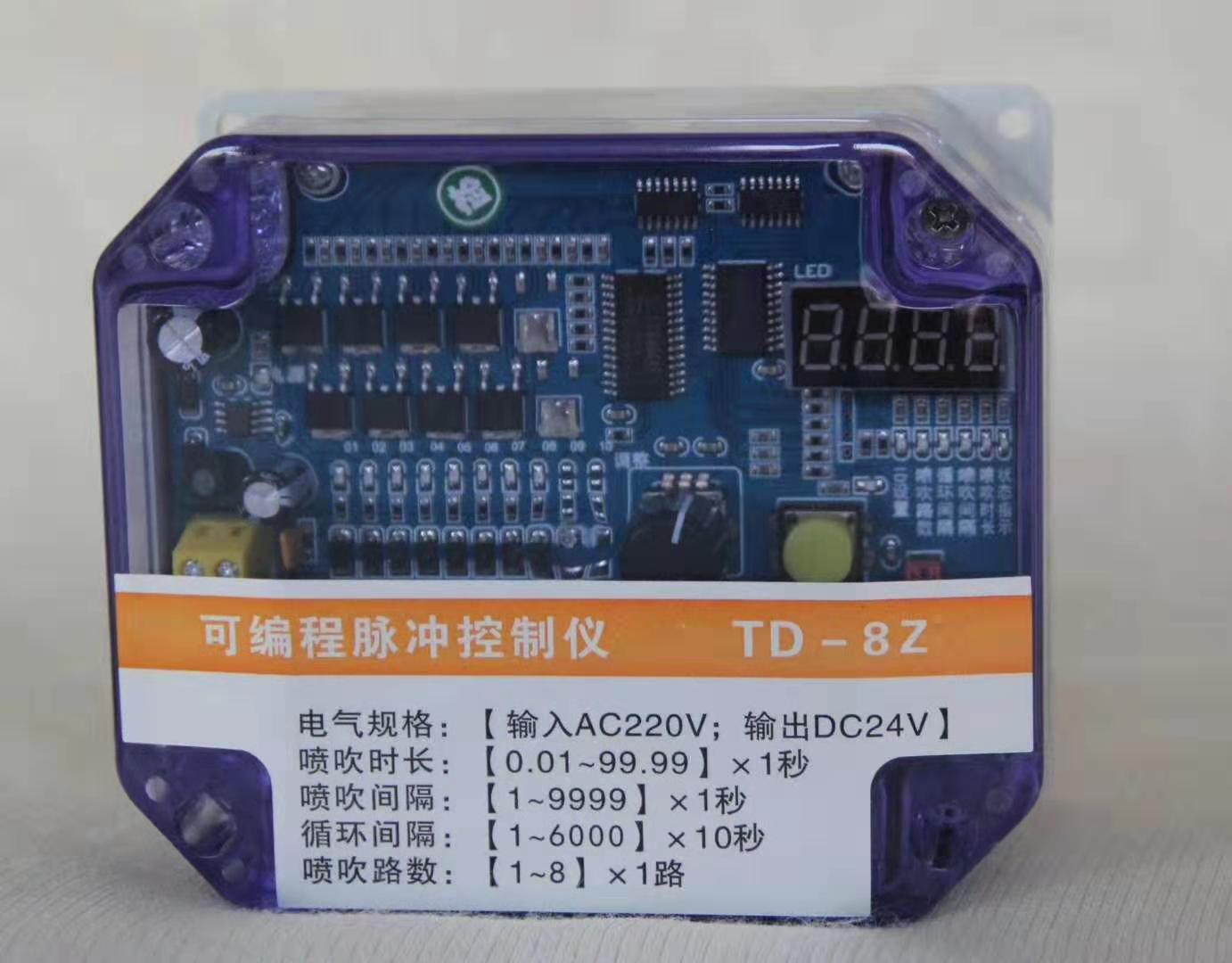

    Programmable Controller


    The flush controller adopts industrial-grade chips as the control core; there are obvious setting signs on the printed circuit board, which can be easily set up; the output side of the controller is provided with the work instructions of each output point, which can quickly judge the output point. The controller is equipped with a manual operation button, which can facilitate the debugging and operation of the equipment; the pulse controller adopts a waterproof shell structure and cooperates with a waterproof connector, which can be used outdoors and in dusty environments; and the pulse controller is equipped with pluggable The special terminal of the printed circuit board can be pulled out for easy wiring.
    The output of each output terminal controls the opening of the electromagnetic pulse valve, and the compressed air is sprayed to clear the dust. At the same time, there are light-emitting diodes to display the spraying sequence. When the dust collector cleans the dust, it sprays and cleans the dust while filtering. The pulse controller outputs electrical signals according to the set pulse width and pulse interval to control the pulse valve to spray the dust one by one.

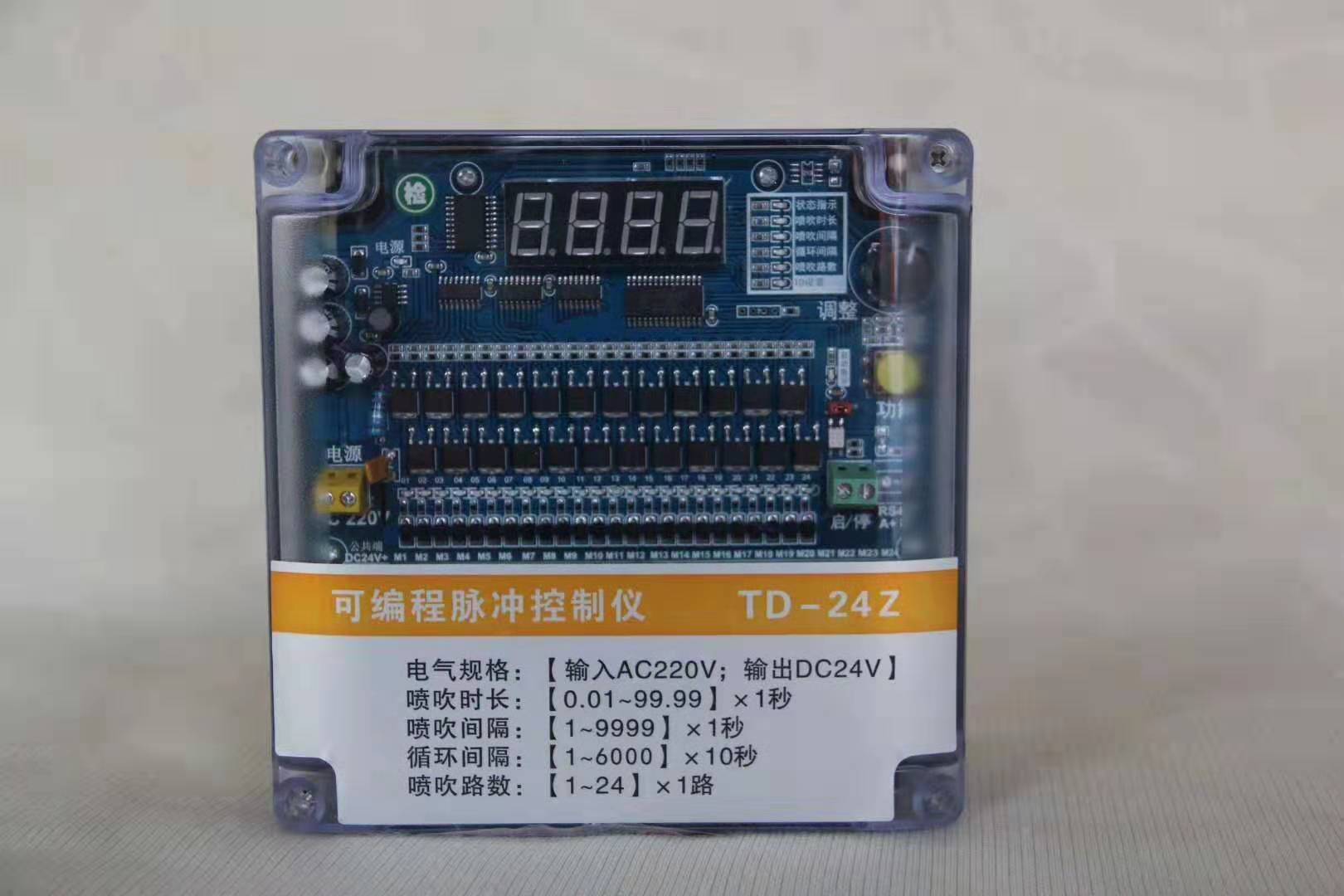

    Pulse Controller
