CLEMCO, Claremont, Clermonk, Clermonk, air-controlled sand control valve, shakeout valve

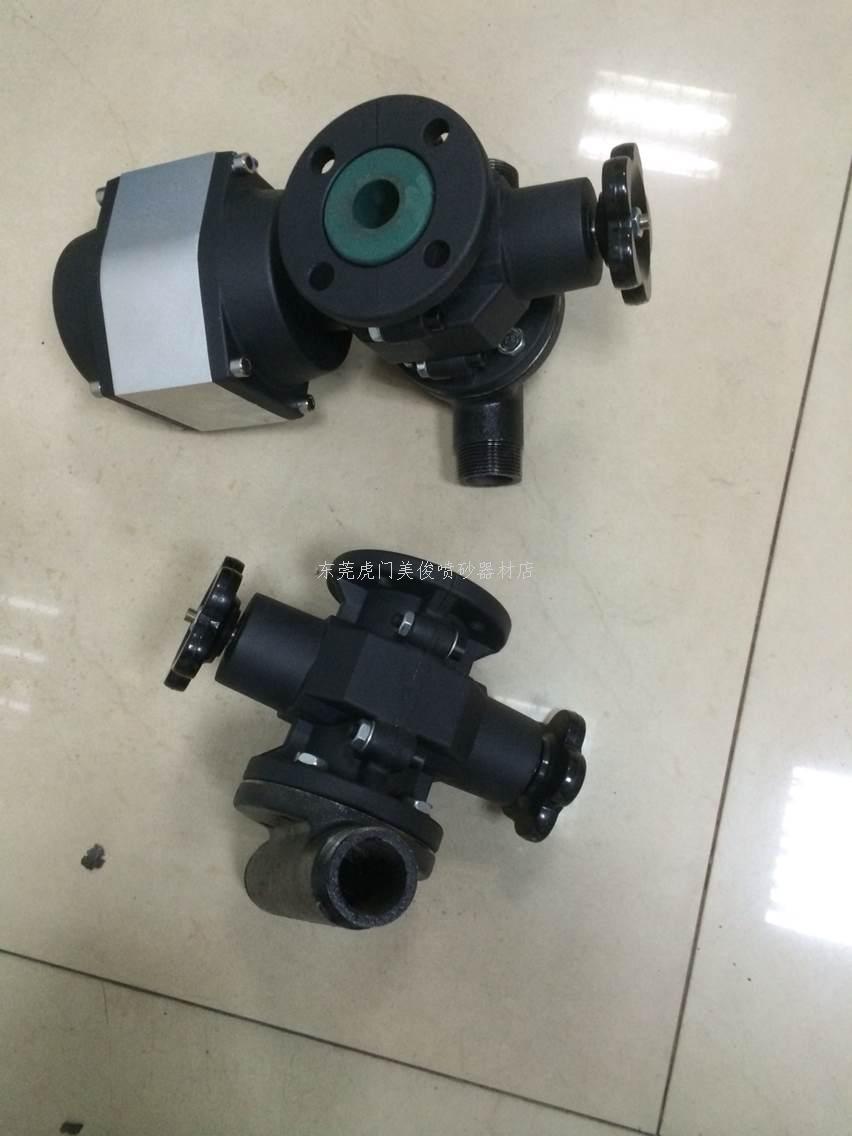

Product Name: c3 Air Control Sand Control Valve    Meijun Code: Q006

Domestic air-controlled sand control valve: the original is clemco's new single belly air-controlled sand control valve

The original single belly gas control sand valve)

After localization, it is changed to C3 air-controlled sand control valve:

The flange size is the same as the imported style, the usage method is the same, and the function is the same. After the imported valve is localized, the cost of use is greatly reduced.

Can use the original imported clemco pneumatic sand valve rubber core.

Maintenance valve: In fact, it is a manual control flow valve, which can be used as a manual sand control valve alone

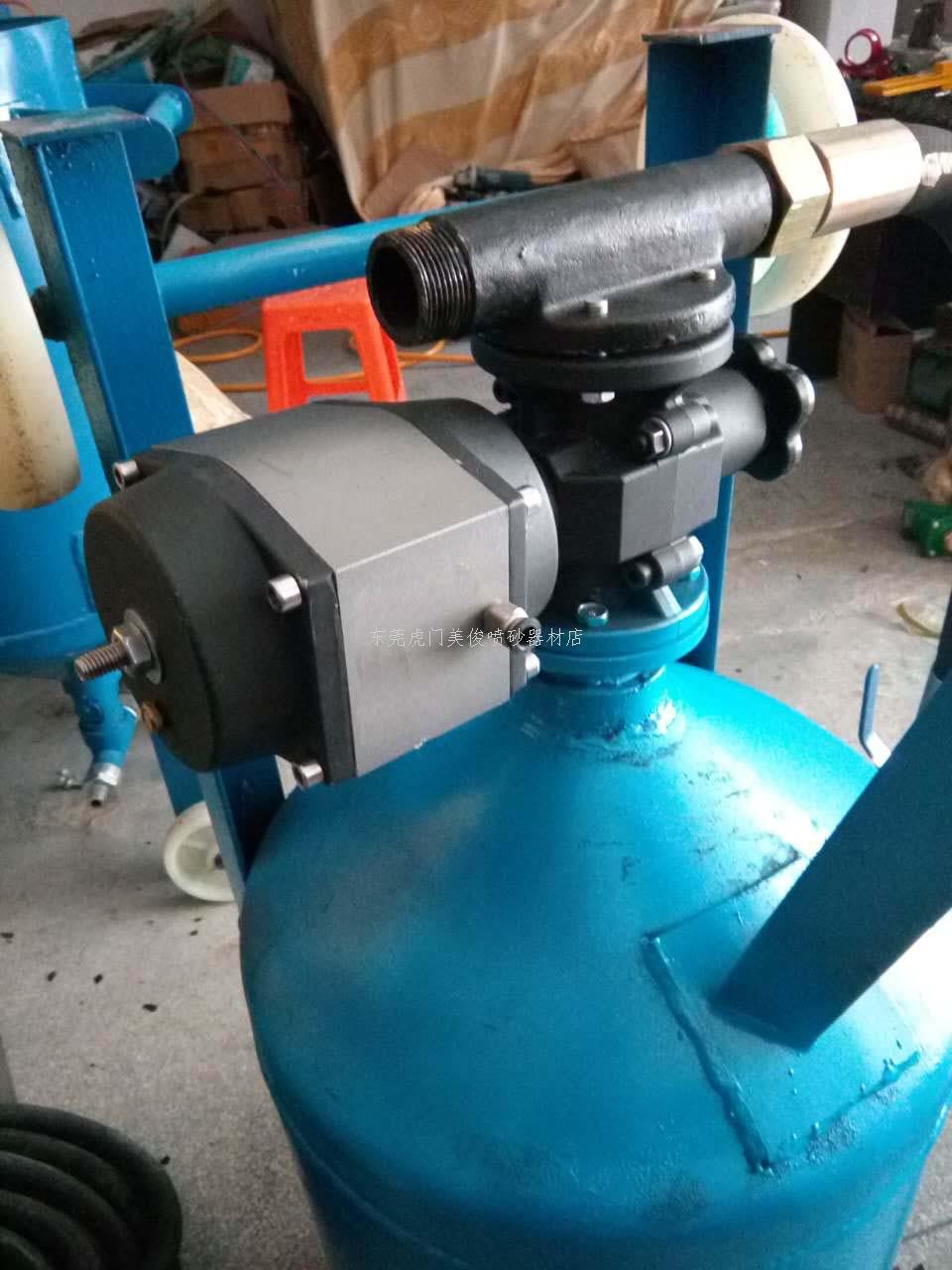

The purpose of installing the maintenance valve on the air-controlled sand control valve:

1) After adjusting the flow and manually adjusting the required sand volume, the air control sand valve below can adjust the sand volume to a large value, so that the air control sand valve does not control the sand volume at all, and the channel is placed very large to reduce wear and tear. , only used as a switch.

2) When the sand valve needs to be repaired, or the sand is blocked for cleaning, etc., the inspection valve can be closed, so that the sand in the tank will not leak out when the air control sand valve is disassembled, so that it can be cleaned after the sand is discharged, saving the maintenance time and avoiding Waste of production time.

CLEMCO, Claremont, Claremont, Claremont, Claremont, gas control sand control valve, shakeout valve, sand control valve
