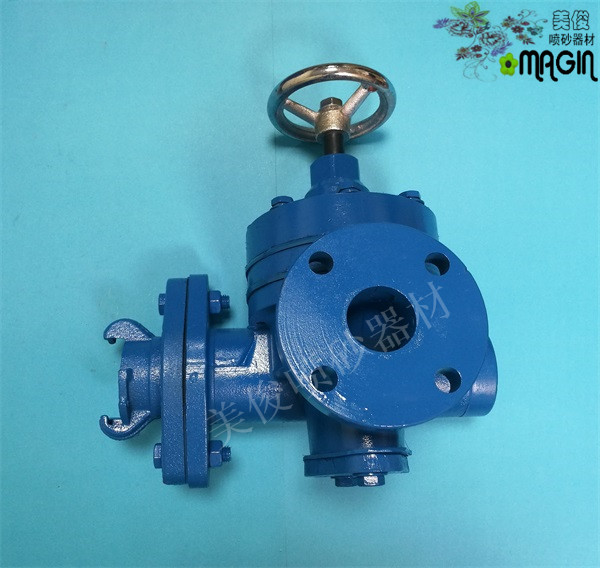

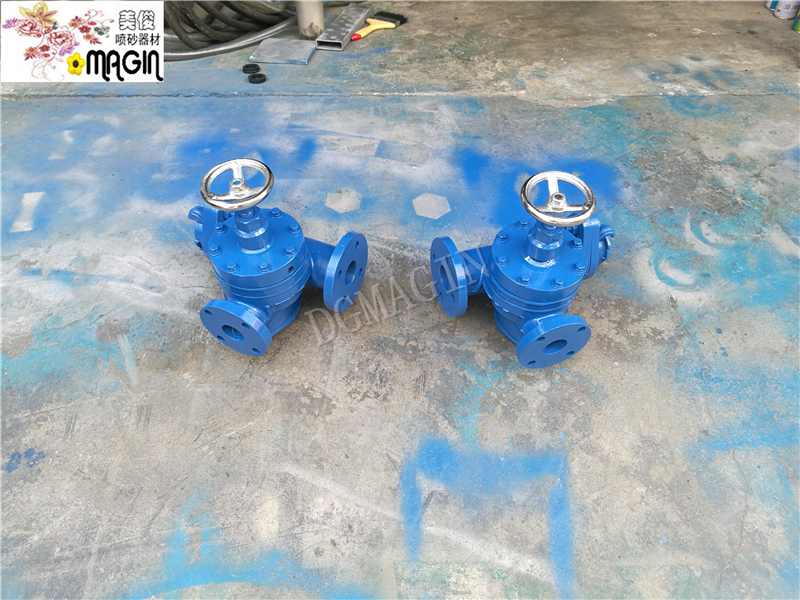

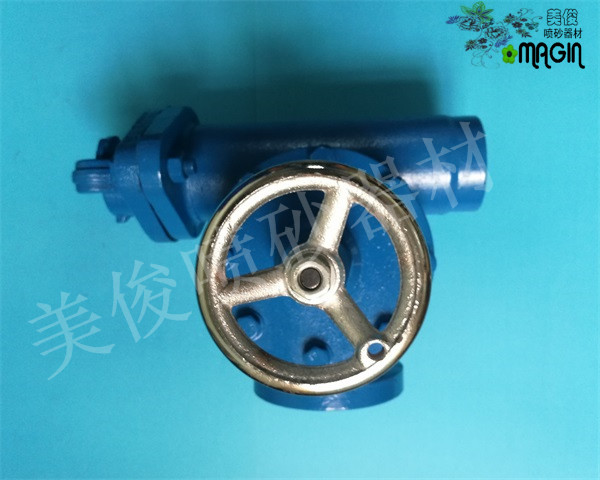

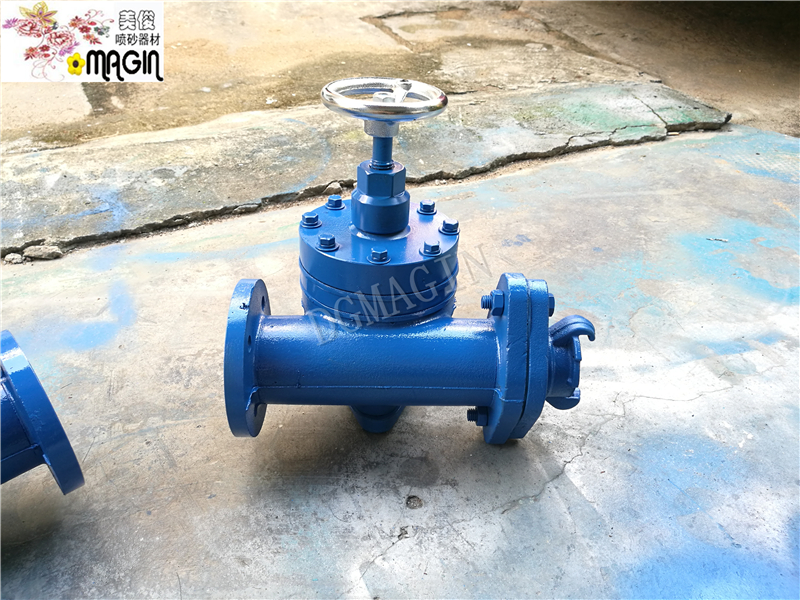

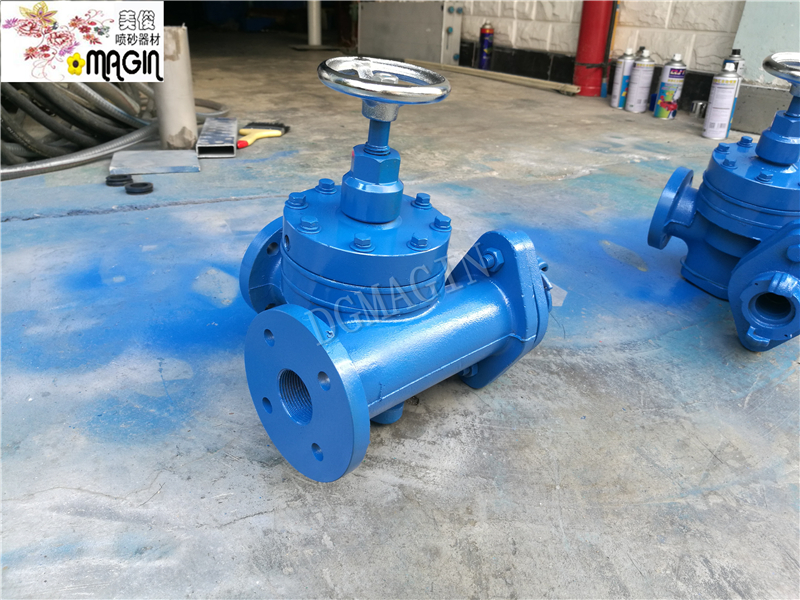

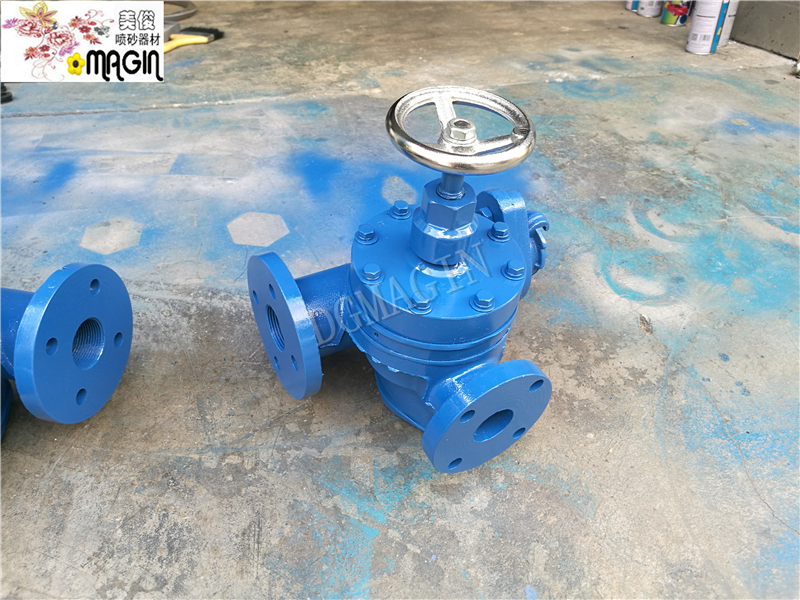

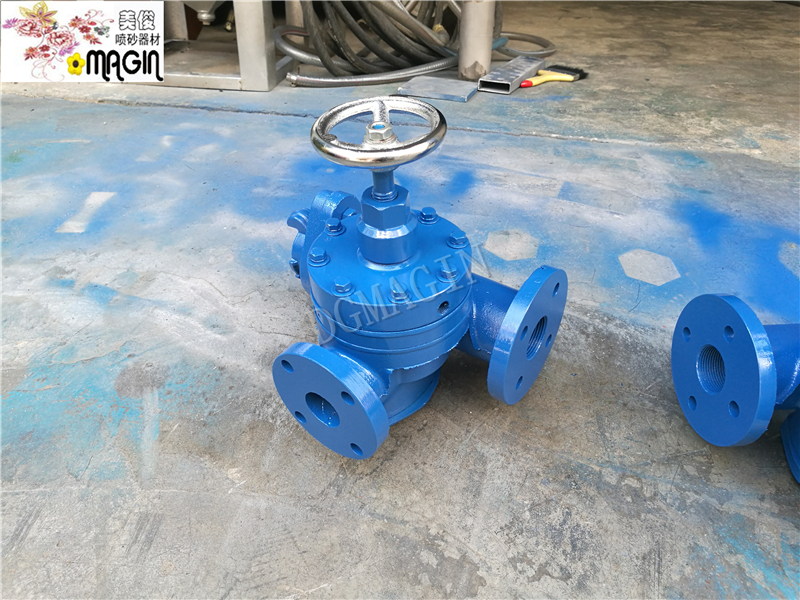

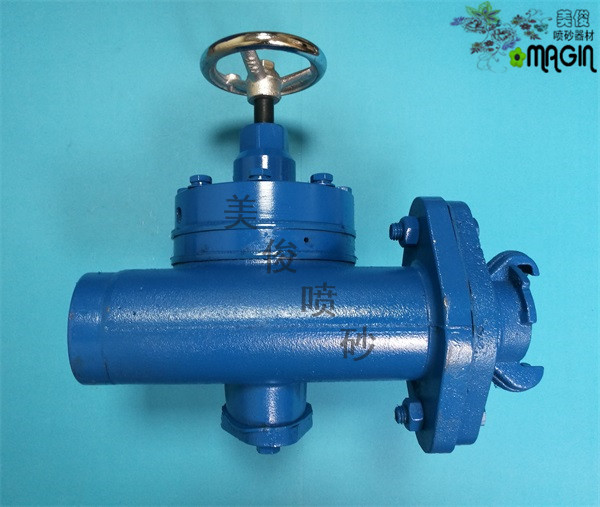

Normally Open Pneumatic Sand ValveMG-Q007

The characteristics of the normally open pneumatic sand control valve are: the sand blasting is opened before ventilation, and closed after ventilation. The upper flange is a 2 inch thread, and the interface It is a 1.2 inch thread, and the sand pipe joint is a long grab quick connection. The inner rubber core is a cylinder, which is an environmentally friendly material. It should be replaced with a new one after wear so that the valve body will not be damaged.

The new standard valve body sand blowing port is not flanged, it is a 1 inch 2 internal thread interface, the customized model, the old one has no flange thread, and the flange internal thread, Divided into left flange, right claw buckle, left claw buckle right flange type.
