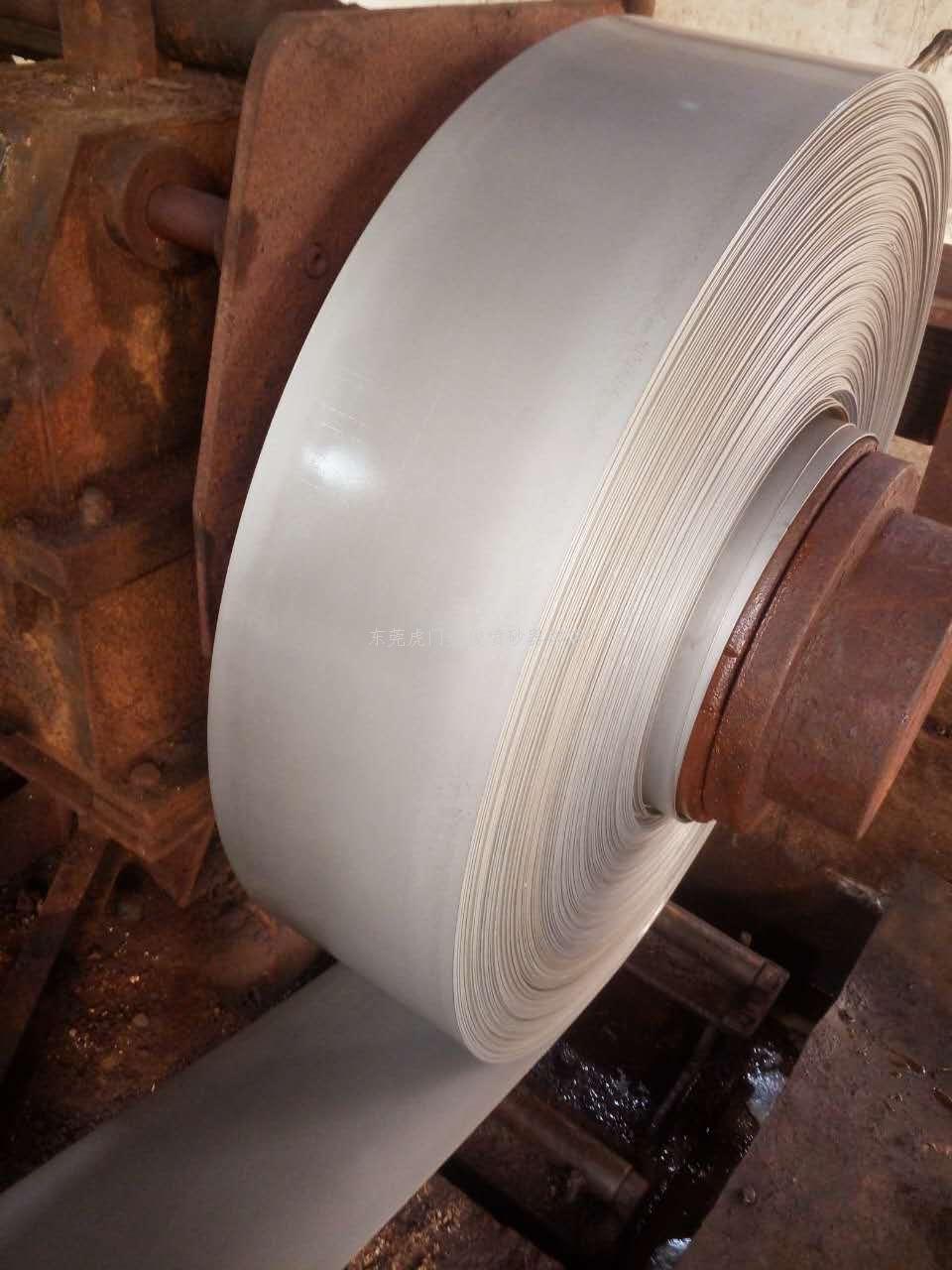

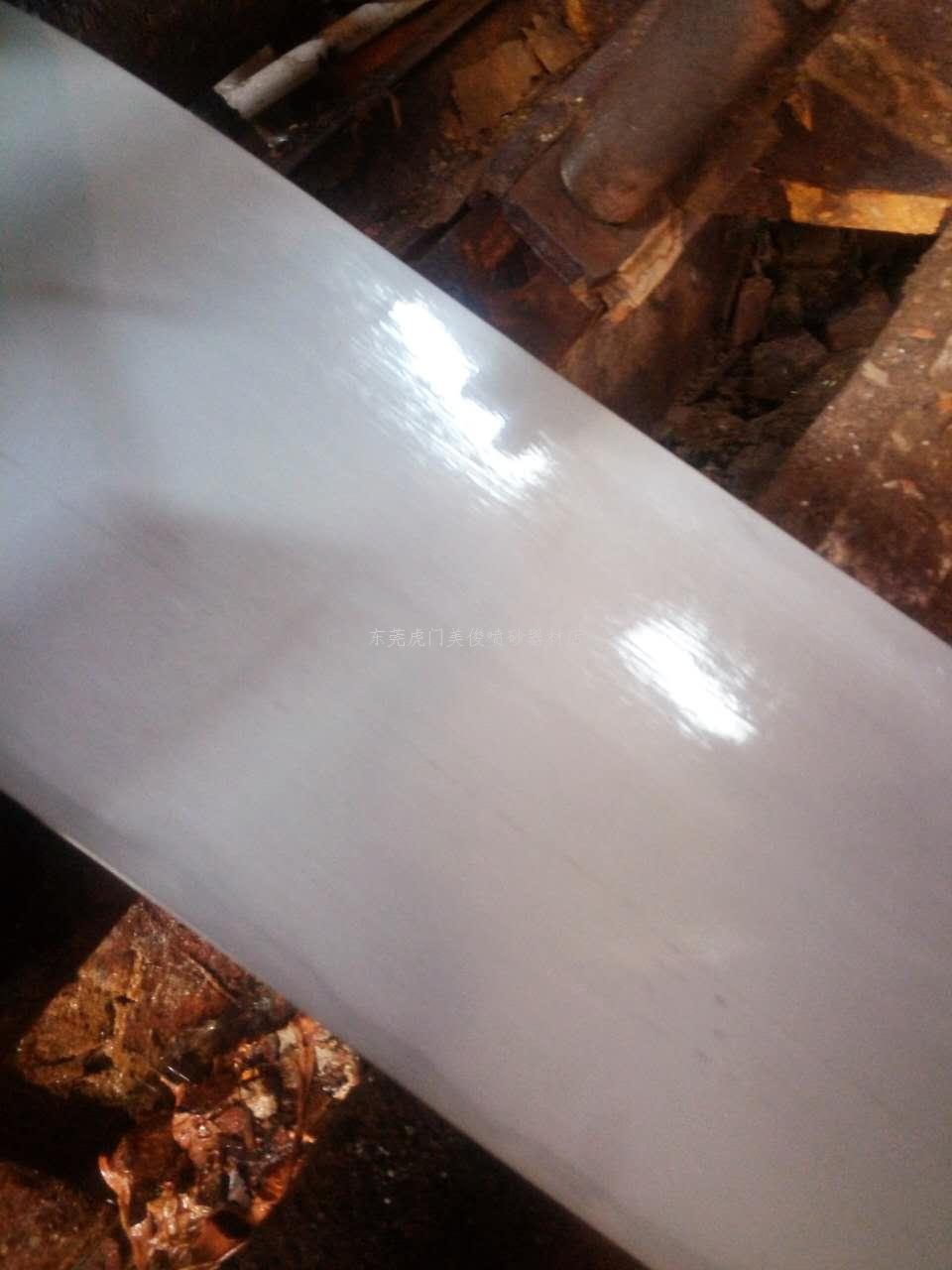

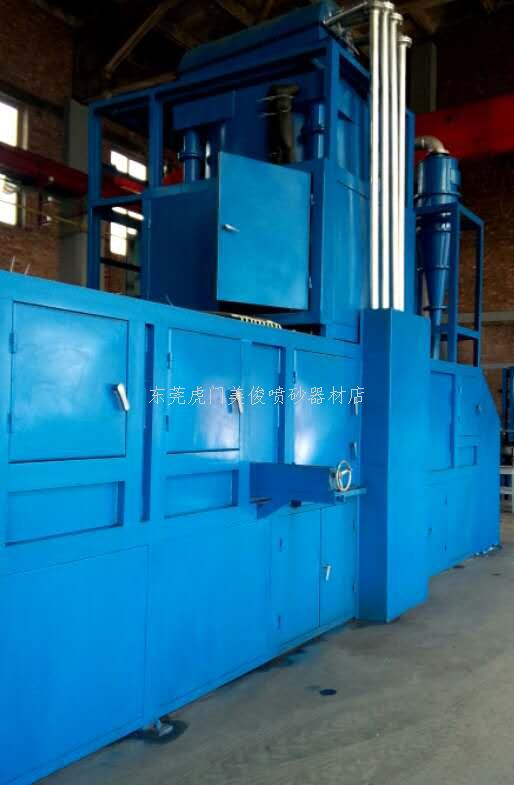

Water sandblasting machine, steel plate rust removal water sandblasting machine, stainless steel plate cleaning sandblasting machine, high pressure water jet sandblasting machine

High pressure water jet sandblasting machine:

Meijun Sandblasting Equipment

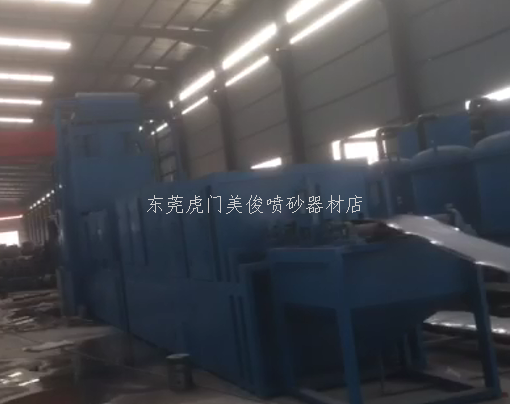

High-pressure water jet sandblasting production line is a new generation of new surface cleaning equipment that integrates high efficiency, energy saving, environmental protection, and automated high technology is the traditional surface A major change in processing techniques

The high-pressure water jet sandblasting machine does not use compressed air,directly uses high-pressure water as power,utilizes the high density of water,strong erosion force, Small compression ratio, not easy to spread, long mortar acceleration time, dust blowing and other characteristics

In principle, the pollution of sandblasting dust is eradicated,greatly improves the surface cleaning quality and cleaning efficiency,and can replace the traditional oil removal, pickling and other large pollution ,to eliminate the production of chemical wastewater,

Catering to the current national policy of vigorously controlling the polluting industry,in terms of performance, environmental protection, energy saving and the surface quality after cleaning are greatly superior to the existing domestic and foreign Indicates the cleaning process , various indicators

The standard reaches the international level, can cover almost all metal and non-metal materials such as machinery,hardware,stone,plate and so on The surface cleaning work of.

High-pressure water jet sandblasting will be the mainstream process of surface cleaning in the future,We welcome your consultation!

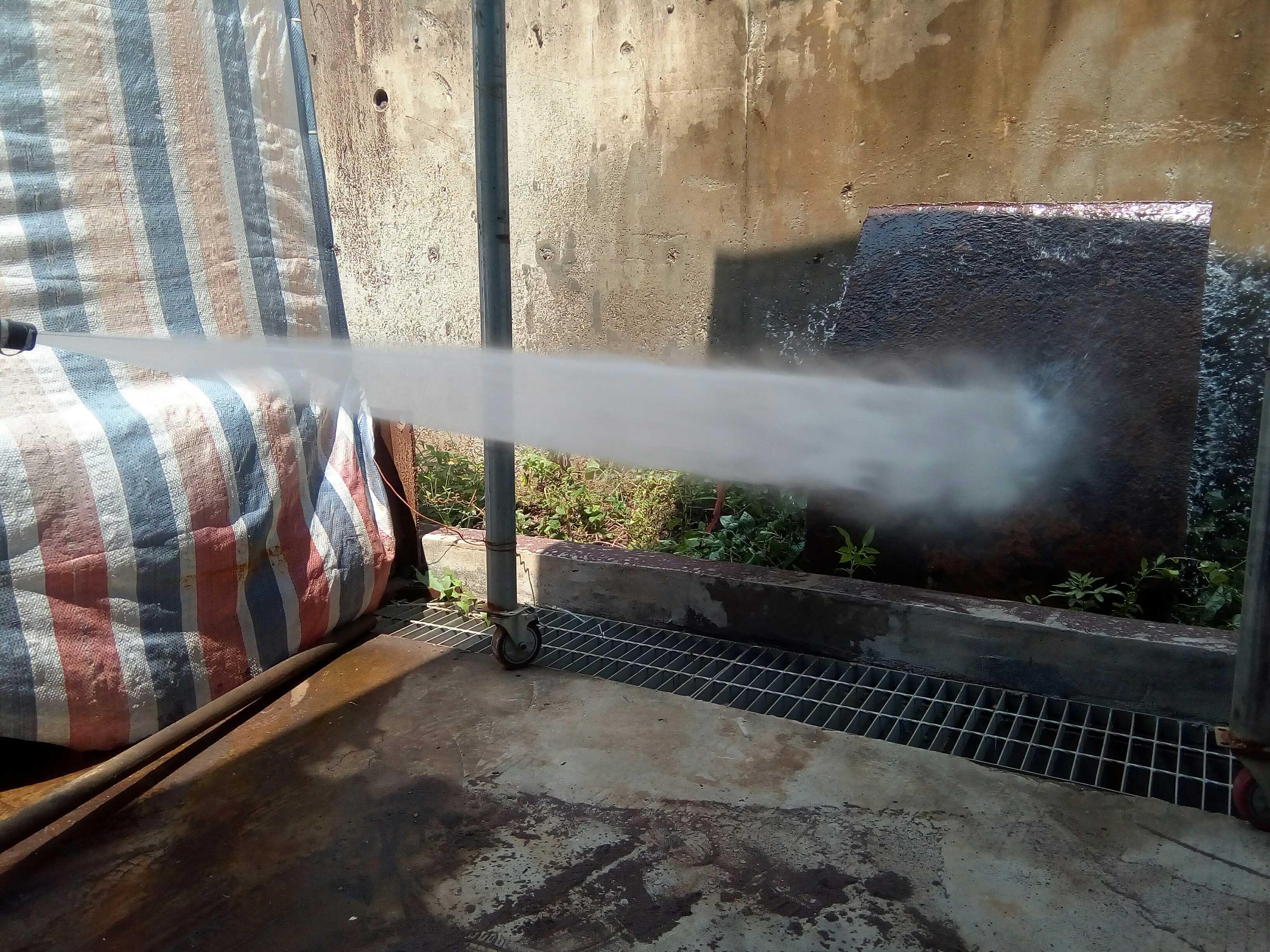

The principle of high-pressure water sandblasting machine uses high-pressure water instead of compressed air as the driving force for abrasives.

The water is efficiently mixed to form a high-energy abrasive flow, which is sprayed to the surface of the workpiece at a high speed. With the help of the blowing, erosion and grinding action of the high-speed abrasive flow, the burrs, oxide scale, oil, rust and salt on the surface of the workpiece are cleaned at one time.

The high-pressure water blast cleaning machine system consists of a water tank, a high-pressure pump, a cleaning mechanism, a sedimentation tank, a sewage filter and an electrical control system.

The sprayed abrasive flows into the collection hopper below the cleaning mechanism, and the coarse and useful abrasive sinks into the bottom of the collection hopper under the action of gravity, and is sucked into the descaling nozzle by the sand suction hose under the action of negative pressure.

Useful abrasives are used repeatedly. Very fine abrasive particles, which are basically ineffective for blast cleaning, flow out from the upper part of the collection bucket under the action of the rising speed of the water flow, and the abrasives are automatically sorted and used repeatedly. upper flow of collecting bucket

The suspended sewage containing fine particles flows into the sedimentation tank through pipelines or ditches. After sedimentation in the sedimentation tank, it is pumped into the sewage filter by the sewage pump and filtered. , press into the water tank for the high-pressure pump to circulate.

one:Principle

MAGIN-C type

Multi-station high-pressure water jet automatic cleaning sandblasting machine uses high-pressure water instead of compressed air as the driving force for abrasives(traditional sandblasting machines use high-pressure air as the driving force The negative pressure generated by the high-speed jet of high-pressure water through the special nozzle head automatically sucks the abrasive and mixes it with the high-pressure water efficiently,forms a high-energy abrasive flow, high-speed jet.by the impact, erosion, grinding and other effects of high-speed abrasives, remove the oxide scale, oil, rust, salt, paint, etc. The foreign matter belonging to the workpiece body material can be cleaned at one time,to achieve the purpose of sandblasting.

At the same time, use different materials abrasives with different particle sizes under different pressure modes to form different impact texture or roughness on the workpiece surface , in order to achieve the water flushing surface of stone ceramic tile and other types of workpieces (Millennium weathering effect), water spray Wash face, water sandblasted face and other bright colors,even,beauty effect with delicate touch.

The abrasive flow after jetting enters the collection bucket below the sandblasting machine with the water flow,The particle size is coarse, The valuable abrasive sinks into the bottom of the collection bucket under the action of gravity and is sucked into the sand blasting gun again by the fine sand hose under the action of negative pressure for sand blasting, crushed The powdered abrasive is discharged from the sewage outlet with the water flow.

Automatic abrasive recycling,reuse,cycle blasting,more economical than dry blasting, Abrasive up to 40%.

Two:features

1:Using high-pressure water as a power source,no dust is generated in the operation,completely eradicated the pollution of dust to the environment and the harm to workers' health ,The cleaning level reaches SA3.0 level

2:The surface is cleaned thoroughly,the surface of the workpiece after cleaning is free of oil, no attachments, and roughness,the subsequent anode, electroplating, and spraying are combined Strong

3:The cleaning speed is extremely fast,Compared with traditional dry air blasting under the same power,the efficiency is improved3-4times,the workpiece surface is uniform and consistent after sandblasting

4:Abrasive siphon negative pressure automatic supply,repeated use,less loss,economical ,Easy to operate,Reliable

5:Automate the recovery and sorting of abrasives

6:Blasting water,recycled ,repeatedly used abrasive,2000 fine sand can achieve dry blasting 200 mesh effect,Cost price is about 40% lower;

7:Working pressure can be adjusted, abrasive thickness can be selected , cleaning parameters can be automatically set and adjusted, can be Adapt to workpieces of different materials , adapt to different machining accuracy requirements, cover the current sandblasting 90% processing technology.

High Pressure Water Jet Sandblasting (Pill) Machine Functions and Features:

1. No dust is generated during operation, which eliminates the pollution of dust to the environment and the harm to workers' health. Cleaning quality reaches Sa2.5 level,

2. The surface is clean and thorough, the surface is free of oil, no attachments, and the bonding force of electroplating and spraying is strong.

3. Assembly line station layout, single station continuous sandblasting, cleaning, single station loading and unloading;

4. Mechanical rocker transmission mechanism, accurate positioning. The system is simple, reliable, and easy to operate and maintain.

5. The nozzle swings and sprays for cleaning, and the surface consistency is good.

6. The swing and spray angle can be adjusted arbitrarily, with high utilization rate and strong adaptability.

7. Abrasive negative pressure self-priming supply, repeated use, low consumption; simple, stable and reliable.

8. Automatically complete the recovery and sorting of abrasives.

9. The water is recycled and the abrasive is used repeatedly.

10. The working pressure is adjustable, the abrasive is optional, and the cleaning parameters can be automatically set and adjusted, which can adapt to different materials and different precision requirements.

11. The installation of the equipment is convenient and simple, and it can be installed directly on the production line without a separate workshop.
